YT 42 LS (960430190-00) - Husqvarna 42" Yard Tractor (2013-12) MOWER DECK / CUTTING DECK Parts Diagram

42" Yard Tractor

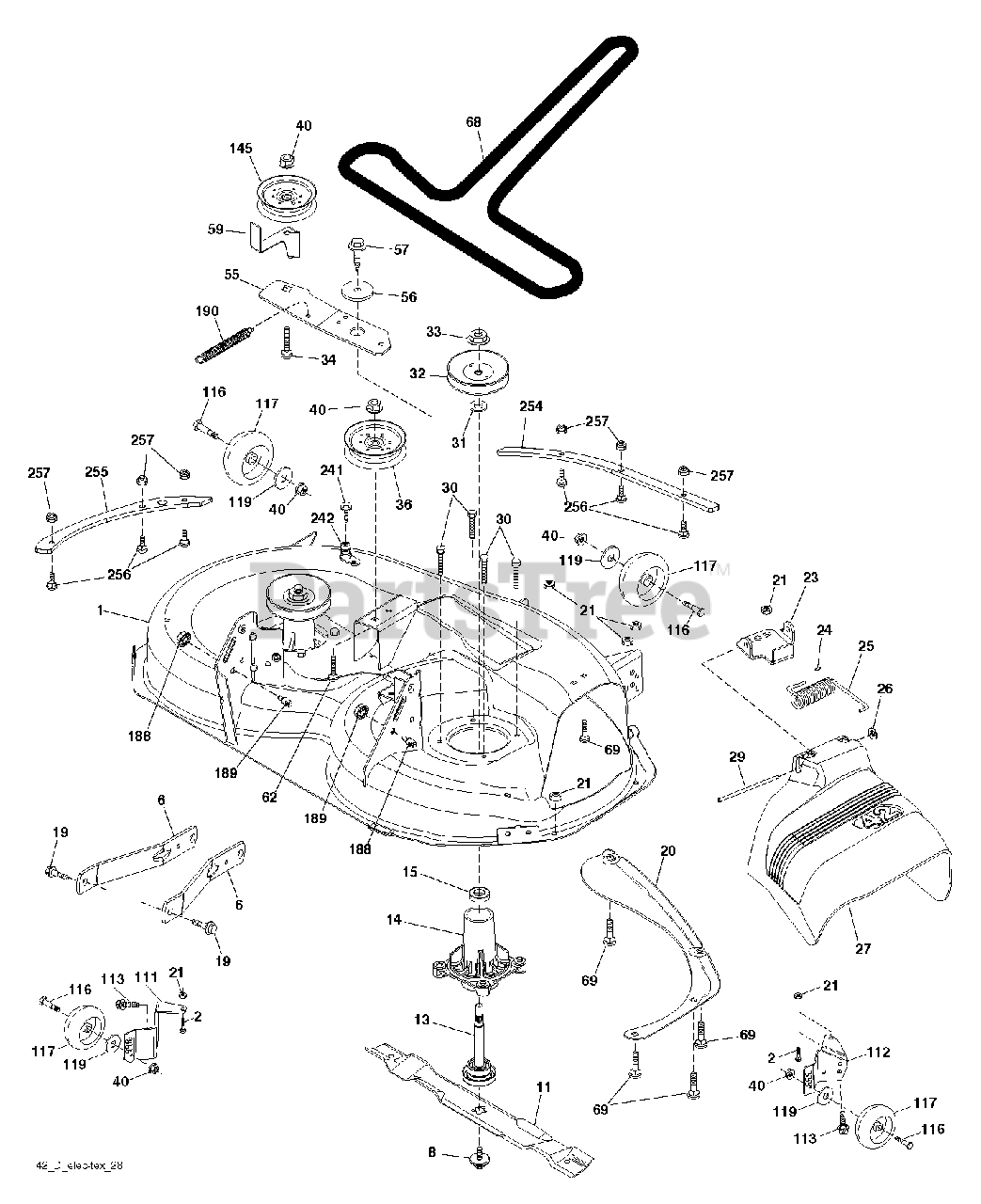

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Husqvarna 532441275

DECK.SVC.42"2GW
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

BOLT 5/16-18 X3/4 ZN/YEL GR 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532138971

42" HI-LIFT BLADE

$20.99

$

In Stock, Qty 20+

0

13

Husqvarna 532192870

RB MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

14

Husqvarna 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

15

$13.99

$

In Stock, Qty 11

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

20

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$44.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 14

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532437110

IDLER.ARM.42"

$

$

Not available

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

111

Husqvarna 532404784

BRKT.WHEEL.GAUGE.LH.42"

$12.99

$

In Stock, only 1 left!

0

112

Husqvarna 532404785

BRKT.WHEEL.GAUGE.RH.42"

$10.99

$

Usually ships in 3-10 days

0

113

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

116

Husqvarna 532124842

BOLT M
(Superseded to 532004898)

$

$

Not available

117

Husqvarna 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$11.99

$

In Stock, Qty 8

0

119

Husqvarna 819121414

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

190

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

Usually ships in 3-10 days

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

254

Husqvarna 585316805

PLATES.RENFRC.42DECK.PT431FRNT

$13.99

$

In Stock, only 1 left!

0

255

Husqvarna 585317005

PLATES.RENFRCE.42DECK.X431SIDE

$13.99

$

Usually ships in 3-10 days

0

256

Husqvarna 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

257

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

--

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

--

Husqvarna 532192870

RB MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

--

Husqvarna 586449701

DECK.SVC.42B.E.4GWB.TEX.668
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0
