YT 42 DXLS - Husqvarna 42" Yard Tractor (Original) ENGINE Parts Diagram

42" Yard Tractor

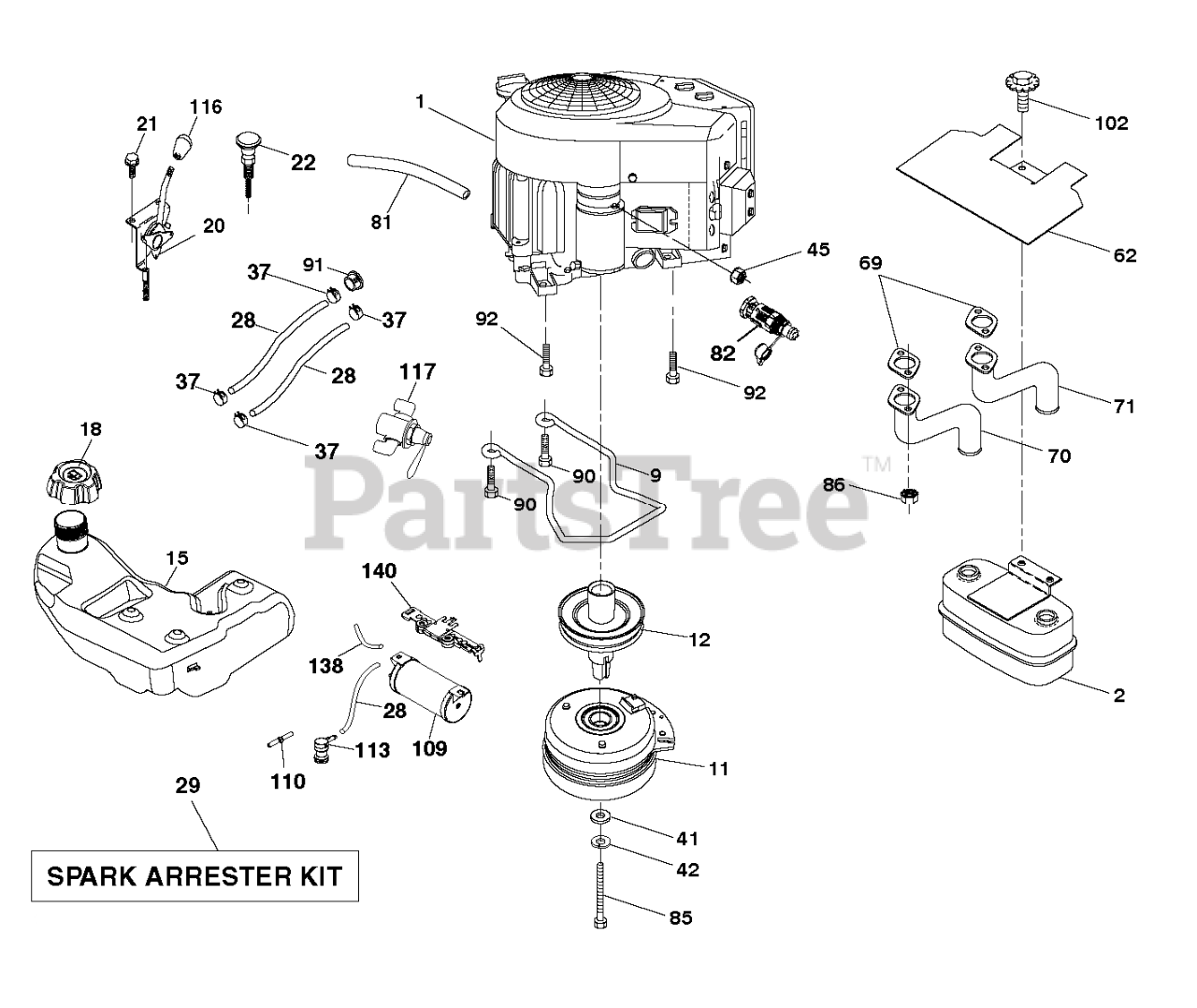

ENGINE Parts Diagram

  • Title

11

Husqvarna 587255001

CLUTCH. 5.0 PD. 2.5 OFFSET

$278.99

$

In Stock, only 1 left!

0

109

Husqvarna 585977401

CANISTER CARB, FLEX TECH, 6.3

Note: For 96043028100, 2017-11 & 96043026300, 2017-09

$48.99

$

Usually ships in 3-10 days

0

1

000000000

Note: Engine KT725-3021 (585476901) For For 2015 & 96048008400, 96043020400

$

$

Not available

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: For 96043028100, 2017-11, 96043028000, 2017-11, 96043020401, 2015-07, 96043020301, 2015-06 & 96048008400, 2014

$37.99

$

In Stock, Qty 11

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$47.99

$

In Stock, only 2 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

Note: For 2015 & 2014 models

$18.99

$

In Stock, Qty 20+

0

1

000000000

Note: Engine FR651V-AS28 (581411101) For 96043028100, 2017-11 & 96043028000, 2017-11 & 2016 models

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

Note: For 96043026200, 2017-11 & 96043026300, 2017-09 & 2016 models

$93.99

$

In Stock, only 2 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

69

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

Note: For 96043028100, 2017-11 , 96043028000, 2017-11, 96043020401, 2015-07, 96043020301, 2015-06 & 96048008400, 2014

$

$

Not available

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

Note: For 96043026200, 2017-11, 96043026300, 2017-09 & For 96043020401, 2015-07, 96043020400, 2014

$37.99

$

In Stock, only 2 left!

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

Note: For 96043028100, 2017-11 & 96043026300, 2017-09

$27.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

20

Husqvarna 532426184

CONTROL.THROTTLE.PRO.KOHLER

Note: For 2014 models

$93.99

$

Usually ships in 3-10 days

0

12

Husqvarna 586899601

PULLEY.EXTENDED.SHAFT.GROUND

$34.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 14

0

70

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

Note: For 96043028100, 2017-11, 96043028000, 2017-11, 96048008401, 2015-07 & 96048008400, 2014

$22.99

$

In Stock, Qty 16

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 5

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX

Note: For 96043028100, 2017-11 & 96043026300, 2017-09

$

$

Not available

71

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

Note: For 96043028100, 2017-11, 96043028000, 2017-11, 96043020401, 2015-07, 96043020301, 2015-06 & 96048008400, 2014

$20.99

$

In Stock, Qty 13

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

Note: For 96043026200, 96043028000, and all 2016, 2015, & 2014 models

$20.99

$

In Stock, only 1 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$51.99

$

In Stock, Qty 7

0

1

000000000

Note: Engine kaWA FR561V-AS28R (593006001) (Order parts from engine manufacter)

$

$

Not available

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck. For 2017, 2016, 2015 models & 96043020300, 96043020400

$20.99

$

In Stock, only 4 left!

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

$

$

Not available

140

Husqvarna 585977301

BRACKET BRACKET, CARBON CAN, F

Note: For 96043028100, 2017-11 & 96043026300, 2017-09

$6.99

$

Usually ships in 3-10 days

0

18

Husqvarna 584248701

CAP.ASSY.FUEL.3".N-EPA.BLK.428

Note: Fits 2.75" filler neck. For 96048008400, 2014

$17.99

$

Usually ships in 3-10 days

0

20

Husqvarna 587631703

THROTTLE.KOHL.PRO.#88PAD_46"

Note: For 96043028100, 2017-11 & 96043028000, 2017-11 & 2015 models

$31.99

$

Usually ships in 3-10 days

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: For 96043026200, 2017-11 & 96043026300, 2017-09. All 2016 models, 96043020301, 2015-06 & 96043020400, 2014

$37.99

$

In Stock, only 3 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

42

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

15

Husqvarna 532438022

TANK.ASM.FUEL.4R.GAL.EPA.18
(Superseded to 529999002)

Note: Fits 2.75" filler neck

$284.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532178151

GASKET

Note: For 96043026200, 2017-11, 96043026300, 2017-09, 96048008401, 2015-07, 96043020300, 2014 & 96043020400, 2014

$2.49

$

In Stock, Qty 20+

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 20+

0

138

Husqvarna 532414119

RP PURGE LINE
(Superseded to 532448562)

Note: For 96043028100, 2017-11, 96043026300, 2017-09 & 96043022100, 2016-01, 96043020401, 2015-07 & 96043020400, 2014

$

$

Not available

28

Husqvarna 587044864

HOSE 1/4" LOW PERMEATION FUEL

Note: For 96043028100, 2017-11, & 96043026300, 2017-09

$20.99

$

In Stock, only 1 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 2 left!

0

85

Husqvarna 501606701

BOLT.HEX.7/16-20X5.GR5.GREEN

$9.49

$

In Stock, only 2 left!

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$20.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 20+

0

1

000000000

Note: Engine FR691-ES15 (581557501) For 96043020300, 2014-10

$

$

Not available

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

Note: For 96043028100, 2017-11, 96043028000, 2017-11, 2015 models, 96048008400, & 96043020300

$40.99

$

In Stock, Qty 16

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 3 left!

0
