YT 42 DXLS - Husqvarna 42" Yard Tractor (Original) ELECTRICAL Parts Diagram

42" Yard Tractor

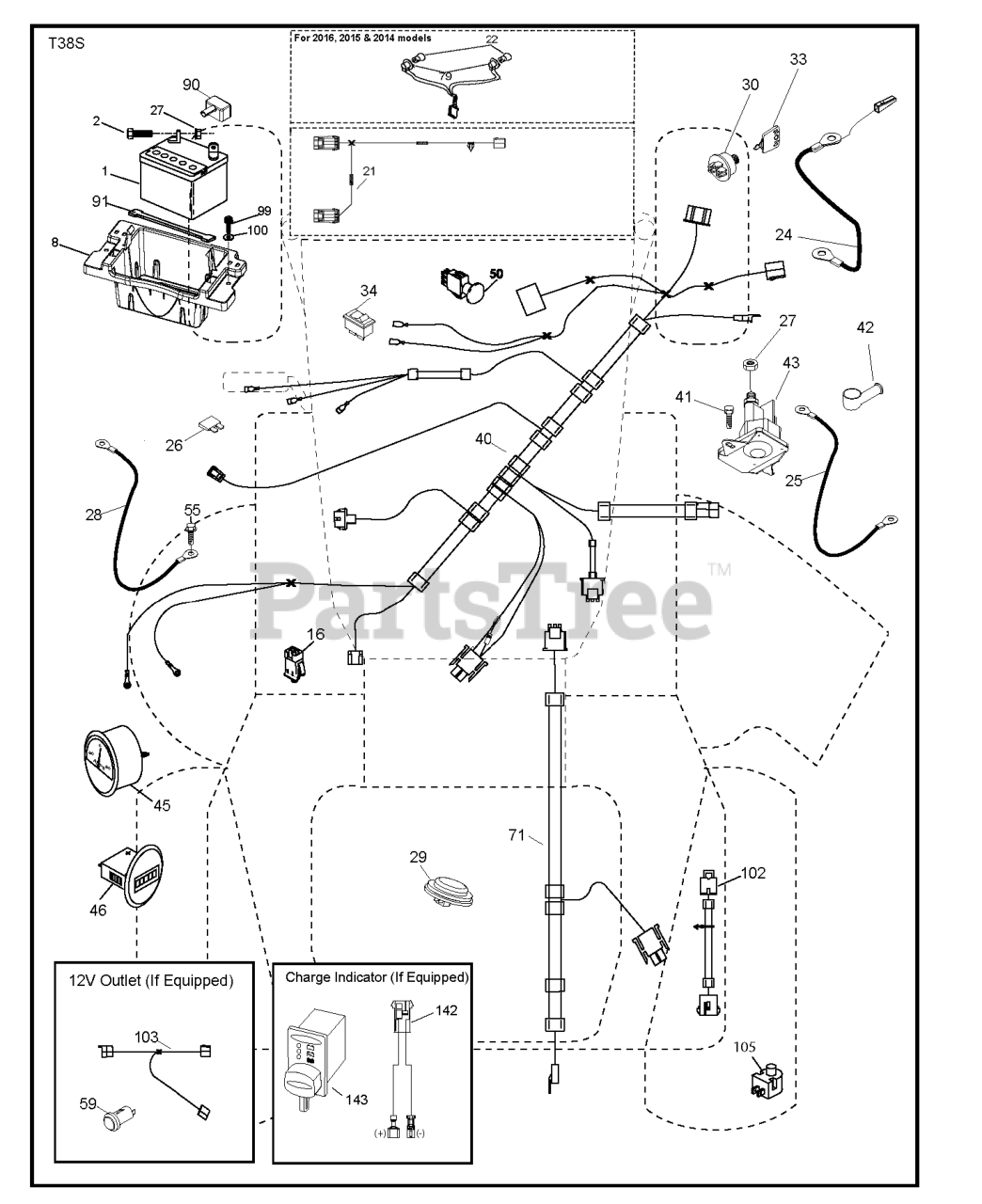

ELECTRICAL Parts Diagram

  • Title

40

Husqvarna 501133101

HARNESS.IGN.DSH.W112V.WPORTWIR

Note: For 2017, 2016, 2015 models & 96043020300, 2014 & 96043020400, 2014

$68.99

$

In Stock, only 1 left!

0

1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

24

Husqvarna 585555601

CABLE.FRBATT.W/WIRE.8GA.8

$9.49

$

In Stock, only 2 left!

0

105

Husqvarna 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0

46

Husqvarna 587554003

GAUGE.HOUR.METER.SILVER/WHITE

$51.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

LIGHTBULB

Note: For 2016, 2015 & 2014 models

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

79

Husqvarna 532175242

BULB HOLDER ASM.

Note: For 2016, 2015 & 2014 models

$18.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585555501

CABLE.STARTER.8GA.17.5

$9.49

$

In Stock, only 2 left!

0

40

Husqvarna 532402167

HARNESS IGN. DASH

Note: For 96048008400, 2014

$133.99

$

Usually ships in 3-10 days

0

100

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

142

Husqvarna 583857801

CHARGE.PORT.PIGTAIL HARNESS
(Superseded to 583593501)

$37.99

$

In Stock, only 1 left!

0

71

Husqvarna 532194276

HARNESS-CHASSIS SUB

$40.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532416588

CABLE.GROUND.21"BLK.8GA.90T

$13.99

$

In Stock, only 2 left!

0

33

Husqvarna 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

143

Husqvarna 532448059

CHARGE.PORT
(Superseded to 583593501)

$37.99

$

In Stock, only 1 left!

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 587210601

TRAY.BATTERY.BOX.FRONT

Note: For 96043026200, 2017-11, 96043028100, 2017-11, & 96043026300, 2017-09

$51.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 587205101

TRAY.BATTERY BOX.FRONT

Note: For 96043028000, 2017-11

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

50

Husqvarna 582107601

SWITCH.PTO.8TERMINAL.STD.BLK

$28.99

$

In Stock, only 4 left!

0

21

Husqvarna 585436401

HARNESS LIGHT ASSY TRACTOR,

$26.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, only 4 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

91

Husqvarna 532190270

STRAP.BATTERY.MOUNT.FRONT(2 2)

Note: For 96043020401, 2015-07 & 96043020400, 2014

$9.99

$

In Stock, Qty 13

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 587553903

GAUGE.AMMETER.SILVER/WHITE

$

$

Not available

59

Husqvarna 532400303

OUTLET.12-VOLT

$27.99

$

Usually ships in 3-10 days

0

103

Husqvarna 532421747

HARNESS.PIGTAIL.12V.OUTLET.

$21.99

$

Usually ships in 3-10 days

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

Usually ships in 3-10 days

0

43

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0
