YT 42 DXLS (960430203-00) - Husqvarna 42" Yard Tractor (2014-10) MOWER DECK / CUTTING DECK Parts Diagram

42" Yard Tractor

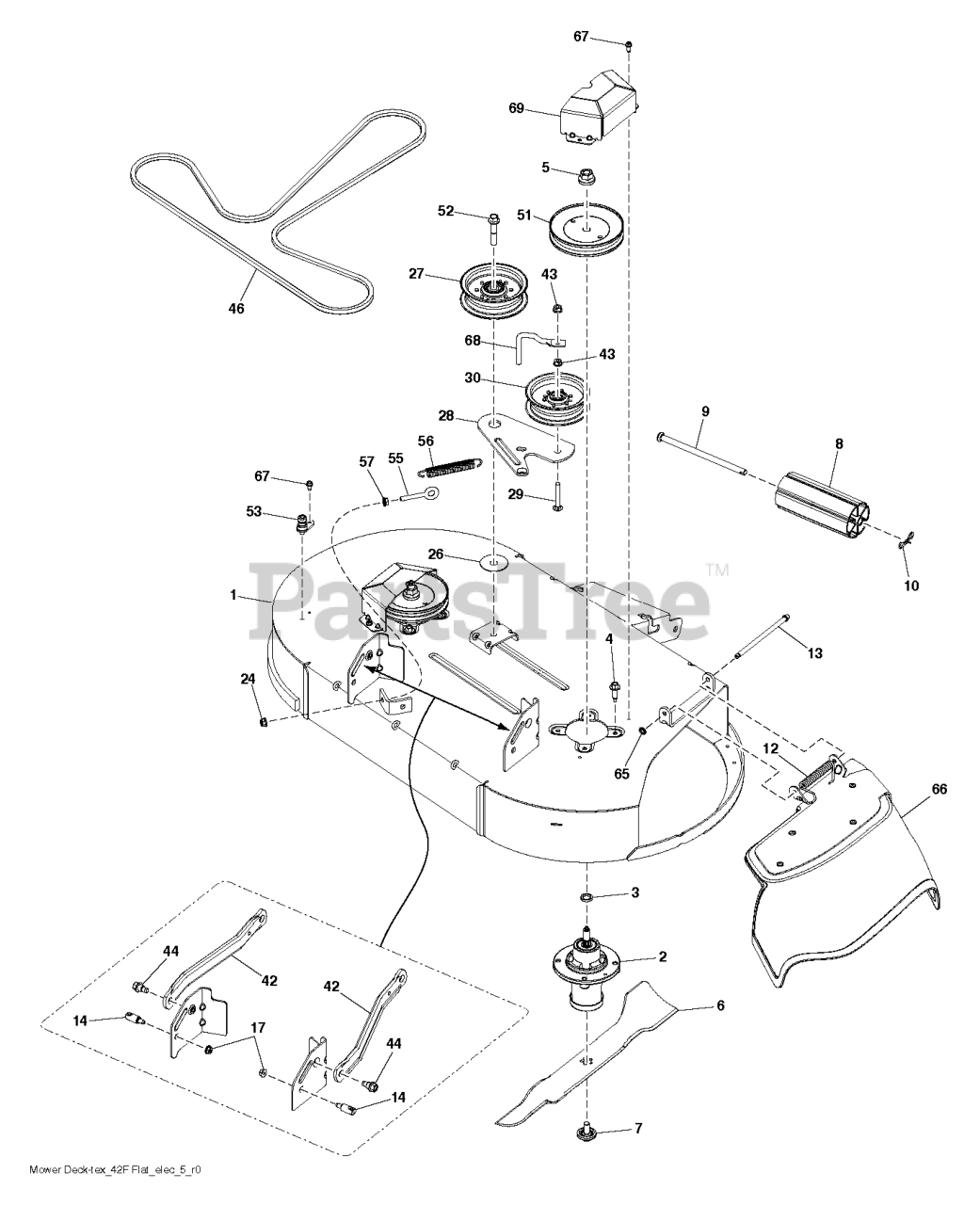

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

27

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 19

0

55

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

28

Husqvarna 586874002

ARM.42"FCS.CLUTCHING.X431

$20.99

$

Usually ships in 3-10 days

0

46

Husqvarna 587270101

BELT.42.FCS.TRACTOR.DECK.DRIVE

$51.99

$

In Stock, only 2 left!

0

13

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

12

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 10

0

9

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

53

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

6

Husqvarna 586918101

BLADE.42.FCS.BAGGING.BLADE.RAW
(Superseded to 586918102)

$31.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

57

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

4

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

69

Husqvarna 586936802

COVER.42".MANDREL.FCS X668

$9.49

$

In Stock, only 2 left!

0

14

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

24

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

7

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532199791

PULLEY MANDREL 5.0"

$31.99

$

In Stock, only 2 left!

0

56

Husqvarna 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV
(Superseded to 532197251)

$11.99

$

In Stock, only 2 left!

0

67

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

52

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

--

Husqvarna 587939201

DECK.ASM.SVC.42F.EL.GW.WP.668
(Superseded to 590520801)

$2735.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

42

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

10

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 589029002

DECK SVC.42F.668
(Superseded to 587939001)

$1030.99

$

Usually ships in 3-10 days

0

66

Husqvarna 587305701

DEFLECTOR.ASM.42.FCS.ORANGE

$87.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

68

Husqvarna 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0
