YT 42 (96043019600) - Jonsered Yard Tractor (2014-10) ENGINE Parts Diagram

Yard Tractor

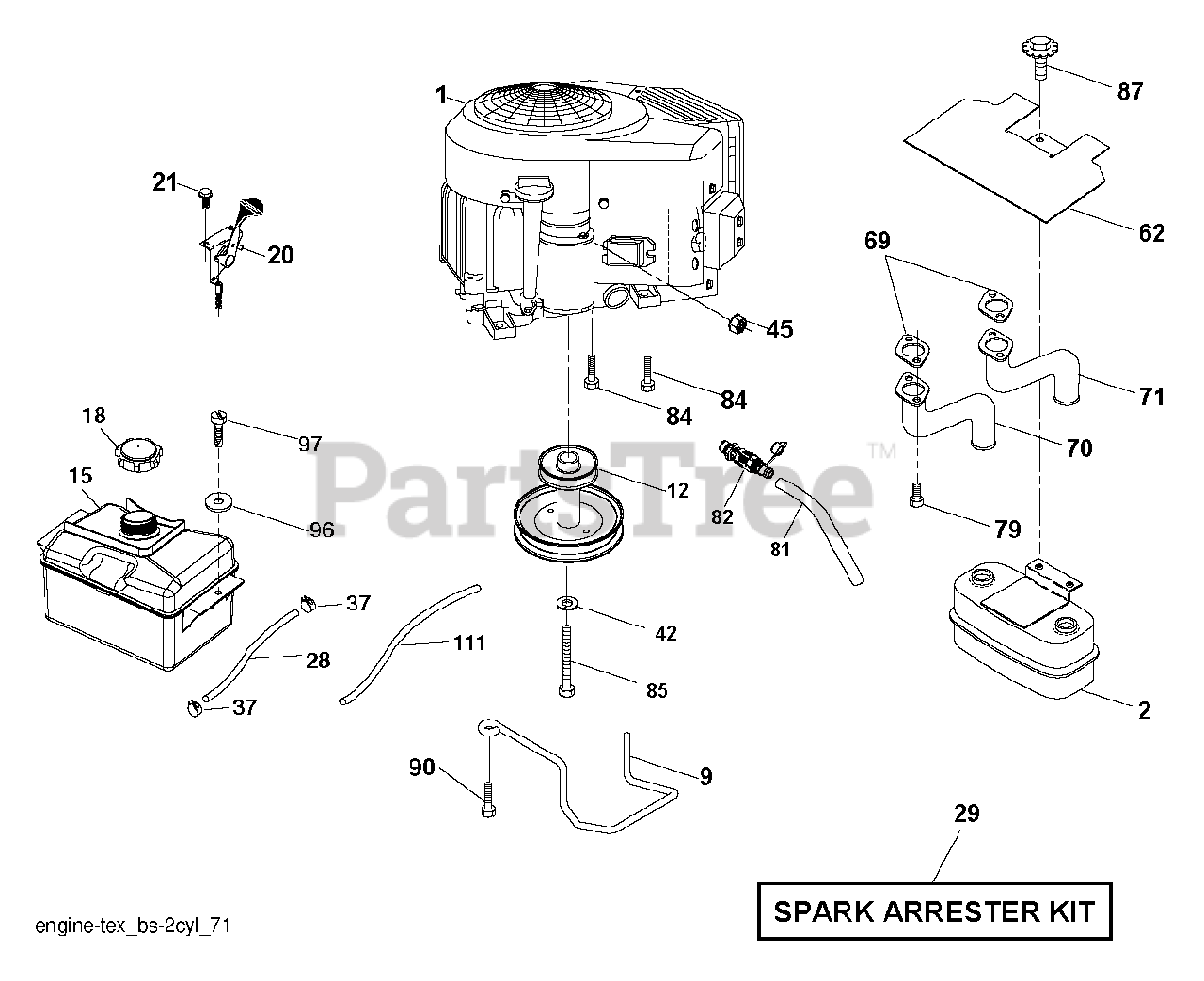

ENGINE Parts Diagram

  • Title
1

Jonsered 000000000

No Description Available

Note: ENGINE B S MODEL NO 44R877-0003-G1 (585700301)

$

$

Not available

2

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Jonsered 584908001

Belt Keeper, 4 25"2 Blt 431
(Superseded to 596501502)

$11.99

$

In Stock, Qty 5

0

12

Jonsered 586478501

Engine Pulley

$40.99

$

In Stock, only 2 left!

0

15

Jonsered 532433007

TANK.ASM.FRT.2.5 GAL.W/CAP.EPA
(Superseded to 597954502)

$125.99

$

Usually ships in 3-10 days

0

18

Jonsered 581176101

Fuel Cap, 2-Way Vent

$53.99

$

In Stock, only 1 left!

0

20

Jonsered 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.

$30.99

$

In Stock, only 1 left!

0

21

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Jonsered 532401137

LINE.FUEL.20"FRONT.EMI

$14.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

37

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Jonsered 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Jonsered 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Jonsered 581881101

Exhaust Tube, LH.Bs/Twin
(Superseded to 532159955)

$44.99

$

In Stock, only 1 left!

0

71

Jonsered 581881001

Exhaust Tube, RH B&S Twin Intek
(Superseded to 532160589)

$27.99

$

In Stock, only 1 left!

0

79

Jonsered 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 5

0

82

Jonsered 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 2 left!

0

84

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Jonsered 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Jonsered 537171877

BOLT 5/1618UNC X 3/4 W/ SEMS
(Superseded to 532171877)

$7.49

$

In Stock, Qty 6

0

90

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 1 left!

0

96

$6.49

$

Usually ships in 3-10 days

0

97

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

111

Jonsered 532414119

RP PURGE LINE
(Superseded to 587044580)

$11.99

$

In Stock, only 1 left!

0
