YT 2452F (2690938) - Snapper YT400 Series 52" Yard Tractor, 24hp Lift Group - Manual Lift Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

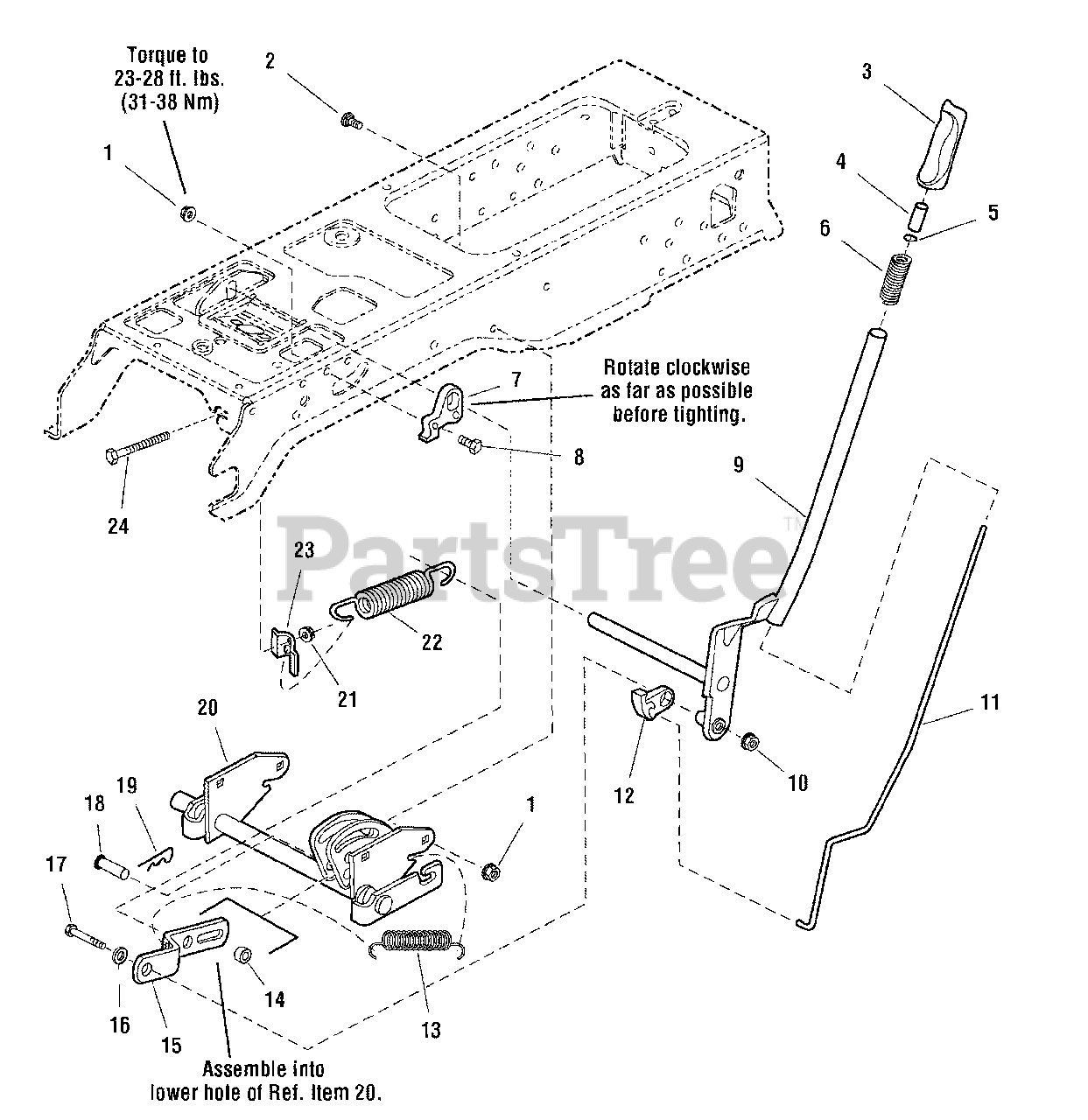

Lift Group - Manual Lift Parts Diagram

  • Title
1

Snapper 703330

NUT, Hex Whiz Lock Flange, 5/16-18, Large, Black

Note: (Was 1927557 or 80003641)

$4.99

$

In Stock, Qty 14

0

2

Snapper 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

3

Snapper 1722291SM

GRIP, Lift Lever

$11.99

$

In Stock, Qty 11

0

4

Snapper 1723124SM

BUTTON, Red Nylon, for 1/4 Rod

$5.99

$

In Stock, Qty 20+

0

5

Snapper 1960674SM

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 1723321SM

SPRING, Compression, Lift Lever

$6.99

$

In Stock, only 4 left!

0

7

Snapper 1721581SM

QUADRANT, Lift, Powdered Metal

$11.99

$

In Stock, only 2 left!

0

8

Snapper 1926149SM

CAPSCREW, Hex Head, 5/16-18 x 1, G8, Black

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 1721712ASM

LEVER ASSEMBLY, Lift

$198.99

$

Usually ships in 2-12 days

0

10

Snapper 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

11

Snapper 1722482SM

ROD, Latch

$28.99

$

In Stock, Qty 7

0

12

Snapper 1722112SM

LOCK, Lift, Powdered Metal

$16.99

$

In Stock, Qty 9

0

13

Snapper 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

14

Snapper 5044609SM

SPACER, 1/2 x 3/4 x 23/32

$6.49

$

Usually ships in 2-12 days

0

15

Snapper 1723795ASM

BAR, Lift, 9-7/8 Long

$16.99

$

Usually ships in 2-12 days

0

16

Snapper 703298

WASHER, 5/16, Black

Note: (Was 1919381 or 80003525)

$4.49

$

In Stock, only 2 left!

0

17

Snapper 703177

CAPSCREW, Hex Head, 5/16-18 x 2-1/4

Note: (Was 1921160 or 80004003)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 1722819SM

PIN, Flat Head Drilled, 1/2 x 2-1/8 Long

$6.99

$

In Stock, Qty 5

0

19

Snapper 1960033SM

CLIP, Hair Pin, 2-9/16 Long

$3.49

$

In Stock, Qty 20+

0

20

Snapper 1727436ASM

SHAFT ASSEMBLY, Lift

Note: (Was 1727778)

$256.99

$

Usually ships in 2-12 days

0

21

Snapper 1935255SM

NUT, Speed, 5/16-18, Lug

$3.49

$

In Stock, only 3 left!

0

22

Snapper 1675232SM

SPRING, Compression

$20.99

$

In Stock, only 1 left!

0

23

Snapper 1723499SM

RETAINER, Spring Flat

$8.49

$

In Stock, only 2 left!

0

24

Snapper 1722357SM

CAPSCREW, Hex Washer Head, 5/16-18 x 4-1/2

$17.99

$

Usually ships in 2-12 days

0
