YT 2452F (2690938) - Snapper YT400 Series 52" Yard Tractor, 24hp 52" Mower Deck - Housing, Arbors & Blades Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

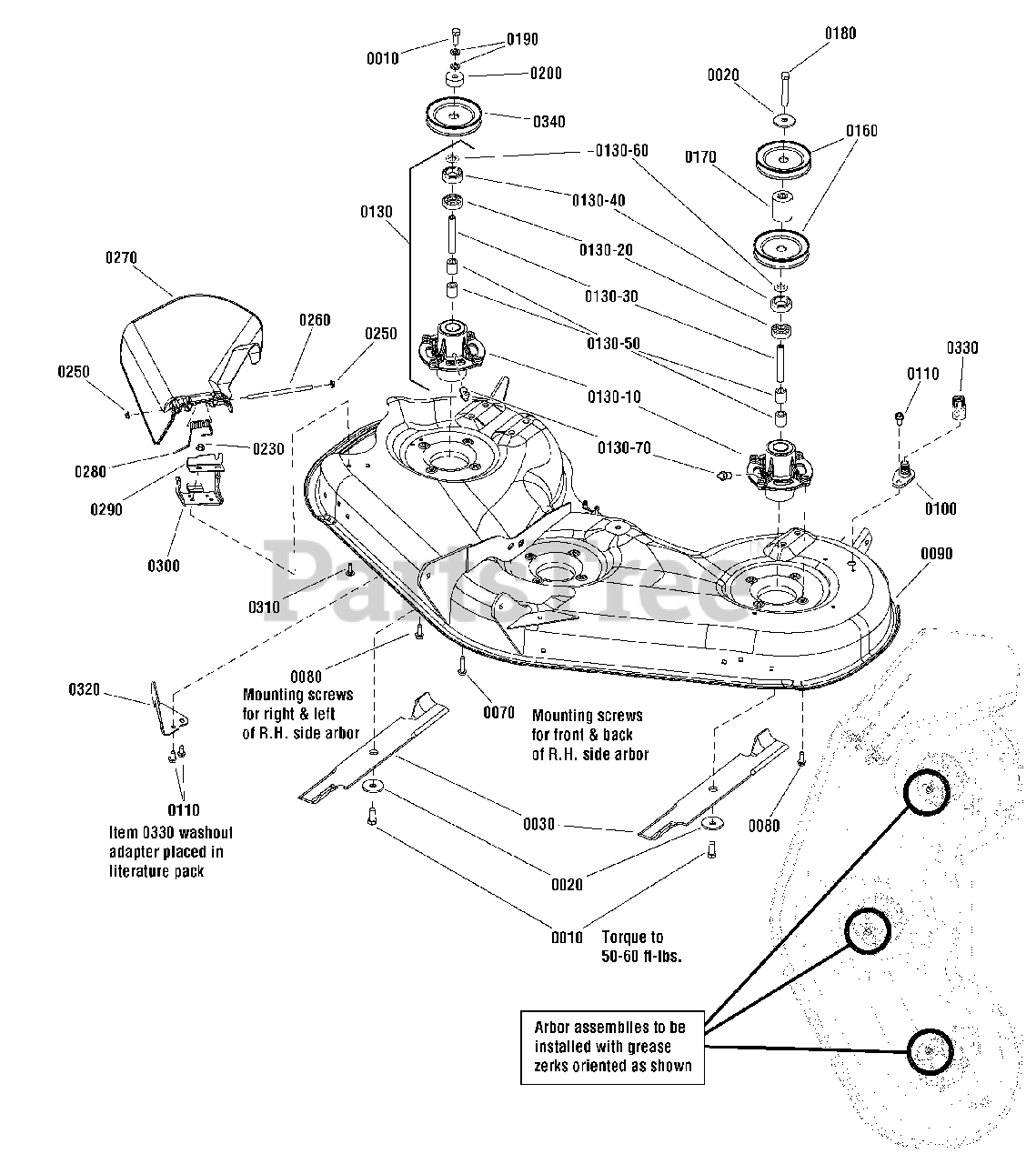

52" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

0010

Snapper 1920676

CAPSCREW, Hex Head, 7/16-14 x 1, G5
(Superseded to 1920676SM)

$5.49

$

In Stock, Qty 16

0

0020

Snapper 1656916

WASHER, Spring, 1-3/4 OD
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

0030

Snapper 1737252A

BLADE, Mower, 18-1/2 Long
(Superseded to 1737252BZYP)

$18.99

$

In Stock, Qty 20+

0

0070

Snapper 1930600

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2
(Superseded to 1930600SM)

$4.99

$

In Stock, Qty 19

0

0080

Snapper 1960373

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0090

Snapper 1751883D

HOUSING ASSEMBLY, Red
(Superseded to 1687675YP)

$1738.99

$

Usually ships in 2-12 days

0

0100

Snapper 1735716

ADAPTER, Washout
(Superseded to 1756247YP)

$6.49

$

Usually ships in 2-12 days

0

0110

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 5405811

SPINDLE ASSEMBLY
(Superseded to 5405811YP)

$100.99

$

In Stock, only 1 left!

0

0130-10

Snapper 1737352

HOUSING, Spindle
(Superseded to 1737352YP)

$43.99

$

In Stock, Qty 11

0

0130-20

Snapper 1735399

BEARING, Ball, 20mm
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

0130-30

Snapper 1735326

SHAFT, Spindle
(Superseded to 1735326YP)

$27.99

$

In Stock, only 2 left!

0

0130-40

Snapper 1735323

SHIELD, Arbor, 2-1/16 OD
(Superseded to 1735323YP)

$6.99

$

In Stock, only 3 left!

0

0130-50

Snapper 1735328

SPACER, Bearing
(Superseded to 1735328YP)

$6.49

$

In Stock, only 1 left!

0

0130-60

Snapper 1960766

RING, Self Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

0130-70

Snapper 1704314

FITTING, Lubrication
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

0160

Snapper 1735733

PULLEY, 5-1/2 OD
(Superseded to 1735733YP)

$20.99

$

In Stock, Qty 5

0

0170

Snapper 1739567

SPACER, Pulley, 46" Mower
(Superseded to 1739567YP)

$9.99

$

In Stock, Qty 5

0

0180

Snapper 1926110

CAPSCREW, Hex Head, 7/16-14 x 2-3/4, G5
(Superseded to 1926110SM)

$6.49

$

In Stock, only 1 left!

0

0190

Snapper 1960769

Washer, Belleville, .45 ID - 1.18 OD
(Superseded to 1960769YP)

$4.99

$

Usually ships in 2-12 days

0

0200

Snapper 1735579

SPACER, Lower Drive
(Superseded to 1735579YP)

$7.49

$

In Stock, only 1 left!

0

0230

Snapper 1931277

NUT, Whix Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0220

Snapper 1735752

COVER, Belt R.H.
(Superseded to 1735752YP)

$29.99

$

Usually ships in 2-12 days

0

0250

Snapper 7012542

PUSHNUT, 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

0260

Snapper 1736366

ROD, Deflector
(Superseded to 1736366YP)

$11.99

$

Usually ships in 2-12 days

0

0270

Snapper 1735447

DEFLECTOR, Discharge
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

0290

Snapper 1737359A

PLATE, Deflector, Close Off
(Superseded to 1737359BMYP)

$8.49

$

In Stock, only 3 left!

0

0280

Snapper 1736364

SPRING, Torsion
(Superseded to 1736364YP)

$8.49

$

Usually ships in 2-12 days

0

0300

Snapper 1737418A

HINGE, Deflector
(Superseded to 1737418AYP)

$22.99

$

Usually ships in 2-12 days

0

0310

Snapper 1931334

BOLT, Carriage, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

0320

Snapper 1737279A

BAFFLE
(Superseded to 1737279BMYP)

$16.99

$

In Stock, only 1 left!

0

0330

Snapper 1736898

WASHOUT PORT, Connector
(Superseded to 1756246YP)

$15.99

$

Usually ships in 2-12 days

0

0340

Snapper 1735686

PULLEY, 4-5/8 OD
(Superseded to 1735686YP)

$19.99

$

In Stock, only 3 left!

0
