YT 2452F (2690938) - Snapper YT400 Series 52" Yard Tractor, 24hp 52" Mower Deck - French Guard Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

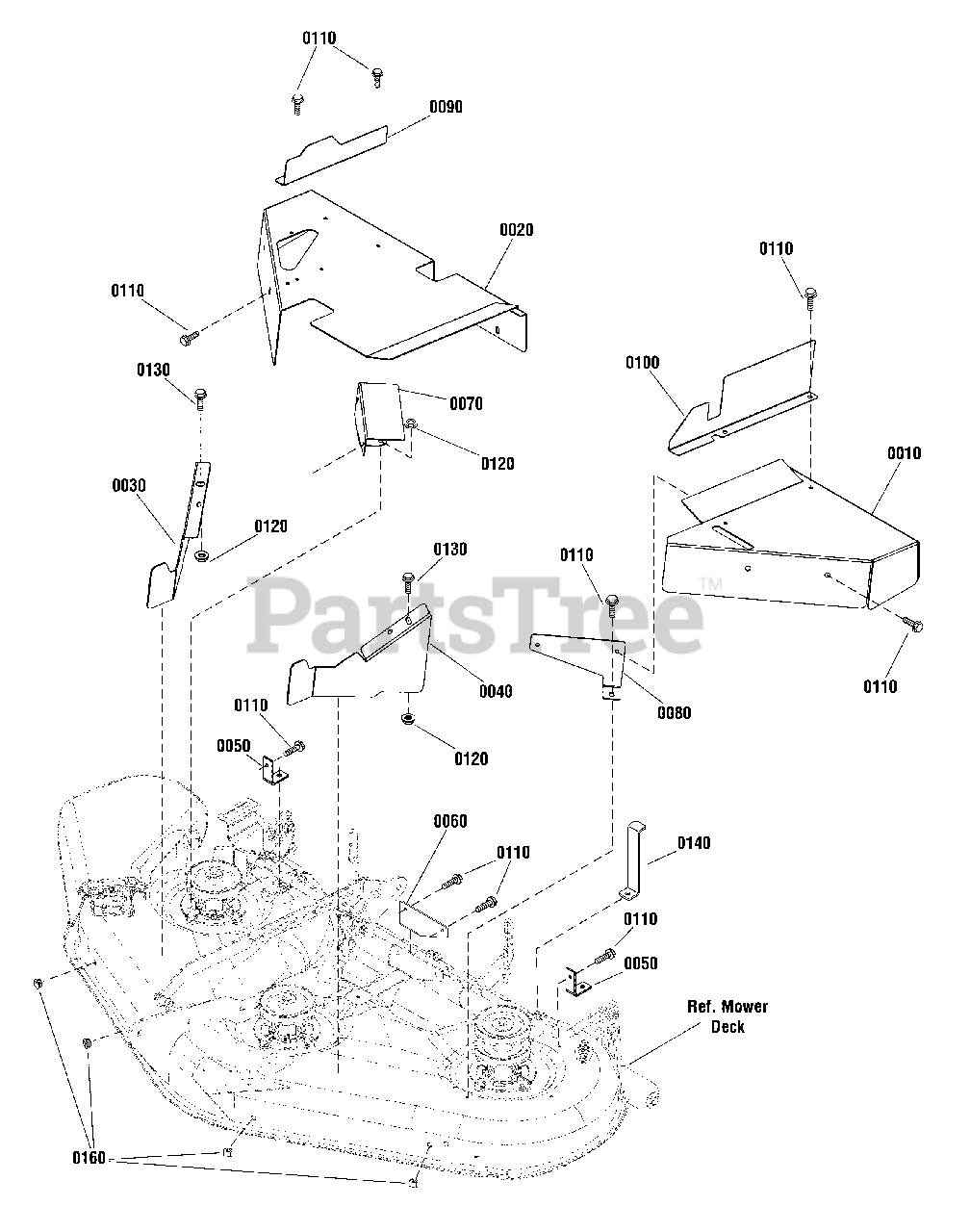

52" Mower Deck - French Guard Group Parts Diagram

  • Title

0010

Snapper 1751701A

COVER, Guard, LH
(Superseded to 1751701AYP)

$75.99

$

Usually ships in 2-12 days

0

0020

Snapper 1751740A

COVER, Guard, RH
(Superseded to 1751740AYP)

$106.99

$

Usually ships in 2-12 days

0

0030

Snapper 1751711A

PLATE, Front, RH
(Superseded to 1751711AYP)

$26.99

$

Usually ships in 2-12 days

0

0040

Snapper 1751739A

PLATE, Front, LH
(Superseded to 1751739AYP)

$27.99

$

Usually ships in 2-12 days

0

0050

Snapper 1751741A

BRACKET, Rear
(Superseded to 1751741AYP)

$11.99

$

Usually ships in 2-12 days

0

0060

Snapper 1751742A

BRACKET, Rear, Center
(Superseded to 1751742AYP)

$23.99

$

Usually ships in 2-12 days

0

0070

Snapper 1751743A

BRACKET, Front, RH
(Superseded to 1751743AYP)

$28.99

$

Usually ships in 2-12 days

0

0080

Snapper 1751744A

BRACKET, Front, LH
(Superseded to 1751744AYP)

$19.99

$

Usually ships in 2-12 days

0

0090

Snapper 1751745A

GUARD, Cover, RH
(Superseded to 1751745AYP)

$13.99

$

Usually ships in 2-12 days

0

0100

Snapper 1751746A

GUARD, Cover, LH
(Superseded to 1751746AYP)

$18.99

$

Usually ships in 2-12 days

0

0110

Snapper 1924856

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0120

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0130

Snapper 1930591

CAPSCREW, Hex, Whiz Lock Flange, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

0140

Snapper 1752534A

UPSTOP
(Superseded to 1752534AYP)

$25.99

$

Usually ships in 2-12 days

0

0160

Snapper 1705115

PLUG, Button
(Superseded to 1705115SM)

$4.49

$

In Stock, only 1 left!

0
