YT 2452F (2690938) - Snapper YT400 Series 52" Yard Tractor, 24hp 52" Mower Deck - Clutch & Support Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

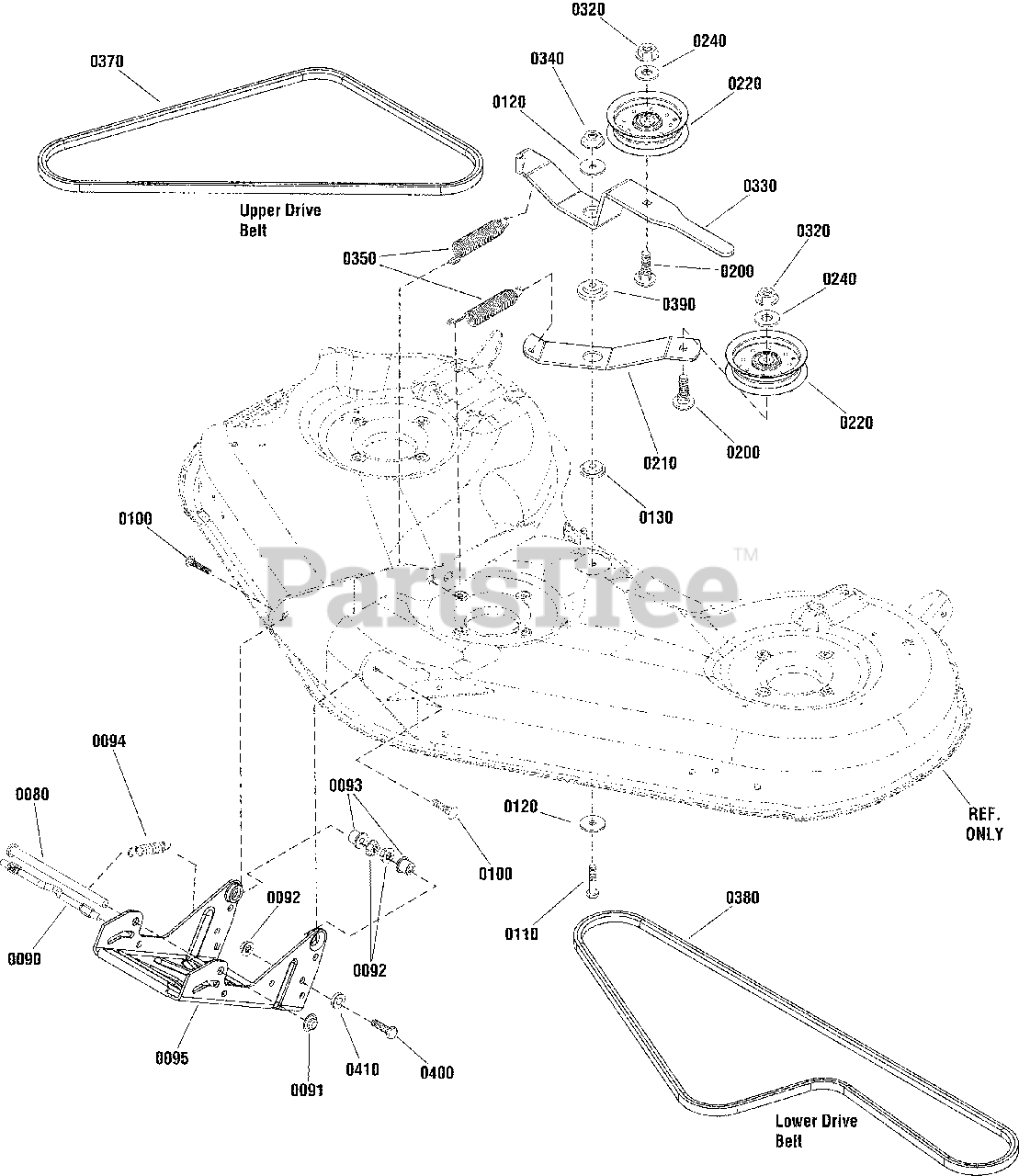

52" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0080

Snapper 1713578SM

ROD, 1/2 Dia. x 7-5/8

$15.99

$

In Stock, only 1 left!

0

0090

Snapper 1715759SM

ROD, 3/8 Dia. x 8

$7.99

$

In Stock, Qty 10

0

0091

Snapper 1960519SM

PUSHNUT, 1/2
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

0092

Snapper 1960687SM

NUT, Hex Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0093

Snapper 1732443SM

SPACER, 3/4 OD x 3/4 Long

$5.99

$

In Stock, Qty 20+

0

0094

Snapper 2156302SM

SPRING, Extension, 4-1/8

$6.49

$

In Stock, Qty 20+

0

0095

Snapper 1738040AYP

HITCH, Mower

$289.99

$

Usually ships in 2-12 days

0

0100

Snapper 7091945YP

BOLT, Carriage, , 3/8C X 1-1/2 GR5 YZ

$4.49

$

In Stock, only 2 left!

0

0110

Snapper 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4, G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

0120

Snapper 1924356SM

WASHER, 3/8, 1/2 OD
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0130

Snapper 1714255SM

SPACER, 1-1/2 OD

$6.49

$

In Stock, Qty 17

0

0200

Snapper 7091810SM

BOLT, Carriage, 3/8C X 1-3/4, G5
(Superseded to 703879)

$3.99

$

In Stock, Qty 5

0

0210

Snapper 1735321AYP

ARM, Idler, Lower

$39.99

$

Usually ships in 2-12 days

0

0220

Snapper 1736540YP

PULLEY, Idler, 46 & 52" Mowers

$35.99

$

In Stock, only 2 left!

0

0240

Snapper 7091528SM

WASHER, Flat, 3/8 X .875

$3.99

$

Usually ships in 2-12 days

0

0320

Snapper 7091619SM

NUT, Whiz, 3/8
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0330

Snapper 1739585AYP

ARM, Idler, Upper

$

$

Not available

0340

Snapper 1930645SM

NUT, Hex Flange, Two Way Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0350

Snapper 1715772SM

SPRING, Extension, 5-1/4

$13.99

$

In Stock, Qty 20+

0

0370

Snapper 1751423YP

V-BELT, HA, 68.10

$63.99

$

In Stock, Qty 20+

0

0380

Snapper 1665450SM

V-BELT, HA, 87.20

$47.99

$

In Stock, Qty 11

0

0390

Snapper 1739594YP

SPACER, 1-3/4 OD

$31.99

$

Usually ships in 2-12 days

0

0400

Snapper 5025013X8SM

BOLT, 3/8-16 x 1, G5

$3.99

$

In Stock, Qty 6

0

0410

Snapper 5044960SM

SPACER, 3/8 x 1 x 1/4

$5.49

$

In Stock, Qty 7

0
