YT 2452 (2691250-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Steering Group - Manual Steering Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

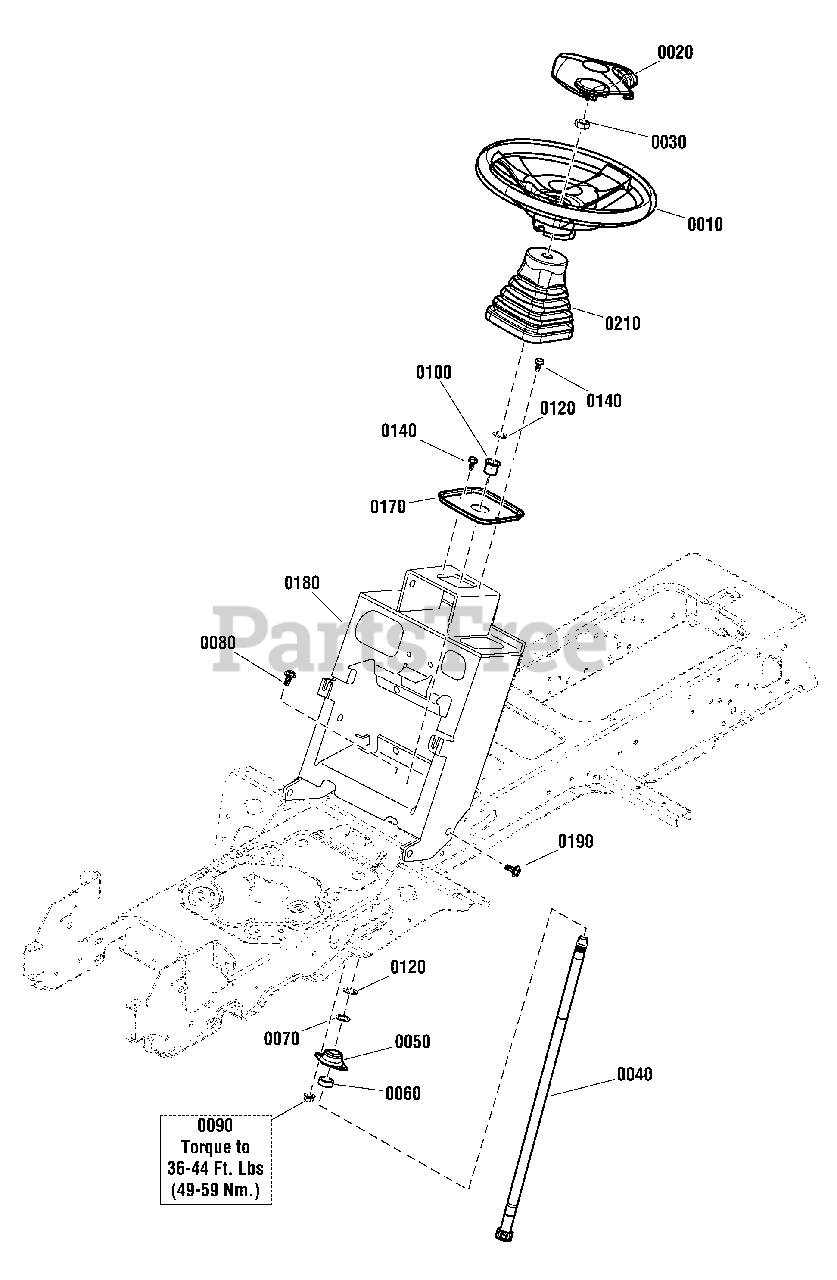

Steering Group - Manual Steering Parts Diagram

  • Title

0010

Snapper 7078088YP

STEERING WHEEL, UV-2

Note: each

$131.99

$

In Stock, only 1 left!

0

0020

Snapper 1722319SM

CAP, Steering Wheel

Note: each

$14.99

$

In Stock, only 3 left!

0

0030

Snapper 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

Note: each

$5.99

$

In Stock, Qty 9

0

0040

Snapper 1755488YP

SHAFT, Steering
(Superseded to 1756846YP)

Note: each

$63.99

$

Usually ships in 2-12 days

0

0050

Snapper 1722459SM

BEARING, Flanged

Note: each

$11.99

$

In Stock, Qty 20+

0

0060

Snapper 1722461SM

SPACER

Note: each

$26.99

$

In Stock, Qty 14

0

0070

Snapper 706388

SPACER, .766 x 1.06 x 1/8

Note: each

$7.99

$

Usually ships in 2-12 days

0

0080

Snapper 7091588SM

BOLT, Serrated Flange, 3/8-16 x 3/4, GR5
(Superseded to 703955)

Note: each

$4.49

$

In Stock, Qty 6

0

0090

Snapper 1931211SM

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

Note: each

$4.99

$

In Stock, Qty 20+

0

0100

Snapper 2176440SM

BUSHING, Nylon, 3/4 ID x 7/8 OD x 7/8"

Note: each

$4.99

$

In Stock, Qty 20+

0

0120

Snapper 1611710SM

RING, Klipring, 3/4

Note: each

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

Note: each

$4.49

$

In Stock, Qty 20+

0

0170

Snapper 1754945AYP

PLATE, Steering Mount

Note: each

$13.99

$

Usually ships in 2-12 days

0

0180

Snapper 1755579AYP

TOWER, Steering

$233.99

$

Usually ships in 2-12 days

0

0190

Snapper 703950

SCREW, Hex Washer Head, Thread Roll, 5/16-18 X 5/8

$5.49

$

In Stock, only 1 left!

0

0210

Snapper 1755550YP

BELLOWS

Note: each

$28.99

$

Usually ships in 2-12 days

0
