YT 2452 (2691250-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Seat Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

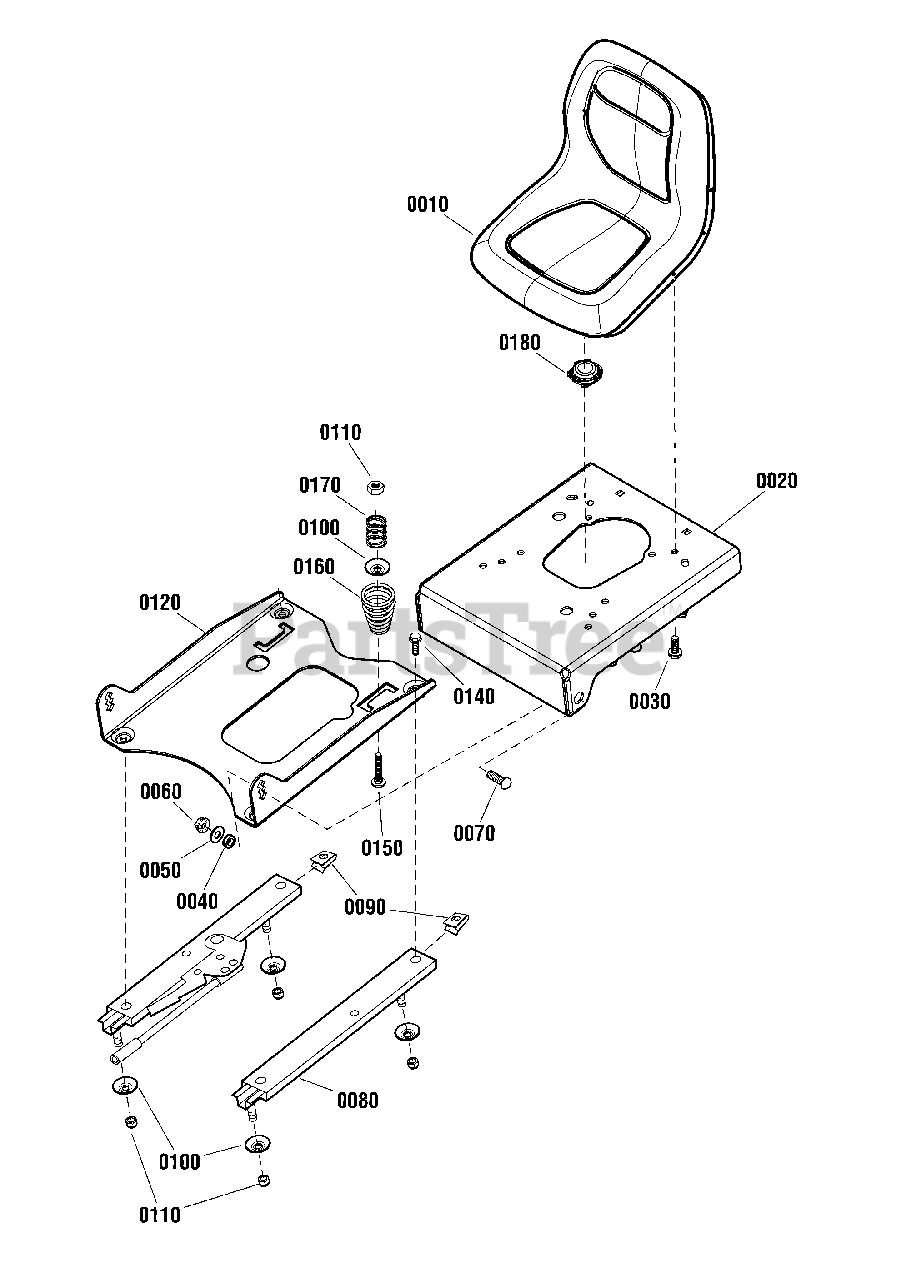

Seat Group Parts Diagram

  • Title

0010

Snapper 1753728YP

SEAT, 18" Back

Note: each

$591.99

$

Usually ships in 2-12 days

0

0020

Snapper 1722129ASM

BRACKET, 1-5/8 x 1-3/4

Note: each

$62.99

$

Usually ships in 2-12 days

0

0030

Snapper 770697

CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1

Note: each

$

$

Not available

0040

Snapper 1663752SM

SPACER, 25/64 x 5/8 x 3/16, Hardened

Note: each

$5.99

$

In Stock, only 2 left!

0

0050

Snapper 1924940SM

WASHER, 3/8
(Superseded to 703878)

Note: each

$3.99

$

In Stock, Qty 20+

0

0060

Snapper 1930645SM

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

Note: each

$6.99

$

In Stock, Qty 20+

0

0070

Snapper 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

Note: each

$4.49

$

In Stock, only 4 left!

0

0080

Snapper 1722356SM

SLIDE, Seat, (2 piece set)

Note: each

$62.99

$

In Stock, only 1 left!

0

0090

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

Note: each

$3.49

$

In Stock, only 3 left!

0

0100

Snapper 1709256SM

WASHER, Spring, 5/16 x 1 1/4

Note: each

$5.99

$

In Stock, only 1 left!

0

0110

Snapper 1960636SM

NUT, Hex KEPS, 5/16-18

Note: each

$4.99

$

In Stock, only 1 left!

0

0120

Snapper 1722128ASM

SUPPORT, Seat

Note: each

$87.99

$

Usually ships in 2-12 days

0

0140

Snapper 1930591SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

Note: each

$5.49

$

In Stock, Qty 14

0

0150

Snapper 1931339SM

CARRIAGE BOLT, 5/16-18 x 2
(Superseded to 704035)

Note: each

$4.49

$

In Stock, only 2 left!

0

0160

Snapper 1717051SM

SPRING, Compression

Note: each

$13.99

$

In Stock, Qty 20+

0

0170

Snapper 1714263SM

SPRING, Compression

Note: each

$4.99

$

In Stock, only 1 left!

0

0180

Snapper 1755878YP

SWITCH, Operator Presence

$17.99

$

Usually ships in 2-12 days

0
