YT 2452 (2691250-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Hood, Grille & Dash Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

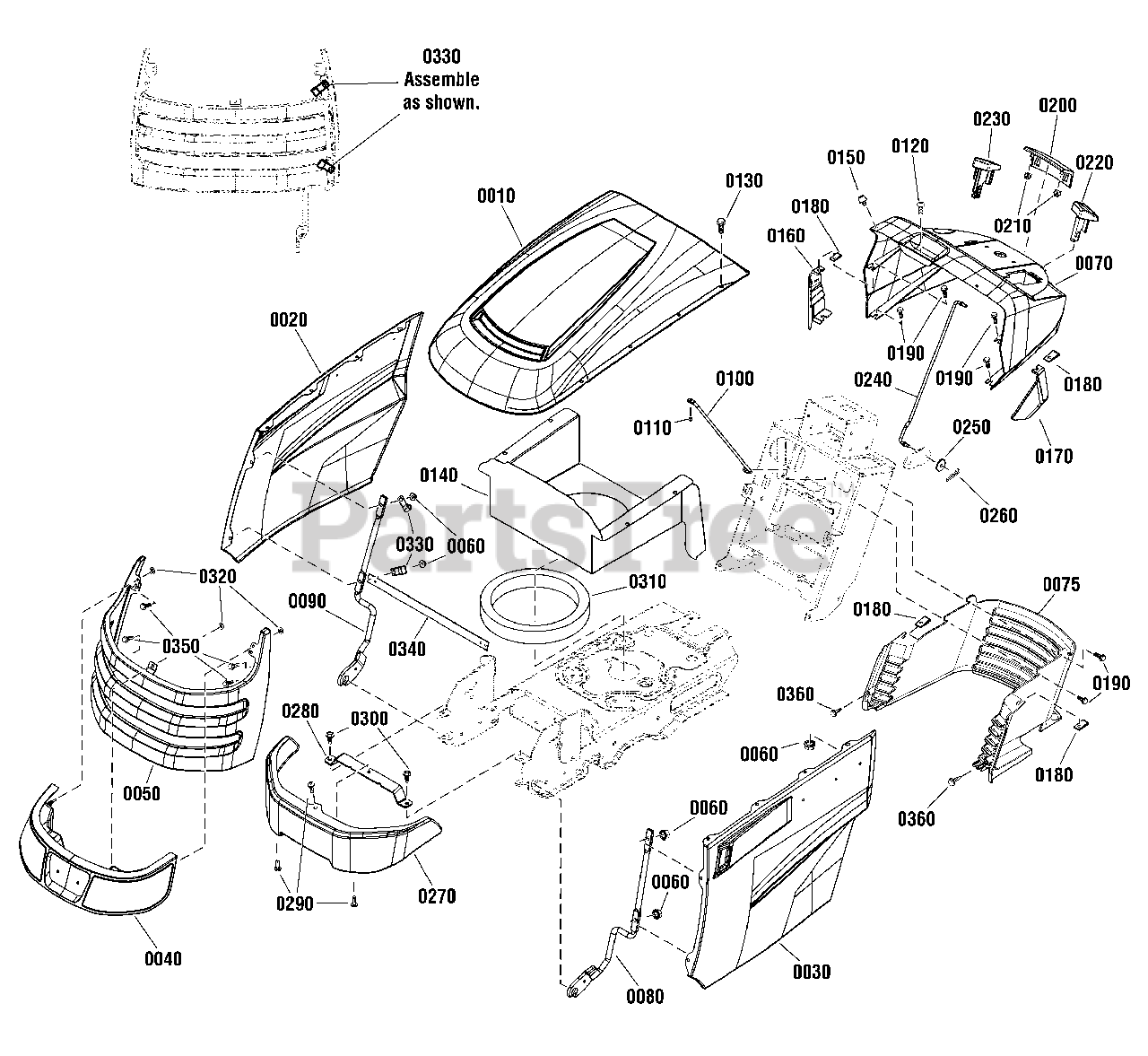

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Snapper 1754921DYP

HOOD, Top

$311.99

$

Usually ships in 2-12 days

0

0020

Snapper 1754925DYP

PANEL, Side, RH

$199.99

$

Usually ships in 2-12 days

0

0030

Snapper 1754924DYP

PANEL, Side, LH

$192.99

$

Usually ships in 2-12 days

0

0040

Snapper 1754936YP

HEADLIGHT ASSEMBLY (LED)

$313.99

$

In Stock, Qty 6

0

0050

Snapper 1754922DYP

GRILLE, Front

$176.99

$

Usually ships in 2-12 days

0

0060

Snapper 1930641SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0070

Snapper 1754860YP

DASH, Upper

$202.99

$

Usually ships in 2-12 days

0

0075

Snapper 1754859YP

DASH. Lower

$131.99

$

Usually ships in 2-12 days

0

0080

Snapper 1755578YP

HOOD HINGE ASSEMBLY, LH

$40.99

$

Usually ships in 2-12 days

0

0090

Snapper 1755577YP

HOOD HINGE ASSEMBLY, RH

$40.99

$

In Stock, only 1 left!

0

0100

Snapper 1755633YP

ROD, Dash Support

$15.99

$

Usually ships in 2-12 days

0

0110

Snapper 1933896SM

NUT, Hex, Nylon Insert Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0120

Snapper 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0130

Snapper 1960295SM

SCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0140

Snapper 1755176AYP

DUCT, Air

$176.99

$

Usually ships in 2-12 days

0

0150

Snapper 1755815YP

BUMPER, Rubber

$4.99

$

Usually ships in 2-12 days

0

0160

Snapper 1755223YP

GUIDE, Hood, RH

$7.49

$

In Stock, only 1 left!

0

0170

Snapper 1755224YP

GUIDE, Hood, LH

$7.49

$

In Stock, only 1 left!

0

0180

Snapper 1926018SM

NUT, Speed,1/4

$4.49

$

In Stock, Qty 12

0

0190

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 9

0

0200

Snapper 1755547YP

TRIM

$6.99

$

Usually ships in 2-12 days

0

0210

Snapper 703582

CLIP, Panel

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 1755457YP

PLUG, Dash Knob

$7.49

$

Usually ships in 2-12 days

0

0230

Snapper 1754862YP

KNOB, Parking Brake

$8.49

$

In Stock, only 1 left!

0

0240

Snapper 1755594YP

ROD, Parking Brake

$11.99

$

Usually ships in 2-12 days

0

0250

Snapper 1921319SM

WASHER, 184
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0260

Snapper 1722460SM

PIN, Quick, 1.19"
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0270

Snapper 1754923AYP

BUMPER

$158.99

$

In Stock, only 1 left!

0

0280

Snapper 1755506AYP

SUPPORT, Front Bumper

$19.99

$

Usually ships in 2-12 days

0

0290

Snapper 1960086SM

SCREW, Truss Head Torx, 5/16-18 x 7/8

$4.99

$

In Stock, only 2 left!

0

0300

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0310

Snapper 1751237YP

SEAL, Foam

$35.99

$

In Stock, only 2 left!

0

0320

Snapper 1960521SM

NUT, Push

$3.49

$

In Stock, Qty 13

0

0330

Snapper 7012652YP

CLIP, Wire, 7/16

$3.99

$

Usually ships in 2-12 days

0

0340

Snapper 1756204AYP

STRIP, Hood Support

$14.99

$

Usually ships in 2-12 days

0

0350

Snapper 1960611SM

SCREW, Hex Flange, Whiz Lock, 1/4-20 x 1

$4.49

$

In Stock, only 1 left!

0

0360

Snapper 1960536SM

SCREW, Hex Washer Head, Plastite, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0360

Snapper 1960536SM

SCREW, Hex Washer Head, Plastite, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0370

Snapper 1757664YP

INSULATION
(Superseded to 1758731YP)

Note: (Not Shown)

$9.49

$

In Stock, only 4 left!

0
