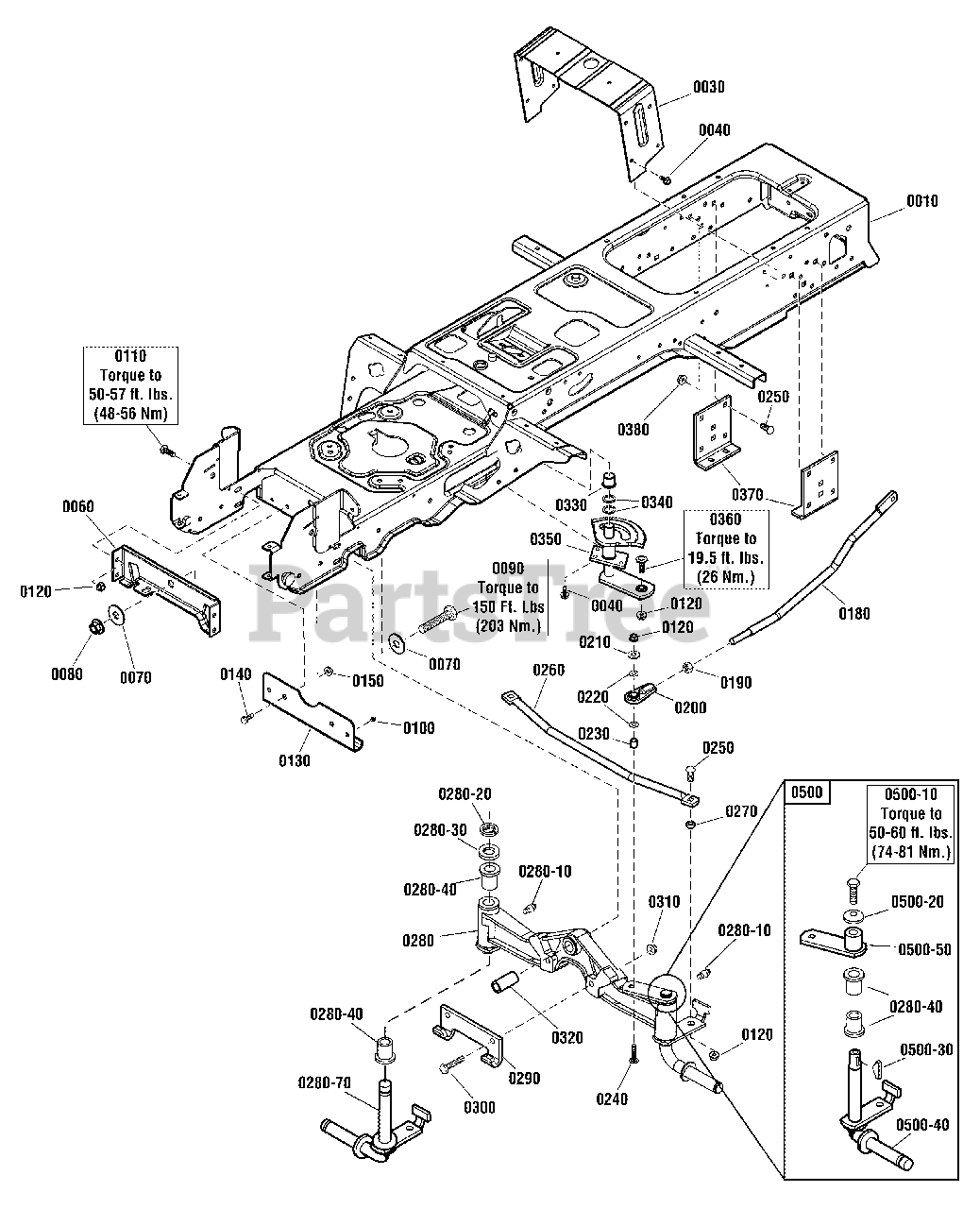

YT 2452 (2691250-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Frame Group - Manual Steering Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

Frame Group - Manual Steering Parts Diagram

  • Title

0010

Snapper 1754506A

FRAME

Note: (Not a serviceable part)

$

$

Currently unavailable

0030

Snapper 1752878AYP

SUPPORT, Seat Deck

$39.99

$

Usually ships in 2-12 days

0

0040

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0060

Snapper 1722212ASM

PLATE, Axle Support

$33.99

$

Usually ships in 2-12 days

0

0070

Snapper 1960035SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

0080

Snapper 2860646SM

NUT, Hex Flange, Two Way Lock, 5/8-11

$10.99

$

In Stock, Qty 6

0

0090

Snapper 2860645SM

CAPSCREW, Hex Head, 5/8-11 x 3-1/2, GR5

$8.99

$

In Stock, only 3 left!

0

0100

Snapper 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0110

Snapper 1933260SM

BOLT, Serrated Flange, 3/8-16 x 3/4, GR5
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

0120

Snapper 1930645SM

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0130

Snapper 1724801ASM

PLATE, Axle Wear

$26.99

$

In Stock, only 1 left!

0

0140

Snapper 1930591SM

SCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

0150

Snapper 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0180

Snapper 1722541SM

LINK, Drag

$31.99

$

In Stock, only 1 left!

0

0190

Snapper 1919262SM

NUT, Hex Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

0200

Snapper 1702779SM

JOINT-BALL .500-20 THD .500ID

$28.99

$

In Stock, Qty 14

0

0210

Snapper 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0220

Snapper 1960103SM

WASHER, 3/8"

$4.49

$

In Stock, Qty 7

0

0230

Snapper 1708236SM

SPACER, 0.377 x 1/2 x 5/8"

$8.99

$

In Stock, Qty 10

0

0240

Snapper 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 4 left!

0

0250

Snapper 1931350SM

BOLT, Carriage, Short Neck, 3/8-16 x 1 GR5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0260

Snapper 1722626ASM

TIE ROD

$34.99

$

In Stock, only 1 left!

0

0270

Snapper 1611705SM

SPACER, 3/8 x 5/8 x 1/4"

$4.49

$

In Stock, Qty 20+

0

0280

Snapper 1722200ASM

AXLE ASSEMBLY, w/ LH Spindle, Complete

$384.99

$

Usually ships in 2-12 days

0

0280-10

Snapper 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0280-20

Snapper 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

0280-30

Snapper 703149

WASHER, 1

$3.49

$

In Stock, Qty 20+

0

0280-40

Snapper 1721682SM

BUSHING, 1 ID x 1-1/4 OD x 3/4"

$5.49

$

In Stock, Qty 20+

0

0280-70

Snapper 1722199SM

SPINDLE ASSEMBLY, RH
(Superseded to 1722199AYP)

$

$

Not available

0290

Snapper 1721918ASM

HOOK, Mower Hitch

$31.99

$

In Stock, Qty 9

0

0300

Snapper 1927531SM

CAPSCREW, Hex Head, 7/16-14 x 2, G8, Black

$5.49

$

In Stock, Qty 5

0

0310

Snapper 1930650SM

NUT, Hex Flange, Two Way Lock, 7/16-14

$5.49

$

In Stock, only 4 left!

0

0320

Snapper 1721752SM

SPACER, 5/8 x 1 x 2"

$14.99

$

In Stock, Qty 18

0

0330

Snapper 2176440SM

BUSHING, Nylon, 3/4 ID x 7/8 OD x 7/8"

$4.99

$

In Stock, Qty 20+

0

0340

Snapper 703151

WASHER, .766 ID X 1.06 OD X .07

$3.49

$

In Stock, Qty 20+

0

0350

Snapper 1724470ASM

STEERING GEAR ASSEMBLY

$152.99

$

In Stock, Qty 12

0

0360

Snapper 1960032SM

SCREW, Hex Head, 3/8-16 x 1 1/4

$5.49

$

In Stock, only 1 left!

0

0370

Snapper 1721728ASM

SUPPORT, Transmission

$14.99

$

Usually ships in 2-12 days

0

0380

Snapper 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0500

Snapper 1686985SM

KIT, Spindle Assembly, LH

$

$

Not available

0500-10

Snapper 2823485SM

CAPSCREW, 3/8-16 x 7/8, GR8

$4.49

$

In Stock, only 1 left!

0

0500-20

Snapper 1663151SM

WASHER, Spring, 3/8

$14.99

$

Usually ships in 2-12 days

0

0500-30

Snapper 2830671SM

KEY, Woodruff

$8.49

$

Usually ships in 2-12 days

0

0500-40

Snapper 1724264SM

SPINDLE, LH
(Superseded to 1686985SM)

$

$

Not available

0500-50

Snapper 1725112SM

HUB & ARM ASSEMBLY
(Superseded to 1725112ASM)

$149.99

$

In Stock, only 1 left!

0
