YT 2452 (2691250-00) - Snapper YT400 Series 52" Yard Tractor, 24hp 52" Mower Deck - Housing, Arbors & Blades Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

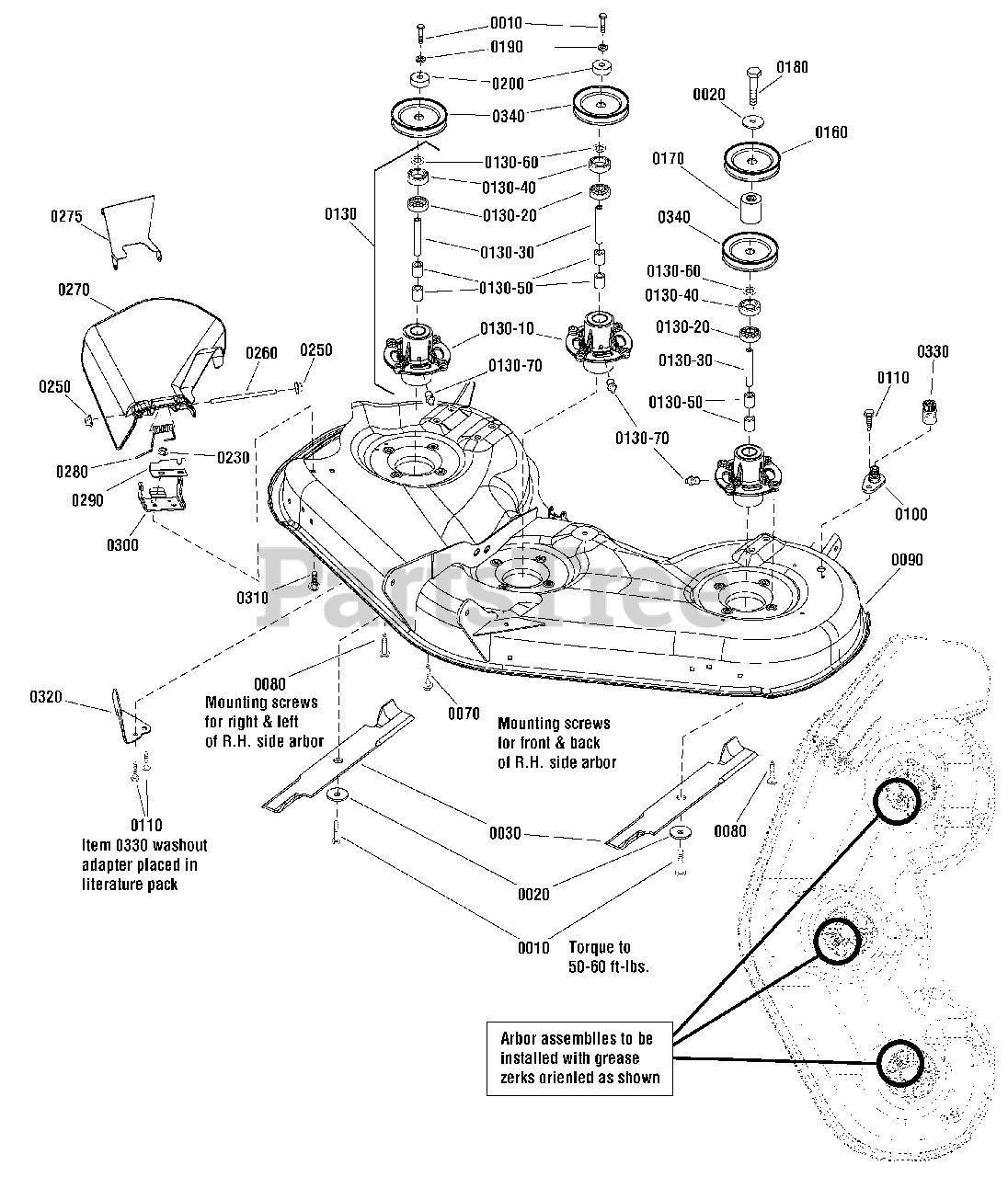

52" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

0010

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

0020

Snapper 1656916SM

WASHER, Spring, 1-3/4 OD

$7.49

$

In Stock, Qty 20+

0

0030

Snapper 1737252AYP

BLADE, Mower, 18-1/2 Long
(Superseded to 1687440YP)

$

$

Not available

0070

Snapper 1930600SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0080

Snapper 1960373SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0090

Snapper 1687485YP

HOUSING ASSEMBLY, Red

$

$

Currently unavailable

0100

Snapper 1756247YP

ADAPTER, Washout

$6.49

$

In Stock, only 1 left!

0

0110

Snapper 1960373SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0130

Snapper 5405811YP

SPINDLE ASSEMBLY
(Superseded to 84003175)

$100.99

$

In Stock, only 1 left!

0

0130-10

Snapper 1737352YP

HOUSING, Spindle
(Superseded to 84003654)

$43.99

$

In Stock, Qty 8

0

0130-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0130-30

Snapper 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

$27.99

$

In Stock, only 4 left!

0

0130-40

Snapper 1735323YP

SHIELD, Arbor, 2-1/16 OD
(Superseded to 84003166)

$6.99

$

In Stock, only 2 left!

0

0130-50

Snapper 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 3 left!

0

0130-60

Snapper 1960766SM

RING, Self Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

0130-70

Snapper 1704314SM

FITTING, Lubrication
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0160

Snapper 1735733YP

PULLEY, 5-1/2 OD

$20.99

$

In Stock, Qty 5

0

0170

Snapper 1739567YP

SPACER, Upper drive

$9.99

$

In Stock, Qty 5

0

0180

Snapper 1926110SM

CAPSCREW, Hex Head, 7/16-14 x 2-3/4, G5

$6.49

$

Usually ships in 2-12 days

0

0190

Snapper 1960769SM

WASHER, Belleville

$

$

Not available

0200

Snapper 1735579SM

SPACER, Lower Drive
(Superseded to 1735579YP)

$7.49

$

In Stock, only 1 left!

0

0250

Snapper 7012542YP

PUSHNUT, 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

0260

Snapper 1759064YP

ROD, Deflector

$8.49

$

Usually ships in 2-12 days

0

0270

Snapper 1687750YP

DEFLECTOR, Discharge

Note: (Incl. Ref. Nos. 0230, 0250, 0260, 0270, 0280, 0300, 0310)

$37.99

$

In Stock, Qty 20+

0

0275

Snapper 1758935AYP

BRACKET, Support

$58.99

$

In Stock, only 1 left!

0

0280

Snapper 1759042YP

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

0290

Snapper 1737359BMYP

PLATE, Deflector, Close Off

$8.49

$

In Stock, only 3 left!

0

0300

Snapper 1754868AYP

HINGE, Deflector

$17.99

$

Usually ships in 2-12 days

0

0310

Snapper 1931334SM

BOLT, Carriage, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

0320

Snapper 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0330

Snapper 1756247YP

WASHOUT PORT, Connector

$6.49

$

In Stock, only 1 left!

0

0340

Snapper 1735686YP

PULLEY, 4-5/8 OD

$19.99

$

In Stock, only 2 left!

0
