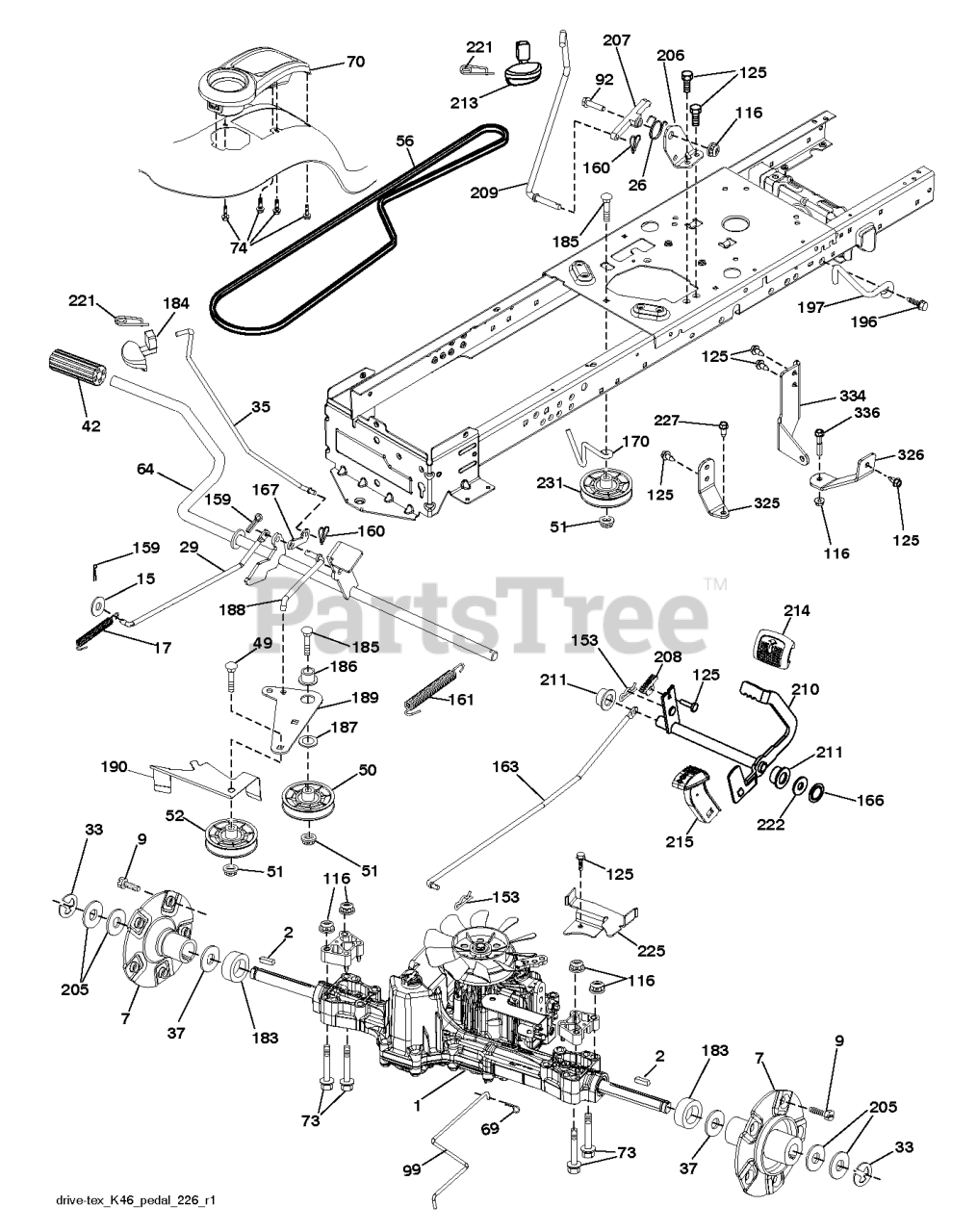

YT 2448 F (960430293-00) - RedMax 48" Yard Tractor, 24hp (2018-10) DRIVE Parts Diagram

48" Yard Tractor, 24hp

DRIVE Parts Diagram

  • Title

1

RedMax 000000000

Note: TRANSAXLE TUFFTORQ K46 CR (501051401)

$

$

Not available

2

RedMax 532186211

KEY.SQUARE.187X2.500

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 532199844

HUB.ASM.WHEEL.REAR.22"

$56.99

$

In Stock, only 1 left!

0

9

RedMax 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

17

RedMax 532413678

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, only 1 left!

0

26

RedMax 532199679

SPRING.RETURN.CRUISE

$6.49

$

In Stock, only 1 left!

0

29

RedMax 532403806

ROD.BRAKE.K46

$31.99

$

Usually ships in 3-10 days

0

33

RedMax 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

RedMax 590605902

ROD ROD.PARKINGBRAKE.GT.HUSQ/P

$9.49

$

In Stock, only 1 left!

0

37

RedMax 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

42

RedMax 532008883

PEDAL COVER

$6.49

$

Usually ships in 3-10 days

0

49

RedMax 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

RedMax 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 15

0

51

RedMax 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

RedMax 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

RedMax 592855201

Belts

$31.99

$

In Stock, Qty 20+

0

64

RedMax 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

70

RedMax 532412298

CONSOLE.TOOLBOX.PCH.ERGO.BLACK

$15.99

$

Usually ships in 3-10 days

0

69

RedMax 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$6.49

$

In Stock, only 2 left!

0

73

RedMax 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

74

RedMax 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

92

RedMax 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

RedMax 582404501

ARM.PIVOTING.TCRD.GEN2.5.BAGGE

$6.99

$

Usually ships in 3-10 days

0

116

RedMax 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

125

RedMax 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

153

RedMax 532004497

RETAINER M

$9.99

$

In Stock, Qty 12

0

159

RedMax 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

160

RedMax 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

RedMax 532105709

SPRING, RETURN LT

$11.99

$

In Stock, Qty 6

0

163

RedMax 532448275

ROD.CONTROL.K57R.K46
(Superseded to 593861001)

$26.99

$

Usually ships in 3-10 days

0

166

RedMax 532429164

NUT.PUSH.625

$6.49

$

Usually ships in 3-10 days

0

167

RedMax 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

RedMax 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

Usually ships in 3-10 days

0

183

RedMax 532400424

SPACER.SPLIT.800X.350

$8.99

$

In Stock, only 2 left!

0

184

RedMax 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

RedMax 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

186

RedMax 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

187

RedMax 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

RedMax 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$5.99

$

In Stock, Qty 10

0

189

RedMax 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$7.99

$

In Stock, Qty 5

0

190

RedMax 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

196

RedMax 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

197

RedMax 587402001

BRKT.42.FCS.CLUTCH.ANTIROTATIO

$6.99

$

In Stock, only 1 left!

0

205

RedMax 532121748

WASHER

$4.99

$

In Stock, Qty 10

0

206

RedMax 532448596

BRACKET.MOUNT.CRUISE.LATCH

$5.99

$

In Stock, only 1 left!

0

207

RedMax 587031401

LATCH.CONTROL.CRUISE.TEX

$

$

Not available

208

RedMax 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

209

RedMax 590527801

ROD ROD.CRUISECONTROL.GT.HUSQ/

$

$

Not available

210

RedMax 532197860

ROCKER.ASM.PEDAL.CONTR

$51.99

$

Usually ships in 3-10 days

0

211

RedMax 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

213

RedMax 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

Usually ships in 3-10 days

0

214

RedMax 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

Usually ships in 3-10 days

0

215

RedMax 586606502

PEDAL.COVER.REVERSE.CRD.X428BK

$20.99

$

Usually ships in 3-10 days

0

221

RedMax 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 3 left!

0

222

RedMax 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

225

RedMax 532403319

KEEPER.BELT.TRANSAXLE.K46

$

$

Not available

227

RedMax 817490512

SCREW
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

231

RedMax 532407287

IDLER.V-GROOVE.1.688.OFFSET

$22.99

$

In Stock, only 1 left!

0

325

RedMax 585668502

BRACKET.TRQ.STP.46.20".TIRE.LH

$

$

Not available

326

RedMax 585670802

BRCKT.PNT.TRQ.STP.46.20TIRE.RH

$

$

Not available

334

RedMax 585882202

SWAY.ROD.BRACKET.K46.X431

$13.99

$

In Stock, only 1 left!

0

336

RedMax 587259601

BOLT.5/16-18X1-3/4.FLANGED.HEX
(Superseded to 587259602)

$4.99

$

In Stock, only 1 left!

0
