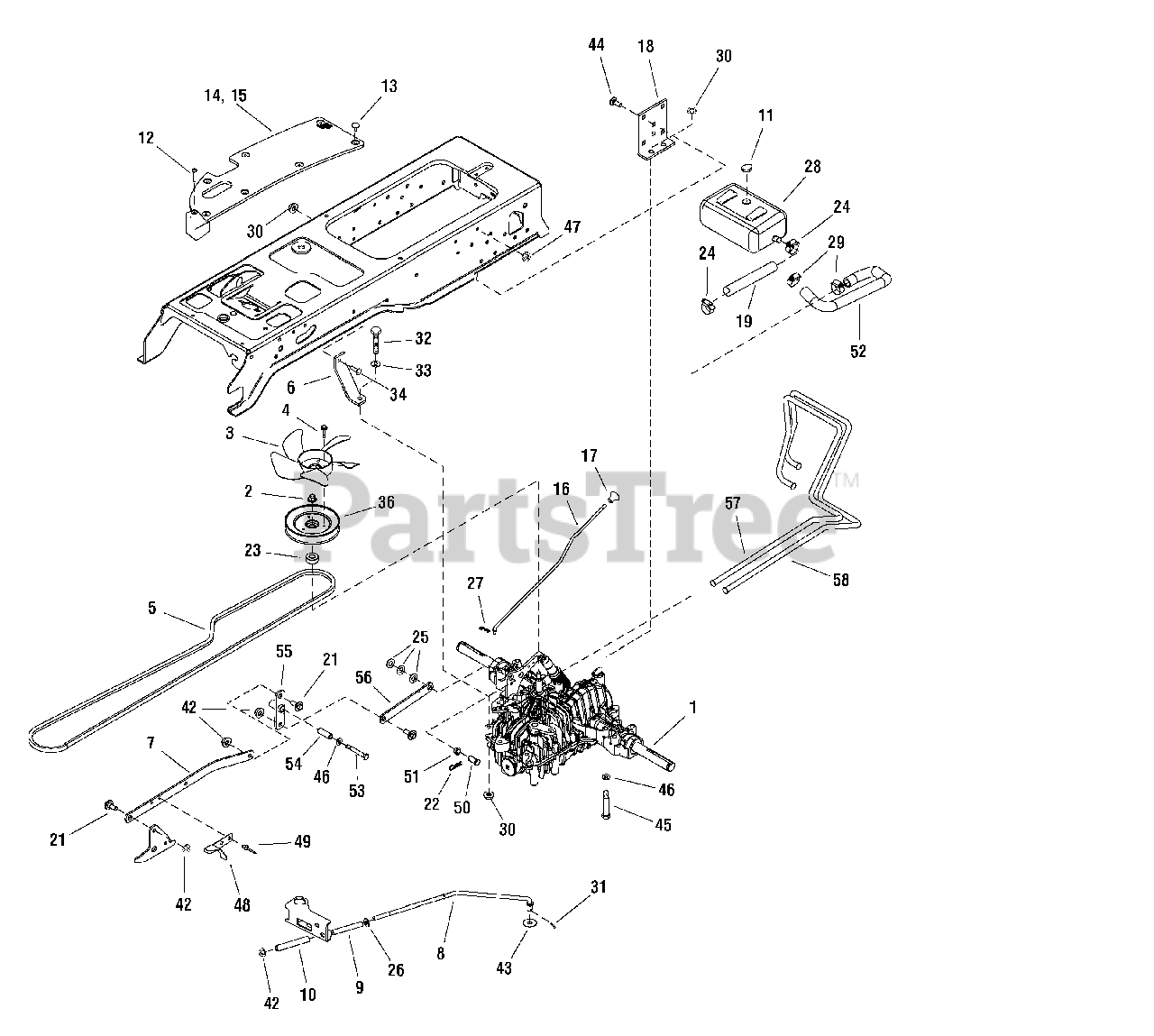

YT 2350 (2690765) - Snapper YT400 Series 50" Yard Tractor, 23hp Transmission Group Parts Diagram

YT400 Series 50" Yard Tractor, 23hp

Transmission Group Parts Diagram

  • Title

1

Snapper 1733478

TRANSMISSION, 4WD Tuff Torq K664
(Superseded to 1755452YP)

$2714.99

$

Usually ships in 2-12 days

0

2

Snapper 1722194

PULLEY
(Superseded to 1722194SM)

$86.99

$

In Stock, only 1 left!

0

3

Snapper 1719233

FAN
(Superseded to 1719233SM)

$27.99

$

Usually ships in 2-12 days

0

4

Snapper 1933958

SCREW, Hex Taptite 1/4-20 x 1-1/2
(Superseded to 1933958SM)

$4.49

$

In Stock, only 1 left!

0

5

Snapper 1721392

V-Belt, 94.05" EL
(Superseded to 1721392SM)

$54.99

$

In Stock, Qty 20+

0

6

Snapper 1721593A

STRAP, Torque
(Superseded to 1721593ASM)

$32.99

$

Usually ships in 2-12 days

0

7

Snapper 1733318A

CONTROL ARM, Front
(Superseded to 1733318ASM)

$122.99

$

Usually ships in 2-12 days

0

8

Snapper 1721424

ROD, Brake
(Superseded to 1721424SM)

$13.99

$

Usually ships in 2-12 days

0

9

Snapper 1722684

SPRING, Compression
(Superseded to 1722684SM)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 1729277

SPRING, Compression
(Superseded to 1729277SM)

$6.99

$

In Stock, only 1 left!

0

11

Snapper 1722711

CAP, Tank
(Superseded to 1722711SM)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 1960676

SCREW, Pan Hd Torx,Taptite, 1/4-20 x 1-1/4
(Superseded to 1960676SM)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 1704351

FASTENER
(Superseded to 1704351SM)

$4.99

$

In Stock, only 4 left!

0

14

Snapper 1722345

PAD, Footrest LH
(Superseded to 1722345SM)

$23.99

$

Usually ships in 2-12 days

0

15

Snapper 1722173

PAD, Footrest RH
(Superseded to 1722173SM)

$32.99

$

Usually ships in 2-12 days

0

16

Snapper 1721622

ROD, Free Wheel
(Superseded to 1721622SM)

$15.99

$

Usually ships in 2-12 days

0

17

Snapper 1723126

KNOB, Internal Thread
(Superseded to 1723126SM)

$6.99

$

In Stock, only 2 left!

0

18

Snapper 1721728A

BRACKET, Transmission
(Superseded to 1721728ASM)

$14.99

$

Usually ships in 2-12 days

0

19

Snapper 1733531

HOSE, Return
(Superseded to 1733531SM)

$45.99

$

Usually ships in 2-12 days

0

21

Snapper 1732129

BOLT, SHLDR, 3/8-16 x 0.94
(Superseded to 1732129SM)

$5.99

$

Usually ships in 2-12 days

0

22

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 1734337

SPACER, 0.607 ID x 1.25 OD x 0.47
(Superseded to 1734337SM)

$16.99

$

In Stock, only 1 left!

0

24

Snapper 2860266

CLAMP, Hose
(Superseded to 2860266SM)

$7.49

$

Usually ships in 2-12 days

0

25

Snapper 80003590

WASHER, Flat, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 1924940

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 1722460

RETAINER, Pin
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

28

Snapper 1732989

EXPANSION TANK
(Superseded to 1732989SM)

$60.99

$

Usually ships in 2-12 days

0

29

Snapper 1723214

CLAMP, Hose Worm #12
(Superseded to 1723214SM)

$5.99

$

Usually ships in 2-12 days

0

30

Snapper 1960686

NUT, Hex ESNA Flange 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

31

Snapper 1918447

PIN, Cotter, .094 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 1921719

CAPSCREW, Hex Hd, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

33

Snapper 1960141

WASHER, Flat 5/16 x 7/8 x 1/8
(Superseded to 1960141SM)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

36

Snapper 1719968

NUT, Hex Flange, M10-1.50
(Superseded to 1719968SM)

$3.49

$

Usually ships in 2-12 days

0

42

Snapper 1960687

NUT, Hex ESNA Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper 1918267

WASHER
(Superseded to 1918267SM)

$3.99

$

In Stock, only 1 left!

0

44

Snapper 1931350

BOLT, Carriage 3/8- 16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

45

Snapper 1960590

CAPSCREW, Hex Hd 5/16-18 x 3
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

46

Snapper 1919326

WASHER, Flat 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

47

Snapper 1960637

NUT, Hex Keps 3/8-16
(Superseded to 1960637SM)

$3.49

$

In Stock, only 1 left!

0

48

Snapper 1727215A

ACTUATOR, Switch
(Superseded to 1727215ASM)

$21.99

$

Usually ships in 2-12 days

0

49

Snapper 1960241

RIVET, Pop 1/4 x 1/2
(Superseded to 1960241SM)

$5.49

$

Usually ships in 2-12 days

0

50

Snapper 1724107

PIN, Clevis 1/2
(Superseded to 1724107SM)

$6.49

$

Usually ships in 2-12 days

0

51

Snapper 1722648

BUSHING, Nyliner
(Superseded to 1722648SM)

$6.99

$

Usually ships in 2-12 days

0

52

Snapper 1722468

HOSE, Hydraulic
(Superseded to 1755802YP)

$82.99

$

Usually ships in 2-12 days

0

53

Snapper 80004003

CAPSCREW, Hex Hd 5/16-18 x 2-1/4
(Superseded to 703177)

Note: (Was 1921160)

$3.49

$

Usually ships in 2-12 days

0

54

Snapper 1713588

SPACER, 1-1/2
(Superseded to 1713588SM)

$8.49

$

Usually ships in 2-12 days

0

55

Snapper 1733320A

PIVOT, Control Assy 4WD
(Superseded to 1733320ASM)

$50.99

$

Usually ships in 2-12 days

0

56

Snapper 1733525A

ARM, Control Rear
(Superseded to 1737020ASM)

$12.99

$

Usually ships in 2-12 days

0

57

Snapper 1733483

TUBE, Front Trans. To Bottom Axle
(Superseded to 1733483SM)

$110.99

$

Usually ships in 2-12 days

0

58

Snapper 1733484

TUBE, Rear Trans. To Top Axle
(Superseded to 1733484SM)

$104.99

$

Usually ships in 2-12 days

0
