YT 2350 (2690765) - Snapper YT400 Series 50" Yard Tractor, 23hp 50" Mower Deck - Height Adjust Group Parts Diagram

YT400 Series 50" Yard Tractor, 23hp

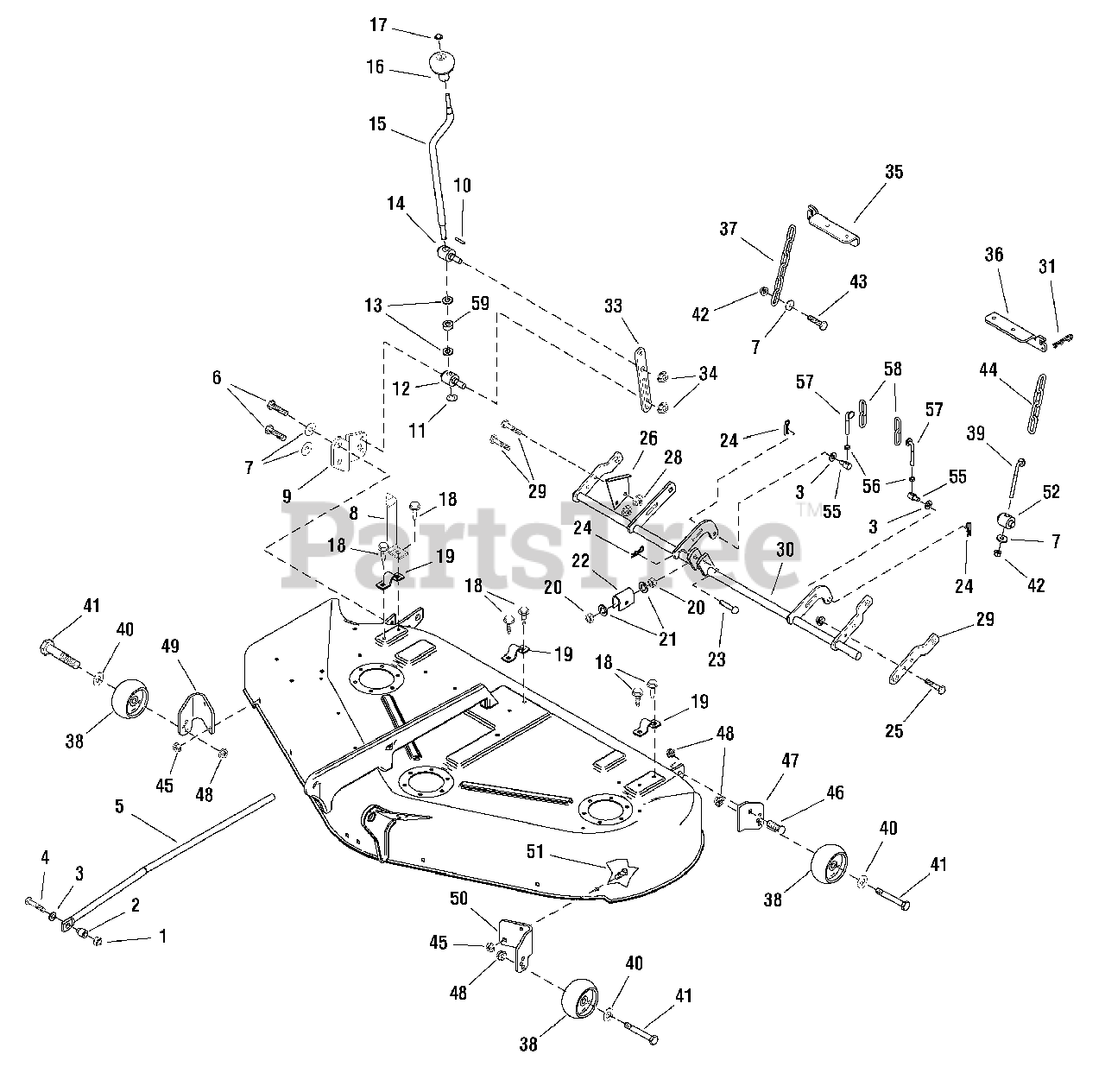

50" Mower Deck - Height Adjust Group Parts Diagram

  • Title

1

Snapper 2860681

NUT, Hex Toplock Spiralock Flange, 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 7

0

2

Snapper 1706644

SPACER, 3/8 x 3/4 x 15/16
(Superseded to 1706644SM)

$8.49

$

In Stock, only 2 left!

0

3

Snapper 80003621

WASHER, 3/4
(Superseded to 703878)

Note: (Was 1924940)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 1922606

CAPSCREW, Hex Head 3/8-16 x 1-3/4 G8
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

5

Snapper 1722995

ROD, Adjusting
(Superseded to 1722995SM)

$41.99

$

Usually ships in 2-12 days

0

6

Snapper 1927187

SCREW, Hex Washer Head Taptite 5/16-18 x 1
(Superseded to 1927187SM)

$4.49

$

In Stock, only 4 left!

0

7

Snapper 80003525

WASHER, 5/16
(Superseded to 703298)

Note: (Was 1919381)

$4.49

$

In Stock, only 2 left!

0

8

Snapper 1720643A

INDICATOR, Cutting Height
(Superseded to 1720643ASM)

$19.99

$

In Stock, only 2 left!

0

9

Snapper 1734771A

SUPPORT, Roller, R.H.
(Superseded to 1734771AYP)

$19.99

$

Usually ships in 2-12 days

0

10

Snapper 2816001

PIN, Spring
(Superseded to 2816001SM)

$4.49

$

In Stock, Qty 11

0

11

Snapper 1704097

WASHER, Detent
(Superseded to 1704097SM)

$4.49

$

In Stock, Qty 11

0

12

Snapper 1733286

TRUNNION, 1-1/4
(Superseded to 1733257SM)

$28.99

$

Usually ships in 2-12 days

0

13

Snapper 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

14

Snapper 1733258

TRUNNION, L.H. Thread, 1-1/4
(Superseded to 1733258SM)

$

$

Not available

15

Snapper 1719901

CRANK, Height Adjustment
(Superseded to 1719901SM)

$48.99

$

In Stock, only 1 left!

0

16

Snapper 1714084

KNOB, Spinner
(Superseded to 1714084SM)

$12.99

$

In Stock, only 1 left!

0

17

Snapper 1960093

NUT, Push Pal 3/8 Stud Capped
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 1664847

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 1665374BM

STRAP
(Superseded to 1665374SM)

$7.99

$

Usually ships in 2-12 days

0

20

Snapper 1915726

NUT, Hex 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

21

Snapper 1924366

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 1706645A

TRUNNION
(Superseded to 1706645ASM)

$8.49

$

Usually ships in 2-12 days

0

23

Snapper 2118053

PIN, Round Head Drilled 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

24

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 1921977

CAPSCREW, Hex Head 5/16-18 x 1-1/4 G5
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

26

Snapper 1704116A

BRACKET, Height Of Cut 16GA
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

28

Snapper 80002728

NUT, Hex Flange 5/16-18 Whiz Lock Small
(Superseded to 703409)

Note: (Was 1931277)

$5.49

$

In Stock, Qty 20+

0

29

Snapper 1704083A

ARM, Rear R.H.
(Superseded to 1704083ASM)

$13.99

$

In Stock, only 1 left!

0

30

Snapper 1727139A

SHAFT ASSEMBLY, Rocker
(Superseded to 1727139ASM)

$233.99

$

Usually ships in 2-12 days

0

31

Snapper 1960033

CLIP, Hair Pin
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 1727143A

STOP, Height Adjusting
(Superseded to 1727143ASM)

$12.99

$

Usually ships in 2-12 days

0

34

Snapper 1930644

NUT, Hex Flange 1/2-13 Two-Way Lock
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

35

Snapper 1727102A

HANGER, RH
(Superseded to 1727102ASM)

$30.99

$

Usually ships in 2-12 days

0

36

Snapper 1727103A

HANGER, LH
(Superseded to 1727103ASM)

$24.99

$

Usually ships in 2-12 days

0

37

Snapper 1708266A

CHAIN, Link
(Superseded to 1708266ASM)

$9.99

$

Usually ships in 2-12 days

0

38

Snapper 1714760

WHEEL
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

39

Snapper 7028728

ROD, Height Adjusting
(Superseded to 703827)

Note: (was 1724959)

$10.99

$

In Stock, Qty 12

0

40

Snapper 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

41

Snapper 2108765

BOLT, Wheel 3/8-16
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

42

Snapper 1960686

NUT, Hex Flange 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

43

Snapper 1930570

CAPSCREW, Hex Head 5/16-18 x 1-1/2 G8
(Superseded to 1930570SM)

$4.49

$

Usually ships in 2-12 days

0

44

Snapper 1708088A

CHAIN, Link
(Superseded to 1708088ASM)

$11.99

$

Usually ships in 2-12 days

0

45

Snapper 80003641

NUT, Hex Flange 5/16-18 Whiz Lock Large
(Superseded to 703330)

Note: (Was 1927557)

$4.99

$

In Stock, Qty 14

0

46

Snapper 1931350

CARRIAGE BOLT, 3/8-16 x 1 G5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

47

Snapper 1727135A

SUPPORT, Roller L.H.
(Superseded to 1727135ASM)

$9.49

$

Usually ships in 2-12 days

0

48

Snapper 1960687

NUT, Hex Flange 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

49

Snapper 1719853A

BRACKET, Wheel Gauge R.H.
(Superseded to 1719853ASM)

$29.99

$

In Stock, only 1 left!

0

50

Snapper 1719852A

BRACKET, Wheel Gauge L.H.
(Superseded to 1719852ASM)

$26.99

$

In Stock, only 1 left!

0

51

Snapper 1931334

CARRIAGE BOLT, 5/16-18 x 7/8 G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

52

Snapper 1724009

TRUNNION
(Superseded to 1724009SM)

$

$

Not available

55

Snapper 1731382

TRUNNION
(Superseded to 1731382SM)

$34.99

$

In Stock, only 2 left!

0

56

Snapper 1920161

NUT, Hex Jam 5/16-18
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

57

Snapper 1731384

ROD, Height Adjusting 5/16-18
(Superseded to 1737124YP)

$

$

Not available

58

Snapper 1731383A

CHAIN, Link
(Superseded to 1731383ASM)

$6.49

$

In Stock, only 2 left!

0

59

Snapper 1716953

SPACER, 7/16 ID, 3/4 OD x 3/8
(Superseded to 1716953SM)

$13.99

$

In Stock, only 2 left!

0
