YT 2348 F (960430237-00) - RedMax 48" Yard Tractor, 23hp (2017-09) STEERING Parts Diagram

48" Yard Tractor, 23hp

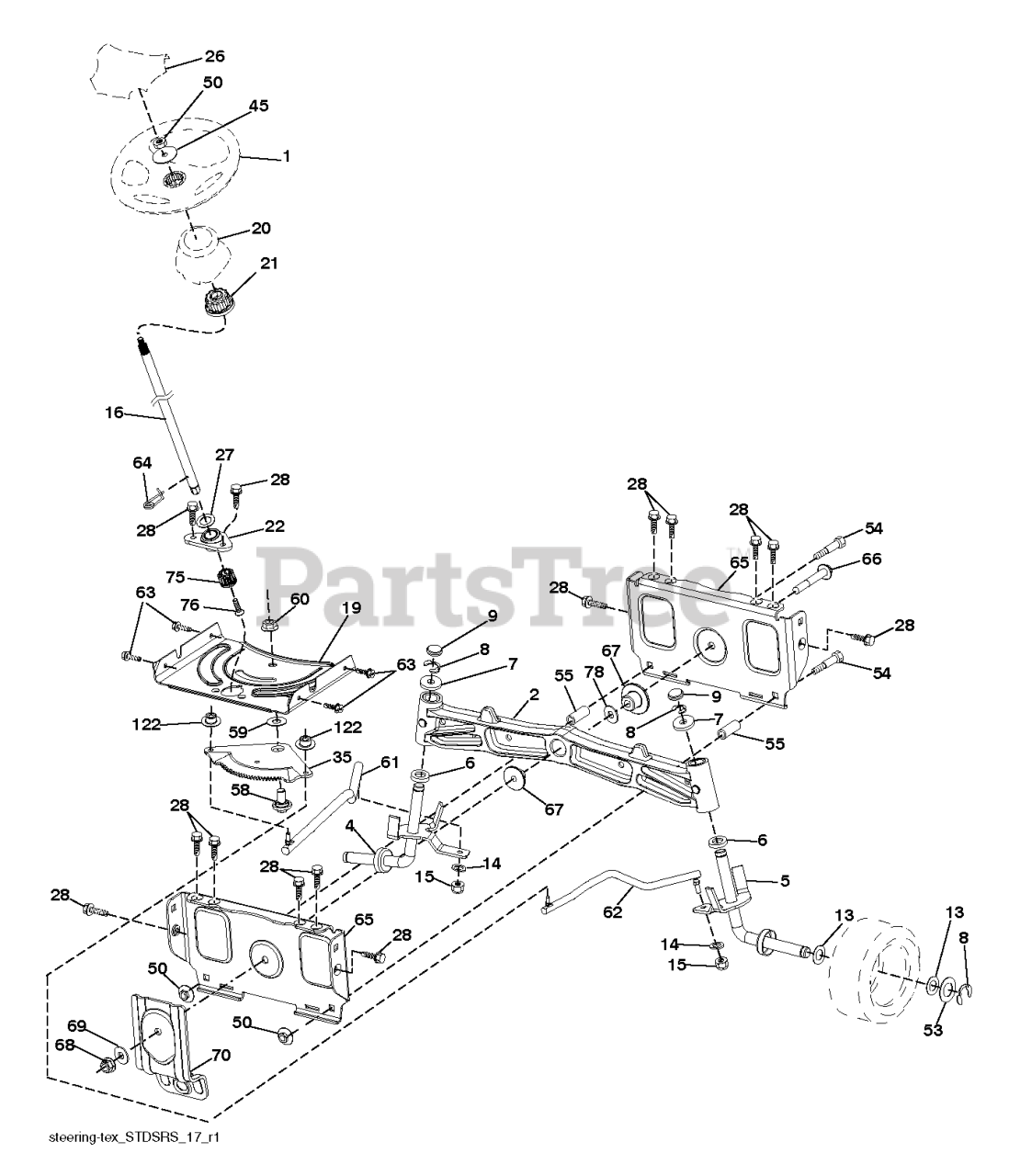

STEERING Parts Diagram

  • Title

1

RedMax 532424146

WHEEL.STEERING.STDSRR.BLK/OV

$93.99

$

In Stock, only 1 left!

0

2

RedMax 532195968

AXLE.CAST.IRON
(Superseded to 532413591)

$145.99

$

In Stock, only 2 left!

0

4

RedMax 532403089

SPINDLE.WELDED.LH.16"TEX

Note: LH

$53.99

$

Usually ships in 3-10 days

0

5

RedMax 532403090

SPINDLE.WELDED.RH.16"TEX

Note: RH

$53.99

$

Usually ships in 3-10 days

0

6

RedMax 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

RedMax 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

8

RedMax 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

13

RedMax 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

15

RedMax 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

16

RedMax 587016002

SHAFT.STEER.2HIGH.SPLND.PLATED
(Superseded to 587738904)

$40.99

$

In Stock, Qty 14

0

19

RedMax 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

20

RedMax 532424740

BOOT.STRNG.PREDATOR.YT/GT.428

$6.99

$

In Stock, only 1 left!

0

21

RedMax 586840201

ADAPTER.WHEEL.STEER.SPLND.ALUM
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

22

RedMax 585029802

BEARING.SHAFT.STEER.LOWER.625
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

26

RedMax 532424691

INSERT, WHEEL STEERING

$7.99

$

Usually ships in 3-10 days

0

27

RedMax 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

28

RedMax 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

35

RedMax 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

45

RedMax 587016401

WASHER.3/8ID.2-3/8OD.12GA.PLTD

$4.99

$

Usually ships in 3-10 days

0

50

RedMax 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

53

RedMax 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

54

RedMax 874760636

BOLT

$6.49

$

Usually ships in 3-10 days

0

55

RedMax 532414736

SPACER.BRACE.AXLE

$6.99

$

In Stock, Qty 5

0

58

RedMax 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0

59

RedMax 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

60

RedMax 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

61

RedMax 588794402

LINK.ASM.DRAG.ADJUST.LH.PLATED

$

$

Not available

62

RedMax 588794502

LINK.ASM.DRAG.ADJUST.RH.PLATED

$

$

Not available

63

RedMax 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

64

RedMax 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

65

RedMax 532194734

BRACE.AXLE.FRONT.NLT/N

$43.99

$

In Stock, only 1 left!

0

66

RedMax 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

67

RedMax 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

68

RedMax 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 14

0

69

RedMax 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

70

RedMax 585338801

BRACKET.FRT.DECK.SUSP.RR.MT431

$9.99

$

Usually ships in 3-10 days

0

75

RedMax 580683701

PINION.ZINC PLATED
(Superseded to 587738906)

$5.99

$

In Stock, only 3 left!

0

76

RedMax 580683601

SCREW HEAD SOCKET LRVB

$4.99

$

Usually ships in 3-10 days

0

78

RedMax 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

122

RedMax 532444962

CAP.GEAR.SECTOR.TEX
(Superseded to 583576601)

$6.49

$

In Stock, only 3 left!

0
