YT 2142 F (960430236-00) - RedMax 42" Yard Tractor, 21hp (2017-05) MOWER DECK / CUTTING DECK Parts Diagram

42" Yard Tractor, 21hp

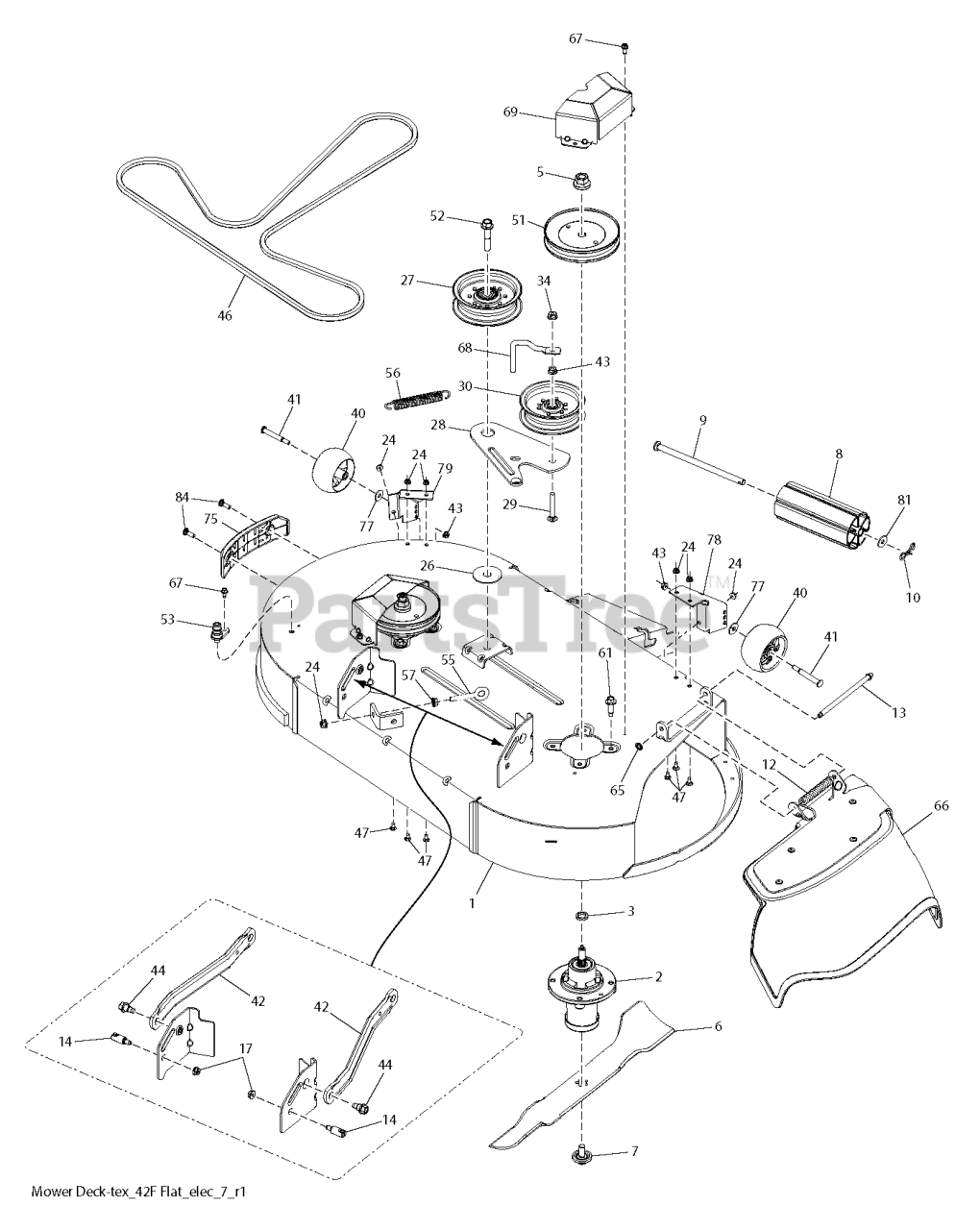

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

--

RedMax 591118001

DECK ASM.SVC 42F.EL.GW.WP.428

$1481.99

$

Usually ships in 3-10 days

0

1

RedMax 582878206

DECK SVC CLEARCUT TRACTOR X428

$

$

Not available

2

RedMax 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 8

0

3

RedMax 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

5

RedMax 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

6

RedMax 586918101

BLADE.42.FCS.BAGGING.BLADE.RAW
(Superseded to 586918102)

$31.99

$

In Stock, Qty 6

0

7

RedMax 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

8

RedMax 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 13

0

9

RedMax 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 19

0

10

RedMax 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

12

RedMax 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 10

0

13

RedMax 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

14

RedMax 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

17

RedMax 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

24

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

26

RedMax 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

27

RedMax 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 14

0

28

RedMax 586874002

ARM.42"FCS.CLUTCHING.X431

$20.99

$

In Stock, only 1 left!

0

29

RedMax 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

30

RedMax 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 14

0

34

RedMax 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

40

RedMax 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

41

RedMax 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

42

RedMax 532195185

ARM.SUSPENSION.MOWER

$18.99

$

Usually ships in 3-10 days

0

43

RedMax 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

RedMax 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

46

RedMax 587270101

BELT.42.FCS.TRACTOR.DECK.DRIVE

$51.99

$

In Stock, Qty 8

0

47

RedMax 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

51

RedMax 532199791

PULLEY MANDREL 5.0"

$31.99

$

In Stock, only 2 left!

0

52

RedMax 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

53

RedMax 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

55

RedMax 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

In Stock, only 2 left!

0

56

RedMax 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV

$7.99

$

In Stock, Qty 6

0

57

RedMax 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

61

RedMax 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 16

0

65

RedMax 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

66

RedMax 587305705

DEFLECTOR 42 FCS DEFLECTOR ASM

$80.99

$

Usually ships in 3-10 days

0

67

RedMax 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

68

RedMax 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

69

RedMax 586936806

COVER 42 FCS MANDREL COVER BLA

$5.99

$

Usually ships in 3-10 days

0

75

RedMax 582683202

BUMPER 42 CLEARCUT TRIM SIDE A

$9.49

$

Usually ships in 3-10 days

0

77

RedMax 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

78

RedMax 501808306

BRACKET 42 FCS GAUGE WHEEL BRA

$20.99

$

Usually ships in 3-10 days

0

79

RedMax 590439007

BRACKET 42 FCS GAUGE WHEEL BRA

$20.99

$

Usually ships in 3-10 days

0

81

RedMax 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 5

0

84

RedMax 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 5

0
