YT 2142 F (960430236-00) - RedMax 42" Yard Tractor, 21hp (2017-05) ELECTRICAL Parts Diagram

42" Yard Tractor, 21hp

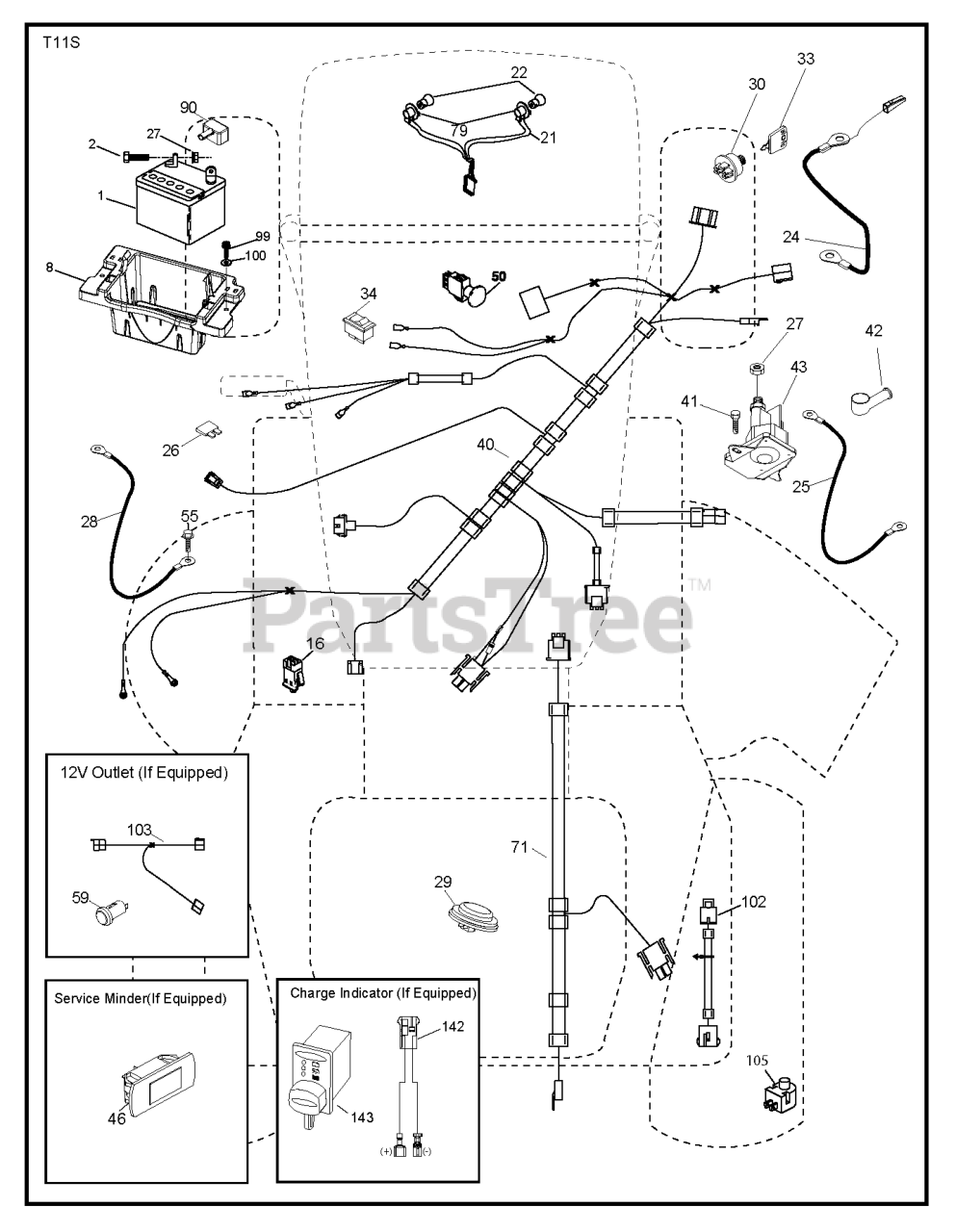

ELECTRICAL Parts Diagram

  • Title
1

RedMax 532163465

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

RedMax 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

8

RedMax 587205101

TRAY.BATTERY BOX.FRONT

$17.99

$

Usually ships in 3-10 days

0

16

RedMax 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 5

0

21

RedMax 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

22

RedMax 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 585555601

CABLE.FRBATT.W/WIRE.8GA.8

$9.49

$

Usually ships in 3-10 days

0

25

RedMax 585555501

CABLE.STARTER.8GA.17.5

$9.49

$

In Stock, only 2 left!

0

26

RedMax 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

27

RedMax 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

RedMax 532416588

CABLE.GROUND.21"BLK.8GA.90T

$13.99

$

In Stock, only 2 left!

0

29

RedMax 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

30

RedMax 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

33

RedMax 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA

$9.99

$

Usually ships in 3-10 days

0

34

RedMax 532110712

SWITCH LT

$9.49

$

In Stock, only 2 left!

0

40

RedMax 501132901

HARNESS HARNESS..DASH.ING.ELEC

$68.99

$

Usually ships in 3-10 days

0

41

RedMax 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

42

RedMax 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

RedMax 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 16

0

46

RedMax 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 5

0

50

RedMax 582107601

SWITCH.PTO.8TERMINAL.STD.BLK

$28.99

$

In Stock, Qty 8

0

55

RedMax 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

71

RedMax 532194276

HARNESS-CHASSIS SUB

$40.99

$

Usually ships in 3-10 days

0

79

RedMax 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

90

RedMax 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

99

RedMax 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

100

$6.49

$

Usually ships in 3-10 days

0

102

RedMax 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

Usually ships in 3-10 days

0

105

RedMax 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0
