YT 2040 (2690114) - Snapper 40" Yard Tractor, 20hp Hood, Grille & Dash Group Parts Diagram

40" Yard Tractor, 20hp

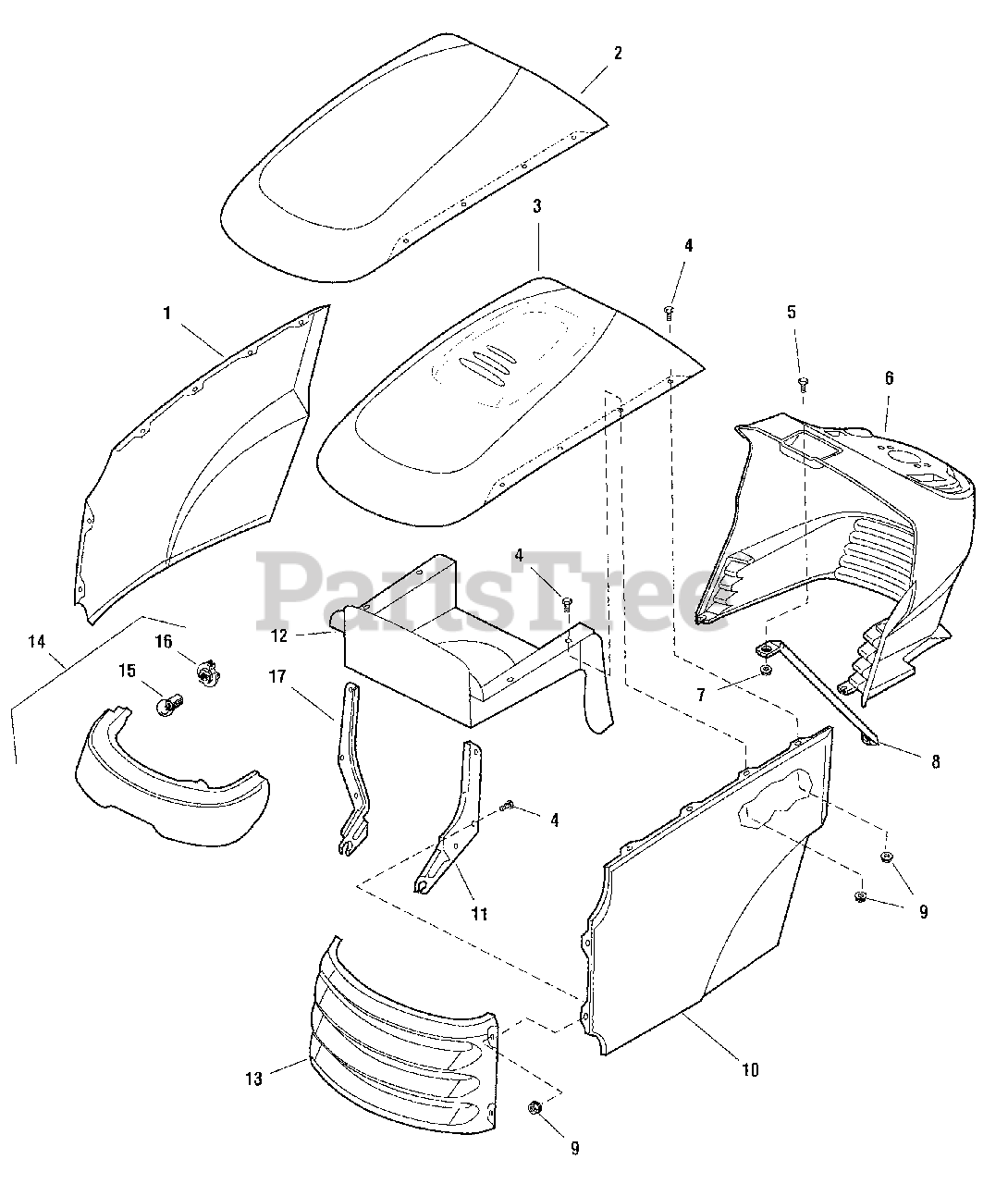

Hood, Grille & Dash Group Parts Diagram

  • Title
1

Snapper 1721804CD

PANEL, RH Side

$

$

Currently unavailable

1

Snapper 1721804D

PANEL, RH Side, Red
(Superseded to 1721804DSM)

$170.99

$

Usually ships in 2-12 days

0

2

Snapper 1721801CD

HOOD, no Louvers

$

$

Currently unavailable

2

Snapper 1721801D

HOOD, no Louvers, Red
(Superseded to 1728031DSM)

$311.99

$

In Stock, only 1 left!

0

3

Snapper 1722110CD

HOOD, with Louvers

$

$

Currently unavailable

3

Snapper 1722110D

HOOD, with Louvers, Red
(Superseded to 1722110DSM)

$304.99

$

Usually ships in 2-12 days

0

4

Snapper 1960295

CAPSCREW, Hex Head Flange Lock,1/4-20 x 5/8
(Superseded to 1960295SM)

$4.49

$

In Stock, only 1 left!

0

5

Snapper 1960392

SCREW, Phillips Head, #10-24 x 1/2
(Superseded to 1960392SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 1686910

DASHBOARD, With Hole, Black
(Superseded to 1687056SM)

$

$

Not available

7

Snapper 1933896

NUT, Hex Nylock,#10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

8

Snapper 1723123

ROD, Dash Support
(Superseded to 1723123SM)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper 1930641

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 1721803CD

PANEL, LH Side

$

$

Currently unavailable

10

Snapper 1721803D

PANEL, LH Side, Red
(Superseded to 1721803DSM)

$170.99

$

Usually ships in 2-12 days

0

11

Snapper 1721808A

HINGE, LH
(Superseded to 1721808ASM)

$29.99

$

In Stock, only 3 left!

0

12

Snapper 1722391A

DUCT, Air Inlet
(Superseded to 7102326YP)

$131.99

$

In Stock, only 1 left!

0

13

$

$

Currently unavailable

13

Snapper 1721802D

GRILLE, Red
(Superseded to 1721802DSM)

$120.99

$

Usually ships in 2-12 days

0

14

Snapper 1721810

HEADLIGHT ASSEMBLY, (Includes Ref. Nos. 15 & 16)
(Superseded to 1721810SM)

$164.99

$

Usually ships in 2-12 days

0

15

Snapper 1677371

BULB, Headligh
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

16

Snapper 1723451

SOCKET, Headlight
(Superseded to 1723451SM)

$28.99

$

In Stock, only 1 left!

0

17

Snapper 1721809A

HINGE, RH
(Superseded to 1721809ASM)

$29.99

$

In Stock, only 1 left!

0
