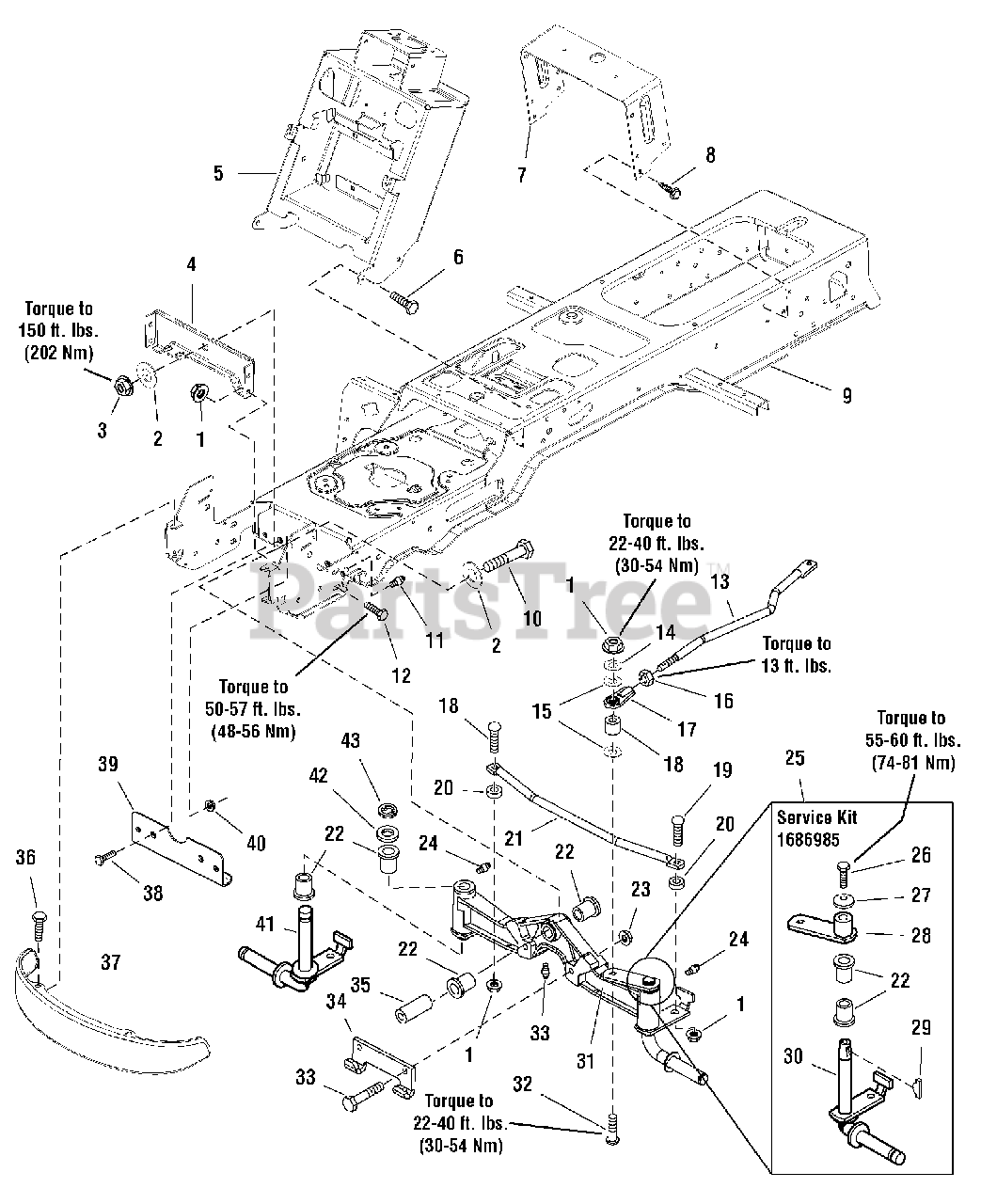

YT 2040 (2690114) - Snapper 40" Yard Tractor, 20hp Frame Group Parts Diagram

40" Yard Tractor, 20hp

Frame Group Parts Diagram

  • Title

1

Snapper 1930645

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

2

Snapper 1960035

WASHER
(Superseded to 1960035SM)

$4.49

$

In Stock, only 2 left!

0

3

Snapper 2960646

NUT, Hex Flange, 5/8-11
(Superseded to 2860646SM)

$10.99

$

In Stock, Qty 6

0

4

Snapper 1722212A

PLATE, Axle
(Superseded to 1722212ASM)

$33.99

$

Usually ships in 2-12 days

0

5

Snapper 1724081A

TOWER & SUPPORT ASSEMBLY
(Superseded to 1724081ASM)

$119.99

$

Usually ships in 2-12 days

0

6

Snapper 1923683

CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

7

Snapper 1723528A

SUPPORT
(Superseded to 1723528ASM)

$23.99

$

Usually ships in 2-12 days

0

8

Snapper 1664847

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 1726887

FRAME ASSEMBLY

$

$

Not available

10

Snapper 2960645

CAPSCREW, 5/8-11 x 3-1/2
(Superseded to 2860645SM)

$8.99

$

In Stock, only 3 left!

0

11

Snapper 1704314

FITTING, Grease for Wear Plate, 1/4-20, with Ball
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

12

Snapper 1933260

CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

13

Snapper 1722541

LINK, Drag
(Superseded to 1722541SM)

$31.99

$

In Stock, only 1 left!

0

14

Snapper 1922755

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

15

Snapper 1960103

WASHER
(Superseded to 1960103SM)

$4.49

$

In Stock, Qty 7

0

16

Snapper 1919262

NUT, Hex Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 1702779A

JOINT, Ball
(Superseded to 1702779SM)

$28.99

$

In Stock, Qty 12

0

18

Snapper 1708236

SPACER
(Superseded to 1708236SM)

$8.99

$

In Stock, Qty 10

0

19

Snapper 1931350

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

20

Snapper 1611705

SPACER
(Superseded to 1611705SM)

$4.49

$

In Stock, Qty 17

0

21

Snapper 1722626A

ROD, Tie
(Superseded to 1722626ASM)

$34.99

$

In Stock, only 1 left!

0

22

Snapper 1721682

BUSHING
(Superseded to 1721682SM)

$5.49

$

In Stock, Qty 20+

0

23

Snapper 1930650

NUT, Hex Flange Lock, 7/16-14
(Superseded to 1930650SM)

$5.49

$

In Stock, only 4 left!

0

24

Snapper 1704314

FITTING, Lube
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

25

Snapper 1686985

SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27,
(Superseded to 1686985SM)

$

$

Not available

26

Snapper 2823485

CAPSCREW, 3/8-16 x 7/8, GR8
(Superseded to 2823485SM)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 1663151

WASHER, Spring, 3/8
(Superseded to 1663151SM)

$14.99

$

Usually ships in 2-12 days

0

28

Snapper 1725112

HUB & ARM ASSEMBLY
(Superseded to 1725112ASM)

$149.99

$

In Stock, only 1 left!

0

29

Snapper 2830671

KEY, Woodruff
(Superseded to 2830671SM)

$8.49

$

Usually ships in 2-12 days

0

30

Snapper 1724264

SPINDLE, LH
(Superseded to 1686985SM)

$

$

Not available

31

Snapper 1722200A

AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos. 2
(Superseded to 1722200ASM)

$384.99

$

Usually ships in 2-12 days

0

32

Snapper 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 5

0

33

Snapper 1927531

CAPSCREW, Hex Head, 7/16-14 x 2, GR8
(Superseded to 1927531SM)

$5.49

$

In Stock, Qty 5

0

34

Snapper 1721918A

HOOK, "J"
(Superseded to 1721918ASM)

$31.99

$

In Stock, Qty 9

0

35

Snapper 1721752

SPACER
(Superseded to 1721752SM)

$14.99

$

In Stock, Qty 18

0

36

Snapper 1960086

SCREW, Torx Head, 5/16-18 x 7/8
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

37

Snapper 1721805A

BUMPER, Black, Steel, Standard
(Superseded to 1721805ASM)

$59.99

$

Usually ships in 2-12 days

0

37

Snapper 1723502

BUMPER, Chrome, Optional
(Superseded to 1723502SM)

$128.99

$

Usually ships in 2-12 days

0

38

Snapper 1930591

CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 10

0

39

Snapper 1724801A

PLATE, Axle Wear
(Superseded to 1724801ASM)

$26.99

$

In Stock, only 1 left!

0

40

Snapper 1931277

NUT, Hex Falnge Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

41

Snapper 1722199

SPINDLE, RH
(Superseded to 1722199AYP)

$

$

Not available

42

Snapper 1919394

WASHER
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

43

Snapper 2932577

RETAINING RING
(Superseded to 2832577SM)

$4.49

$

In Stock, Qty 20+

0
