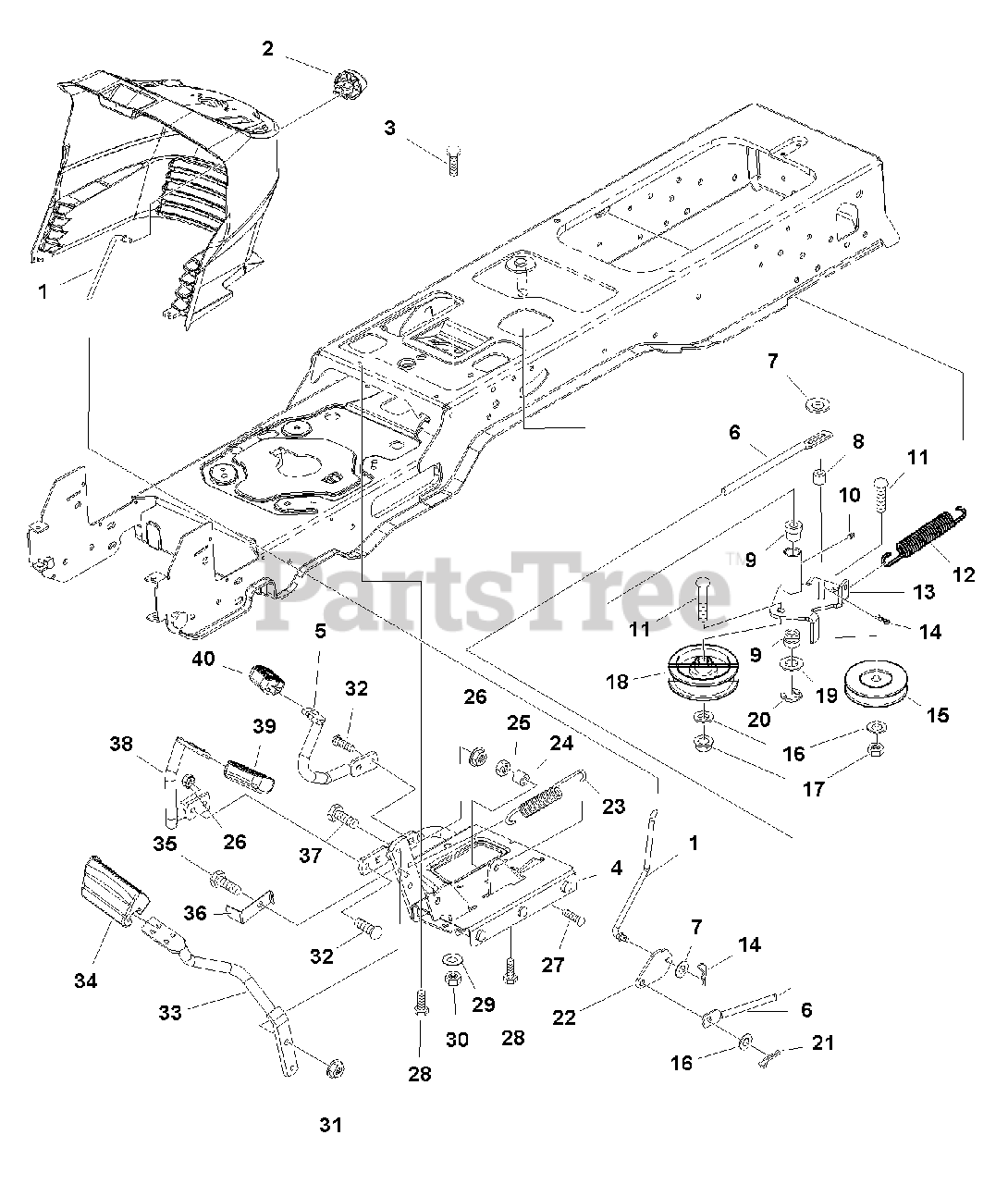

YT 2040 (2690114) - Snapper 40" Yard Tractor, 20hp Controls Group Parts Diagram

40" Yard Tractor, 20hp

Controls Group Parts Diagram

  • Title
1

Snapper 1721353

ROD, Brake
(Superseded to 1721353SM)

$18.99

$

Usually ships in 2-12 days

0

2

Snapper 1721891

KNOB, Push On, Red
(Superseded to 1721891SM)

$9.99

$

Usually ships in 2-12 days

0

3

Snapper 1930591

CAPSCREW, Hex Head Flange Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 10

0

4

Snapper 1722084

PEDAL ASSEMBLY
(Superseded to 1726763AYP)

$

$

Not available

5

Snapper 1722071A

PEDAL, Reverse
(Superseded to 1722071ASM)

$39.99

$

Usually ships in 2-12 days

0

6

Snapper 1723094

ROD, Brake (Flat Ends)
(Superseded to 1723094SM)

$13.99

$

Usually ships in 2-12 days

0

7

Snapper 1919326

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 1723242

SPACER, (Earlier Only)
(Superseded to 1723242SM)

$7.99

$

Usually ships in 2-12 days

0

9

Snapper 1663114

BUSHING
(Superseded to 1663114SM)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 1704314

FITTING, Lube, Ball Check
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 1931353

CARRIAGE BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

12

Snapper 1725250

SPRING, Extension
(Superseded to 1725250SM)

$12.99

$

In Stock, only 3 left!

0

13

Snapper 1726882

ARM & HUB ASSEMBLY, (Later, Does use Ref. No. 8)
(Superseded to 1726882SM)

$92.99

$

Usually ships in 2-12 days

0

13

Snapper 1724036

ARM & HUB ASSEMBLY, (Earlier, Requires Ref. No.8 )
(Superseded to 1726882SM)

$92.99

$

Usually ships in 2-12 days

0

14

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

15

Snapper 1721134

PULLEY ASSEMBLY, 3" OD, W/Bearing
(Superseded to 1721134SM)

$30.99

$

In Stock, Qty 20+

0

16

Snapper 1924940

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 1919439

NUT, Hex Lock ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 1721133

PULLEY,Idler, 2-3/4 OD
(Superseded to 5106480FS)

$32.99

$

In Stock, Qty 5

0

19

Snapper 1960020

WASHER
(Superseded to 1960020SM)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 1704420

RING, Clipring
(Superseded to 1704420SM)

$4.99

$

In Stock, only 2 left!

0

21

Snapper 1918447

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 1721354A

LATCH, Brake
(Superseded to 1721354ASM)

$6.99

$

Usually ships in 2-12 days

0

23

Snapper 1721995

SPRING, Extension
(Superseded to 1721995SM)

$8.49

$

Usually ships in 2-12 days

0

24

Snapper 1686612

CAM, Roller
(Superseded to 1686612SM)

$45.99

$

Usually ships in 2-12 days

0

25

Snapper 1920397

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 1960636

NUT, Hex KEPS, 5/16-18
(Superseded to 1960636SM)

$4.99

$

In Stock, only 1 left!

0

27

Snapper 1931320

CARRIAGE BOLT, 1/4-20 x 1-1/4
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

28

Snapper 1960541

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 1960541SM)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 1919381

WASHER
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper 1919438

NUT, Hex Lock ESNA, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

31

Snapper 1927557

NUT, Hex Flange Lock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

32

Snapper 1931334

CARRIAGE BOLT, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

33

Snapper 1722535A

PEDAL, Brake
(Superseded to 1722535ASM)

$23.99

$

Usually ships in 2-12 days

0

34

Snapper 1721577

PAD, Brake Pedal
(Superseded to 1721577SM)

$19.99

$

Usually ships in 2-12 days

0

35

Snapper 1923683

CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

36

Snapper 1722083A

ACTUATOR, Switch
(Superseded to 1722083ASM)

$6.49

$

Usually ships in 2-12 days

0

37

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

38

Snapper 1722070A

PEDAL, Forward
(Superseded to 1722070ASM)

$22.99

$

Usually ships in 2-12 days

0

39

Snapper 1721675

PAD, Foot Pedal Forward
(Superseded to 1721675SM)

$

$

Not available

40

Snapper 1721674

PAD, Foot Pedal Reverse
(Superseded to 1721674SM)

$7.49

$

In Stock, only 1 left!

0
