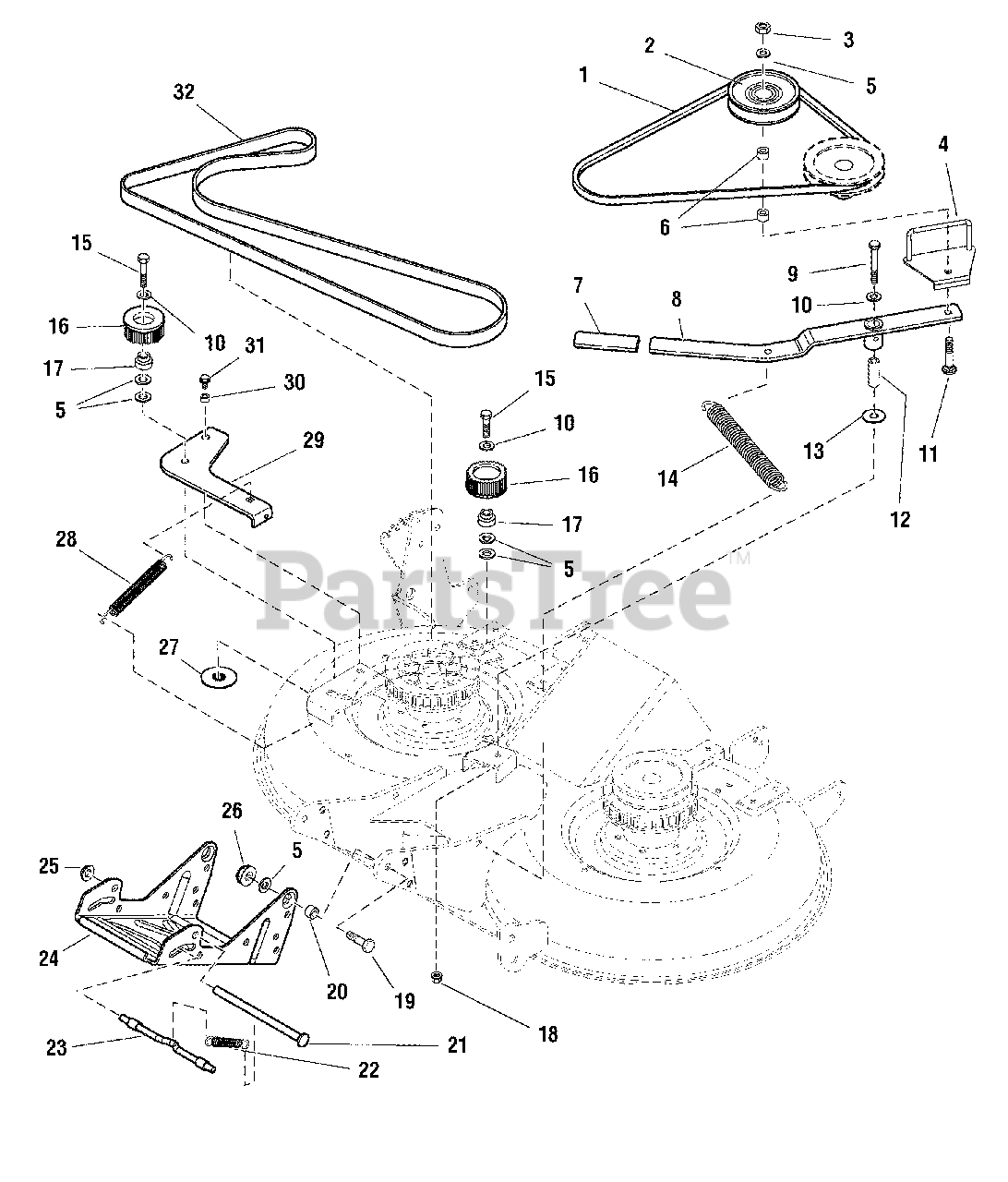

YT 2040 (2690114) - Snapper 40" Yard Tractor, 20hp 40" Mower Deck - Belt, Idle Arm & Hitch Parts Diagram

40" Yard Tractor, 20hp

40" Mower Deck - Belt, Idle Arm & Hitch Parts Diagram

  • Title

1

Snapper 1722678

V-BELT

$

$

Not available

2

Snapper 2101096

PULLEY, 4-1/2 OD
(Superseded to 2101096SM)

$59.99

$

In Stock, only 3 left!

0

3

Snapper 1919439

NUT, Hex Lock ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 1722175A

PLATE & GUIDE ASEMBLY, Belt
(Superseded to 1722175ASM)

$26.99

$

Usually ships in 2-12 days

0

5

Snapper 1924940

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 2157081

SPACER
(Superseded to 2157081SM)

$8.99

$

In Stock, only 4 left!

0

7

Snapper 1719965

GRIP, Black
(Superseded to 1719965SM)

$5.49

$

Usually ships in 2-12 days

0

8

Snapper 1720444

IDLER ARM ASSEMBLY, w/Bushings
(Superseded to 1734495SM)

$90.99

$

Usually ships in 2-12 days

0

9

Snapper 1960614

CAPSCREW, Hex Head, 3/8-16 x 3, G8
(Superseded to 1960614SM)

$4.99

$

In Stock, only 1 left!

0

10

Snapper 1922755

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

11

Snapper 1960615

CARRIAGE BOLT, 3/8-16 x 2-1/2
(Superseded to 1960615SM)

$5.49

$

In Stock, only 1 left!

0

12

Snapper 1657242

SPACER
(Superseded to 1657242SM)

$10.99

$

In Stock, Qty 10

0

13

Snapper 1933263

WASHER
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

14

Snapper 1715435

SPRING, Extension
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

15

Snapper 1923701

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 1724802

PULLEY, Idler
(Superseded to 1731892SM)

$67.99

$

Usually ships in 2-12 days

0

17

Snapper 1719221

HUB, Pulley
(Superseded to 1719221SM)

$23.99

$

Usually ships in 2-12 days

0

18

Snapper 1928352

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

19

Snapper 1921968

CAPSCREW, Hex Head, 3/8-16 1-3/8
(Superseded to 1921968SM)

$4.49

$

In Stock, only 3 left!

0

20

Snapper 2172329

SPACER
(Superseded to 1732443SM)

$5.99

$

In Stock, Qty 20+

0

21

Snapper 1713578

ROD
(Superseded to 1713578SM)

$15.99

$

In Stock, only 1 left!

0

22

Snapper 2156302

SPRING, Extension
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

23

Snapper 1715759

ROD
(Superseded to 1715759SM)

$7.99

$

In Stock, Qty 10

0

24

Snapper 1720044A

HITCH, Mower
(Superseded to 1760192AYP)

$155.99

$

In Stock, only 1 left!

0

25

Snapper 1960519

NUT, Push
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 960681

NUT, Spiral Flange Toplock, 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 7

0

27

Snapper 1721425

WASHER & LOCK NUT ASSEMBLY, 3/8-16
(Superseded to 1721425SM)

$

$

Not available

28

Snapper 1674671

SPRING, Extension
(Superseded to 1674671SM)

$24.99

$

In Stock, Qty 5

0

29

Snapper 1726387A

ARM, Idler
(Superseded to 1726387ASM)

$55.99

$

Usually ships in 2-12 days

0

30

Snapper 1666697

SPACER
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

31

Snapper 1930601

SCREW, Hex Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

32

Snapper 1724626

BELT, Timing
(Superseded to 1724626SM)

$179.99

$

Usually ships in 2-12 days

0
