YT 1942 T (960430003-00) - Husqvarna 42" Yard Tractor (2006-05) Mower Deck Parts Diagram

42" Yard Tractor

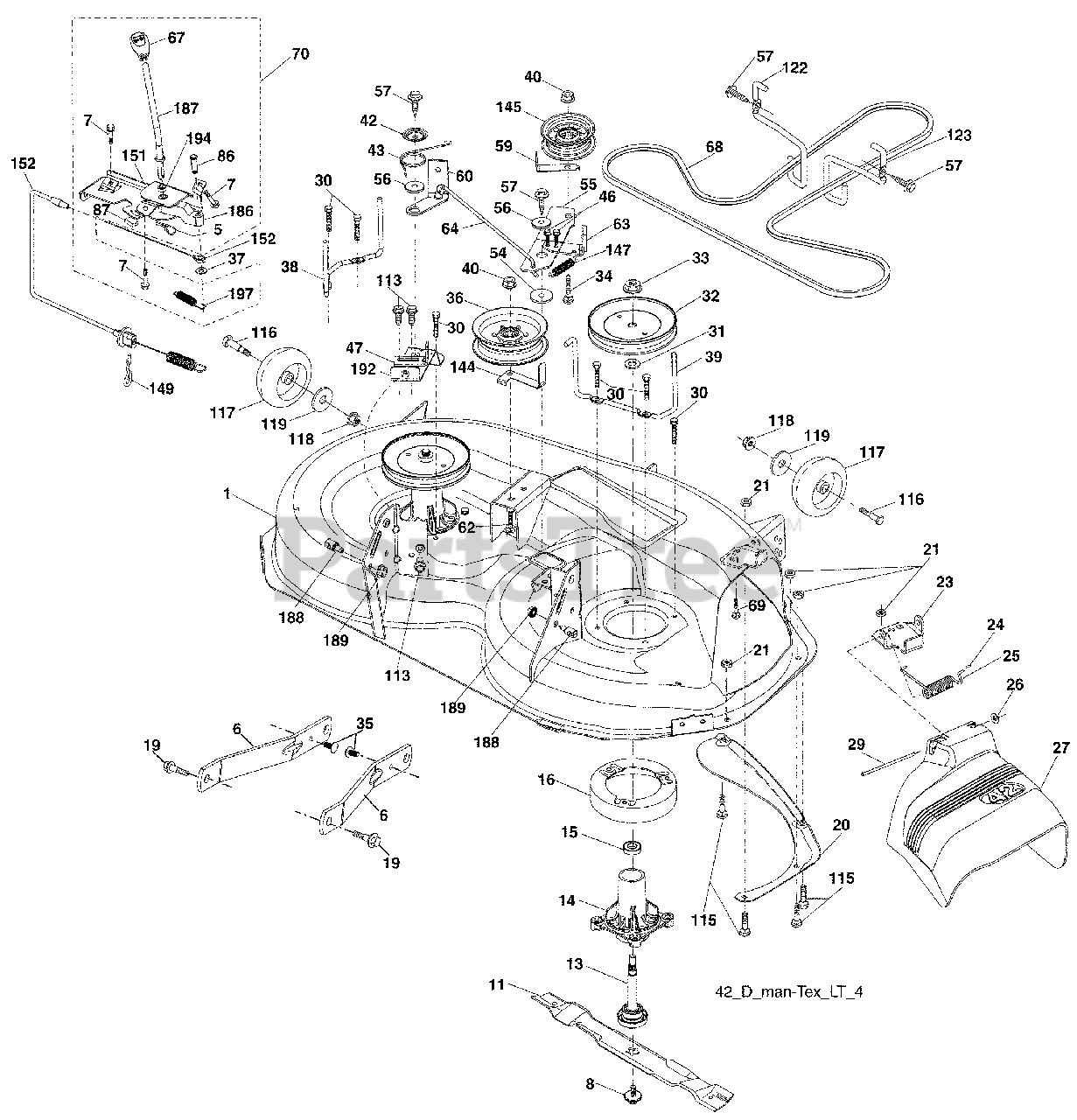

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532402999

Mower Housing
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532195186

Arm Suspension

$17.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532191611

Screw 10 x 3/4 Single Lead Hex
(Superseded to 532416358)

$

$

Not available

8

Husqvarna 532193003

Bolt/Washer asm 7/16-20 unf

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532138971

Blade, 42" Hi-Lift

Note: (For bagging or discharge)

$20.99

$

In Stock, Qty 20+

0

Husqvarna 532134149

Blade, 42" Mulching Std
(Superseded to 594892701)

$

$

Not available

Husqvarna 532139775

Blade, 42" Mulching Premium
(Superseded to 594893101)

Note: (For mulching mowers only)

$

$

Not available

13

Husqvarna 532192872

Shaft Assembly, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

14

Husqvarna 532187281

Housing, Mandrel
(Superseded to 587819701)

Note: (For better wear when mulching)

$56.99

$

In Stock, Qty 17

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 11

0

16

Husqvarna 532174493

Stripper, Mower Deck

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532196539

Bolt, Shoulder

$7.49

$

In Stock, Qty 20+

0

20

Husqvarna 532159770

Baffl e, Vortex

$

$

Not available

21

Husqvarna 873680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

Bracket, Defl ector

$9.49

$

In Stock, Qty 8

0

24

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

Spring, Torsion, Defl ector

$10.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532403004

Shield, Defl ector

$44.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw Thdrol Rolling Wsh Hd
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 532187690

Washer, Spacer

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532195945

Pulley, Mandrel

$14.99

$

In Stock, Qty 16

0

33

Husqvarna 532400234

Nut, Toplock, Flanged
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Husqvarna 872110612

Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532196106

Pulley, Idler, Flat

$39.99

$

In Stock, Qty 14

0

37

Husqvarna 819131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532199189

Keeper Belt LH Mandrel
(Superseded to 589676103)

$7.99

$

In Stock, Qty 12

0

39

Husqvarna 532199191

Keeper Belt RH Mandrel

$

$

Not available

40

Husqvarna 873900600

Nut, Lock Flg. 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532198410

Spring Torsion Brake

$6.49

$

In Stock, Qty 6

0

43

Husqvarna 532197256

Spring Torsion Retainer

$6.49

$

In Stock, Qty 7

0

46

Husqvarna 532137729

Screw Thd Roll 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532197250

Bracket Clutch Cable

$6.49

$

In Stock, only 2 left!

0

54

Husqvarna 532178515

Washer, Hardened

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532197249

Arm, Idler

$

$

Not available

56

Husqvarna 532199092

Spacer, Retainer

$6.99

$

In Stock, Qty 11

0

57

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

59

Husqvarna 532173442

Guard, Tuv Idler
(Superseded to 532141043)

$5.99

$

In Stock, only 2 left!

0

60

Husqvarna 532199478

Arm Brake Mower

$17.99

$

In Stock, Qty 16

0

62

Husqvarna 872110616

Bolt Rd Hd Sq Nk 3/8-16 unc x 2

$6.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532199478

Arm Brake Mower

$17.99

$

In Stock, Qty 16

0

64

Husqvarna 532197383

Link Brake LH
(Superseded to 532199918)

$24.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532199092

Spacer Retainer

$6.99

$

In Stock, Qty 11

0

67

Husqvarna 532403012

Handle Clutch Cable

$12.99

$

In Stock, only 1 left!

0

68

Husqvarna 532197253

V-Belt
(Superseded to 592855001)

$39.99

$

In Stock, only 4 left!

0

69

Husqvarna 872140505

Bolt
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 532199779

Clutch Asm Manual

$72.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532197798

Pin Attachment Cable
(Superseded to 532406563)

$

$

Not available

87

Husqvarna 532197802

Switch Interlock Clutch Cable

$18.99

$

In Stock, Qty 7

0

88

Husqvarna 532193232

Screw 10-24 x 5/8
(Superseded to 532400776)

$10.99

$

Usually ships in 3-10 days

0

113

Husqvarna 817000510

Screw 5/16-18

$7.49

$

In Stock, Qty 12

0

115

Husqvarna 872110505

Bolt Carr. 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 532124842

Bolt, Shoulder
(Superseded to 532004898)

$

$

Not available

117

Husqvarna 532188606

Wheel, Gauge
(Superseded to 589527401)

$11.99

$

In Stock, Qty 8

0

118

Husqvarna 873930600

Nut, Crownlock 3/8-1
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 13/32 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

122

Husqvarna 532197258

Keeper Belt Engine LH
(Superseded to 531169501)

$7.49

$

In Stock, only 4 left!

0

123

Husqvarna 532197259

Keeper Belt Engine RH

$

$

Not available

144

Husqvarna 532199204

Keeper Belt

$6.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532177968

Pulley Idler

$31.99

$

In Stock, Qty 9

0

147

Husqvarna 532401971

Spring Return

$5.99

$

In Stock, Qty 5

0

149

Husqvarna 532165898

Retainer Spring

$7.49

$

Usually ships in 3-10 days

0

151

Husqvarna 532198331

Bracket
(Superseded to 532198332)

$80.99

$

In Stock, only 1 left!

0

152

Husqvarna 532197257

Manual Clutch Cable
(Superseded to 532435111)

$34.99

$

In Stock, only 2 left!

0

186

Husqvarna 532197799

Arm Actuator
(Superseded to 532406563)

$

$

Not available

187

Husqvarna 532197800

Lever Control Clutch

$

$

Not available

188

Husqvarna 532195161

Stud Fastener

$

$

Not available

189

Husqvarna 873900500

Nut Lock Hex Flange
(Superseded to 583612701)

$

$

Not available

192

Husqvarna 532197260

Bracket Brake Stand LH

$

$

Not available

194

Husqvarna 532197797

Bearing Control Lever Clutch
(Superseded to 532406563)

$

$

Not available

197

Husqvarna 532197801

Spring Plunger Actuator
(Superseded to 532406563)

$

$

Not available

Husqvarna 532192870

Mandrel Assembly
(Superseded to 587819701)

Note: (Includes housing, shaft and shaft hardware only-pulley not included)

$56.99

$

In Stock, Qty 17

0

Husqvarna 532402022

Replacement Mower, Complete
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0
