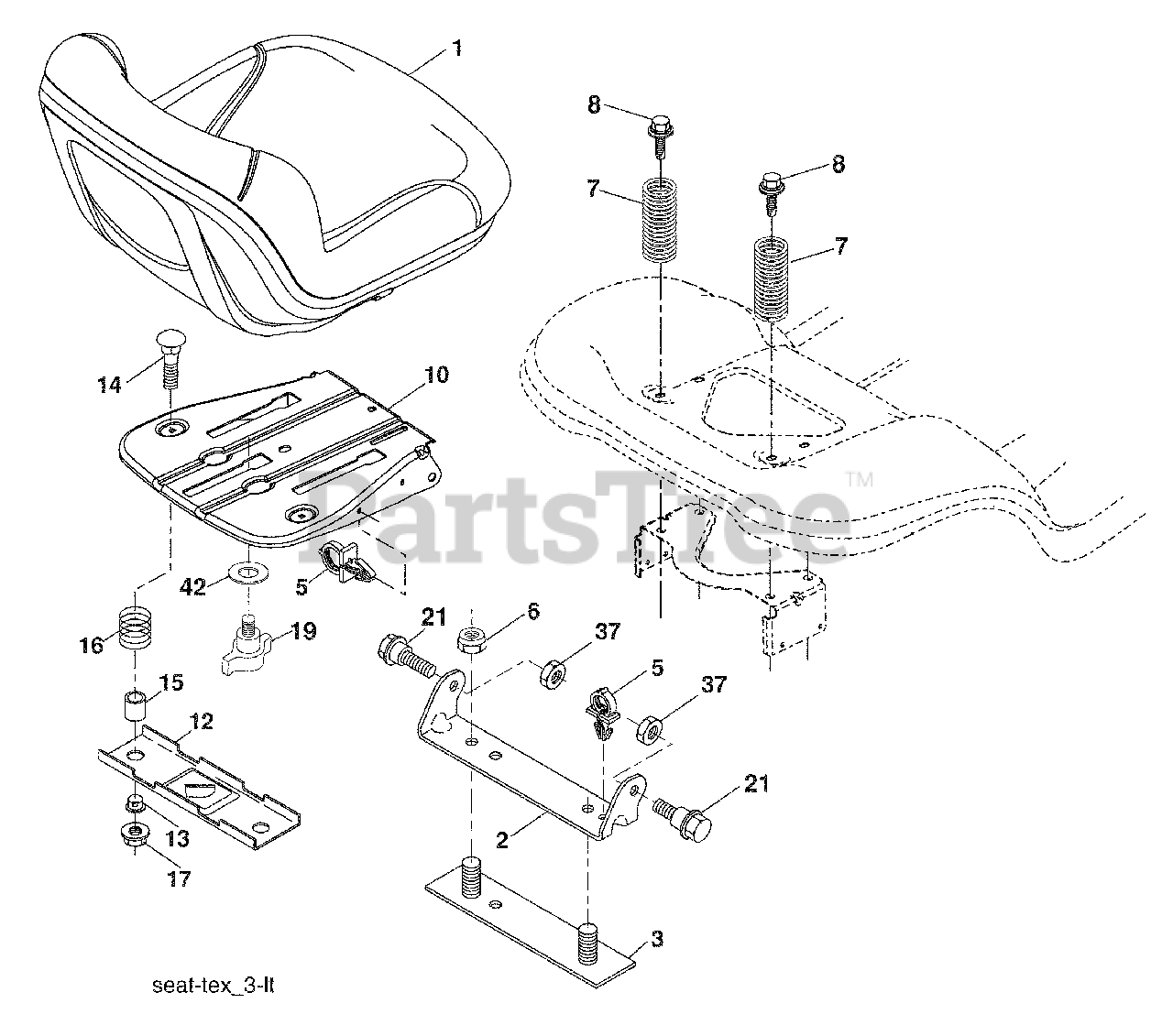

YT 1942 (960430025-01) - Husqvarna 42" Yard Tractor (2008-04) Seat Assembly Parts Diagram

42" Yard Tractor

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 532197518

Seat
(Superseded to 532439819)

$239.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180166

Bracket Pivot Fender

$13.99

$

In Stock, only 1 left!

0

3

Husqvarna 532140675

Strap, Asm Fender

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

Clip, Push In, Hinged

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

Nut, Lock w/Ins. 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring, Seat Cprsn
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 532171877

Bolt 5/16-18 unc x 3/4 w/Sems

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532199180

Pan, Seat
(Superseded to 532441805)

$56.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532199370

Bracket Mounting Seat

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

Bushing Snap

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050412

Bolt 1/4-20 x 1-1/2

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532134300

Spacer Split

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532123740

Spring

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Nut Lock 1/4
(Superseded to 873900400)

$4.99

$

In Stock, Qty 18

0

19

Husqvarna 532199372

Knob Seat

$8.99

$

In Stock, only 1 left!

0

21

Husqvarna 532171852

Bolt, Shoulder 5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

37

Husqvarna 873800500

Nut, Lock 5/16-18 unc

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532199371

Washer Cup Seat

$4.99

$

Usually ships in 3-10 days

0
