YT 1846 (960430235-00) - RedMax 46" Yard Tractor, 18hp (2017-05) CHASSIS / FRAME Parts Diagram

46" Yard Tractor, 18hp

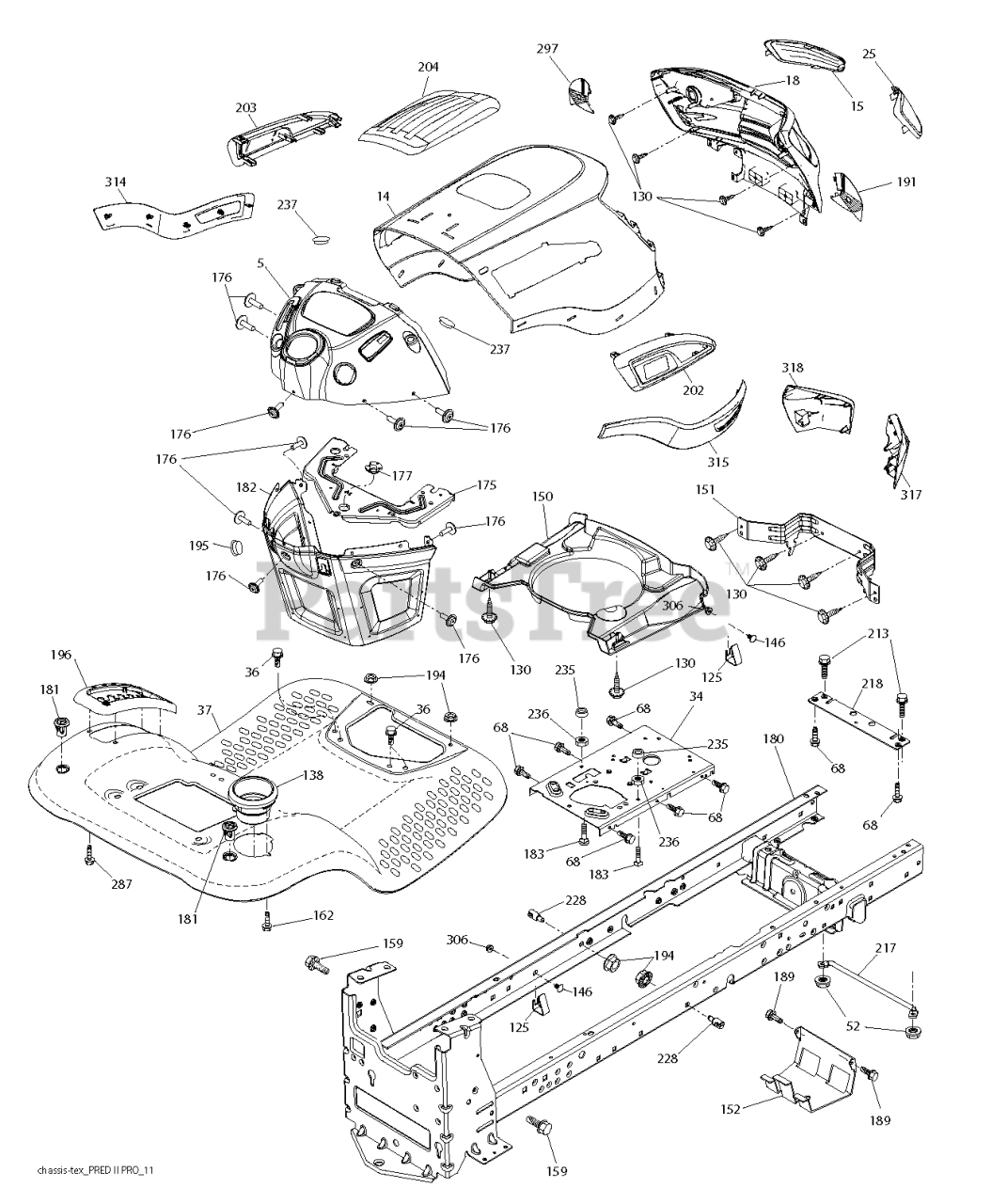

CHASSIS / FRAME Parts Diagram

  • Title
5

RedMax 591143501

DASHBOARD DASH.YT.PRED.REC.GA.

$24.99

$

Usually ships in 3-10 days

0

14

RedMax 591144301

HOOD HOOD.GRILL.PREDII.YT/GT.Y

$60.99

$

Usually ships in 3-10 days

0

15

RedMax 587898601

LENS.LH.PRED II.YT.CLR.SVC
(Superseded to 583752001)

Note: LH

$18.99

$

Usually ships in 3-10 days

0

18

RedMax 591044901

GRILLE.PRED2.GT.PRO.REDMAX
(Superseded to 591045001)

$136.99

$

Usually ships in 3-10 days

0

25

RedMax 587898401

LENS.RH.PRED II.YT.CLR.SVC
(Superseded to 583752101)

Note: RH

$18.99

$

Usually ships in 3-10 days

0

34

RedMax 580910801

PLATE.ENGINE.WELDED.CHASSIS

$68.99

$

In Stock, only 1 left!

0

36

RedMax 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

RedMax 585885901

FENDER.TLT.PDLCONTROL.WCUPX672

$319.99

$

Usually ships in 3-10 days

0

52

RedMax 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

68

RedMax 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

125

RedMax 581684801

CLIP.FUEL.LINE

$3.99

$

Usually ships in 3-10 days

0

130

RedMax 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

138

RedMax 532409730

CUPHOLDER.TL.TEX.BLACK

$7.99

$

Usually ships in 3-10 days

0

146

RedMax 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$6.49

$

Usually ships in 3-10 days

0

150

RedMax 584862901

PREDATOR.YT.GT.HOOD.AIR DUCT

$34.99

$

Usually ships in 3-10 days

0

151

RedMax 532445494

BRACKET.PIVOT.PREDATOR

$34.99

$

Usually ships in 3-10 days

0

152

RedMax 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

159

RedMax 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

162

RedMax 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

RedMax 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

176

RedMax 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

RedMax 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

RedMax 532195457

CHASSIS
(Superseded to 579841501)

$250.99

$

Usually ships in 3-10 days

0

181

RedMax 532404796

BUSHING.MNT.FEND.CRGO.
(Superseded to 532403025)

$

$

Not available

182

RedMax 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$96.99

$

In Stock, only 2 left!

0

183

RedMax 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

RedMax 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

191

RedMax 532425407

INSERT INSERT.REFLECTIVE.RH
(Superseded to 583419801)

$7.49

$

Usually ships in 3-10 days

0

194

RedMax 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

195

RedMax 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

196

RedMax 532414579

CONSOLE.ASM.DECKLFT.BL/RBT.TLT

$37.99

$

In Stock, only 1 left!

0

202

RedMax 591045401

VENT SIDE. HOOD. PREDATOR II.

Note: RH

$10.99

$

Usually ships in 3-10 days

0

203

RedMax 591045402

VENT SIDE. HOOD. PREDATOR II.

Note: LH

$10.99

$

Usually ships in 3-10 days

0

204

RedMax 587963201

VENT ASM.TOP.PRED GT PRO.428
(Superseded to 583751801)

$34.99

$

Usually ships in 3-10 days

0

213

RedMax 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

RedMax 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

RedMax 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

228

RedMax 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

RedMax 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

RedMax 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

Usually ships in 3-10 days

0

237

RedMax 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

287

RedMax 817600406

SCREW 1/4X20

$6.49

$

In Stock, only 2 left!

0

297

RedMax 532425406

INSERT INSERT.REFLECTIVE.LH
(Superseded to 583419701)

$7.49

$

Usually ships in 3-10 days

0

306

RedMax 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

314

RedMax 591049602

TRIM SUBASM. PREDATOR II. YT/G

$31.99

$

Usually ships in 3-10 days

0

315

RedMax 591049601

TRIM SUBASM. PREDATOR II. YT/G

$31.99

$

Usually ships in 3-10 days

0

317

RedMax 591042301

BUMPER CORNER. PREDATOR II. GT

$13.99

$

Usually ships in 3-10 days

0

318

RedMax 591043601

BUMPER CORNER. PREDATOR II. GT

$9.99

$

Usually ships in 3-10 days
