YT 1844 (2690176) - Snapper 44" Yard Tractor, 18hp HOUSING & ARBOR GRP, 44" Parts Diagram

44" Yard Tractor, 18hp

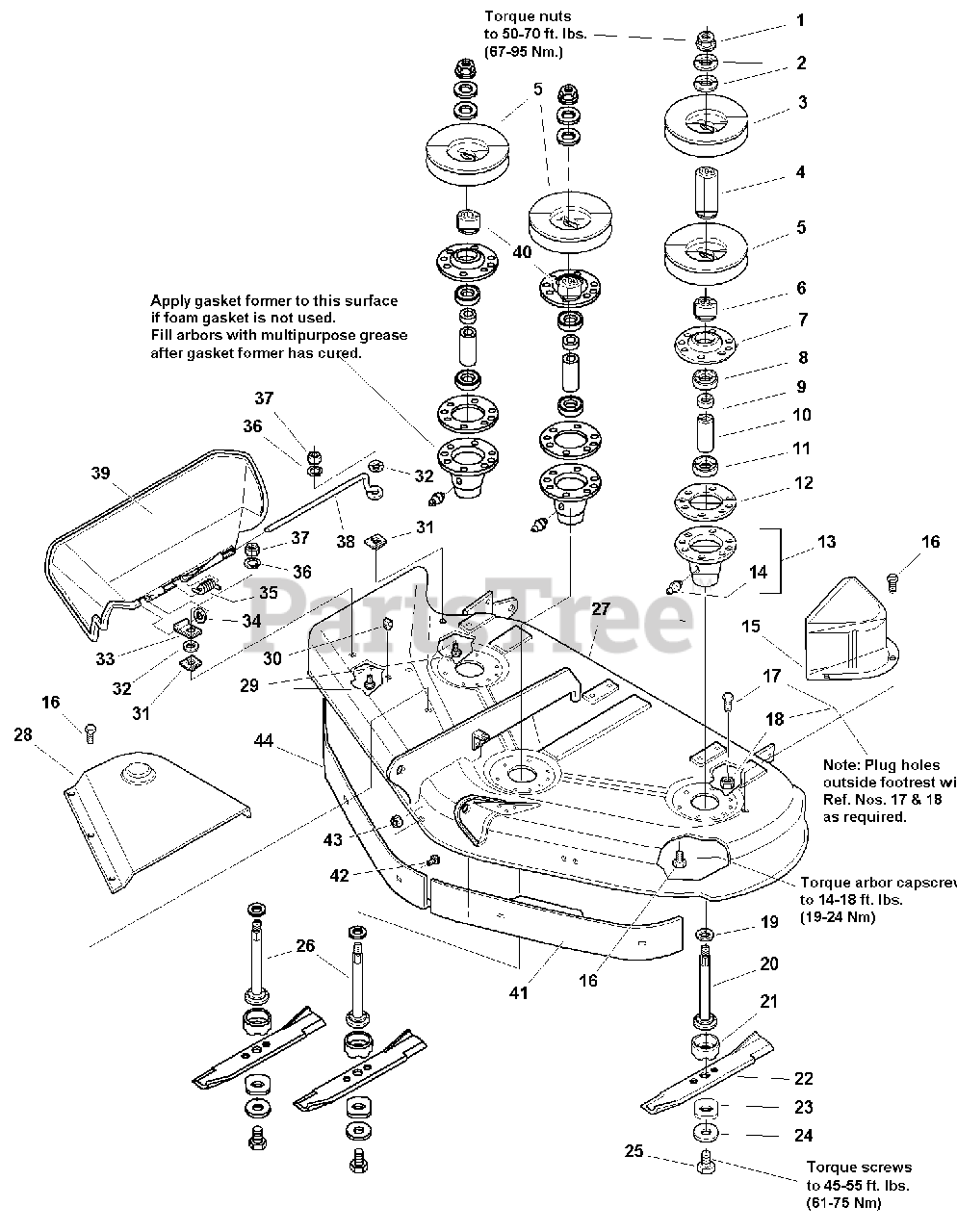

HOUSING & ARBOR GRP, 44" Parts Diagram

  • Title

1

Snapper 1714419

NUT, Hex Flange, 9/16-18
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 20+

0

2

Snapper 1713675

WASHER, Bellville, 9/16
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1713161

PULLEY
(Superseded to 1713161SM)

$20.99

$

In Stock, Qty 20+

0

4

Snapper 1713158

HUB, Double Pulley
(Superseded to 1713158SM)

$18.99

$

In Stock, Qty 20+

0

5

Snapper 1713098

PULLEY
(Superseded to 1713098SM)

$19.99

$

In Stock, Qty 20+

0

6

Snapper 1713533

HUB, Double Pulley
(Superseded to 1713533SM)

$9.99

$

In Stock, Qty 20+

0

7

Snapper 1655729A

COVER, Arbor Housing
(Superseded to 1655729ASM)

$14.99

$

Usually ships in 2-12 days

0

8

Snapper 2108202

BEARING, Ball, 3/4 x 1-3/4 x 5/8
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

9

Snapper 1715724

SPACER, 21/32 x 3/4 x 5/8
(Superseded to 1715724SM)

$9.49

$

In Stock, Qty 20+

0

10

Snapper 1715723

SPACER, 11/16 x 5/32 x 2-11/16
(Superseded to 1732544SM)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 1705897

BEARING, Ball, 11/16 x 1-9/16 x 15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

12

Snapper 1707335

GASKET, Foam
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

13

Snapper 1713338

ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14)
(Superseded to 1713338ASM)

$41.99

$

In Stock, Qty 20+

0

14

Snapper 1704314

FITTING, Grease
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

15

Snapper 1720560A

COVER, Arbor
(Superseded to 1720560ASM)

$90.99

$

In Stock, only 1 left!

0

16

Snapper 7091541

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

Note: Was 1664847

$4.49

$

In Stock, Qty 20+

0

17

Snapper 1924856

CAPSCREW, Hex Washer Head, 5/16-18 x 1/2, Black
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

18

Snapper 1931277

NUT, Hex Flange, 5/16,
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 1713619

WASHER, Bellevilled, 9/16, Black
(Superseded to 1713619SM)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 1713612

SHAFT, Arbor (LH)
(Superseded to 1713612SM)

$

$

Not available

21

Snapper 1713196

SHIELD, Grass, Lower
(Superseded to 1713196SM)

$9.49

$

In Stock, Qty 20+

0

22

Snapper 1704100A

BLADE, Mower, 16-1/8 (for 44" Decks)
(Superseded to 1716696ASM)

$25.99

$

In Stock, Qty 20+

0

23

Snapper 1713089

WASHER, Hex, 11/16 x 2
(Superseded to 1713089SM)

$4.99

$

In Stock, Qty 20+

0

24

Snapper 1656916

WASHER, Spring 15/32, Black
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

25

Snapper 2923471

CAPSCREW, Hex Head, 7/16-14 x 1
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 1713195

SHAFT, Arbor (Center & RH)
(Superseded to 1713195SM)

$31.99

$

In Stock, Qty 8

0

27

Snapper 1685411

MOWER HOUSING ASSEMBLY, 44" Mower (Orange)
(Superseded to 1685411SM)

$

$

Not available

27

Snapper 1685411D

MOWER HOUSING ASSEMBLY, 44" Mower (Red)

$

$

Currently unavailable

28

Snapper 1703601

COVER, Arbor
(Superseded to 1703601SM)

$80.99

$

In Stock, only 1 left!

0

29

Snapper 1931318

CARRIAGE BOLT, 1/4-20 x 7/8
(Superseded to 1931318SM)

$4.49

$

In Stock, only 2 left!

0

30

Snapper 1705115

PLUG, Hole
(Superseded to 1705115SM)

$4.49

$

In Stock, only 1 left!

0

31

Snapper 1960518

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

32

Snapper 1960353

WASHER, 1/4, Black
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

33

Snapper 1704873

CLAMP
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 1919326

WASHER, 5/16, Black
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

35

Snapper 1723938

SPRING
(Superseded to 1723938SM)

$

$

Not available

36

Snapper 1916964

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

37

Snapper 1916622

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

38

Snapper 1706709A

ROD, Deflector, Front
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 20+

0

39

Snapper 1705449

DEFLECTOR, Plastic
(Superseded to 1705449SM)

$122.99

$

In Stock, only 2 left!

0

40

Snapper 1713197

HUB, Pulley, Center & RH
(Superseded to 1713197SM)

$6.99

$

In Stock, Qty 20+

0

41

Snapper 1716879A

BAFFLE, Anti-Blowout, LH (CE Only)
(Superseded to 1716879ASM)

$115.99

$

Usually ships in 2-12 days

0

42

Snapper 1931333

CARRIAGE BOLT, 5/16-18 x 3/4, Black (CE Only)
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

43

Snapper 1927557

NUT, Hex Flange Whiz Lock, 5/16-18, Black (CE Only)
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

44

Snapper 1716878A

BAFFLE, Anti-Blowout, RH (CE Only)
(Superseded to 1716878ASM)

$97.99

$

Usually ships in 2-12 days

0
