YT 1844 (2690108) - Snapper 44" Yard Tractor, 18hp STEERING GROUP, MANUAL SNAPPER Parts Diagram

44" Yard Tractor, 18hp

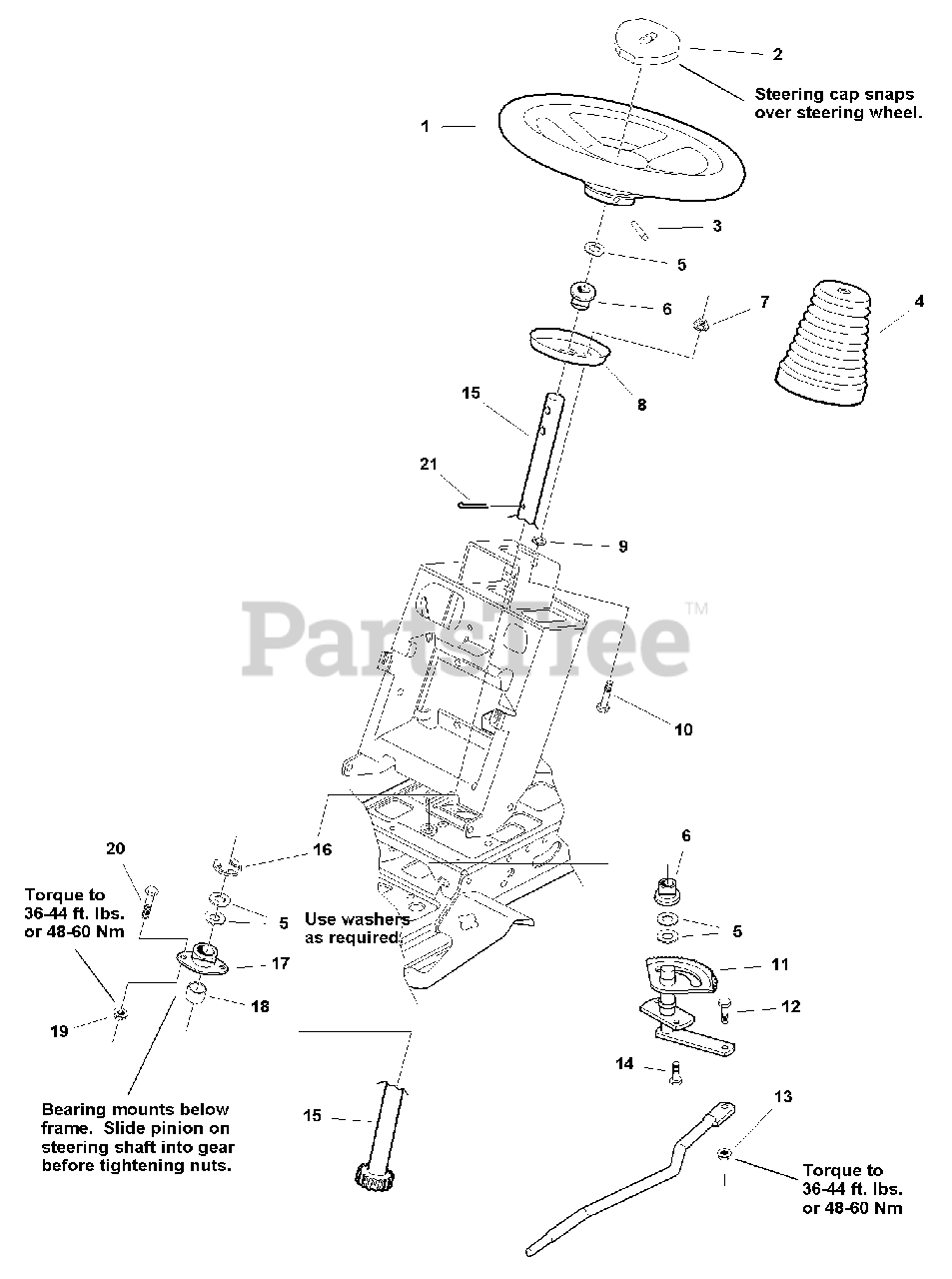

STEERING GROUP, MANUAL SNAPPER Parts Diagram

  • Title

1

Snapper 1722318

STEERING WHEEL, Straight, Shaft
(Superseded to 1722318SM)

$110.99

$

In Stock, Qty 5

0

2

Snapper 1725024

CAP, Steering Wheel, Plain
(Superseded to 1725024SM)

$7.49

$

In Stock, only 1 left!

0

3

Snapper 1960540

PIN, Spring, 5/16 x 2-1/2
(Superseded to 1960540SM)

$4.49

$

In Stock, Qty 11

0

4

Snapper 1722749

COVER, Rubber, Upper Steering Shaft
(Superseded to 1722749SM)

$

$

Not available

5

Snapper 1960114

WASHER, 3/4
(Superseded to 80003650)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 2176440

BUSHING, 15/32 x 7/8 x 7/8, Nylon
(Superseded to 2176440SM)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 2928372

NUT, Hex KEPS 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

8

Snapper 1721736A

PLATE, Mounting Steering
(Superseded to 1721736ASM)

$10.99

$

Usually ships in 2-12 days

0

9

Snapper 1960518

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 1960655

CARRIAGE BOLT, 1/4-20 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

11

Snapper 1724470A

GEAR & SHAFT ASSEMBLY, Steering
(Superseded to 1724470ASM)

Note: Was 1722385

$152.99

$

In Stock, Qty 12

0

12

Snapper 1960032

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black
(Superseded to 1960032SM)

$5.49

$

In Stock, only 1 left!

0

13

Snapper 1930645

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Snapper 7091541

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

Note: Was 1664847

$4.49

$

In Stock, Qty 20+

0

15

Snapper 1721626

SHAFT & PINION ASSEMBLY, Steering Manual
(Superseded to 1721626SM)

$

$

Not available

16

Snapper 1611710

RING, Clipring Extension
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 1722459

BEARING, 3/4 x 1-11/16 x 13/16, 3" Long Housing
(Superseded to 1722459SM)

$11.99

$

In Stock, Qty 20+

0

18

Snapper 1722461

SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal
(Superseded to 1722461SM)

$26.99

$

In Stock, Qty 14

0

19

Snapper 1931211

NUT, Hex Flange Whiz Lock, 3/8-16, Small
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

20

Snapper 1933260

CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

21

Snapper 1919314

PIN, Cotter, 1-1/4, Black
(Superseded to 1919314SM)

$3.49

$

In Stock, Qty 7

0
