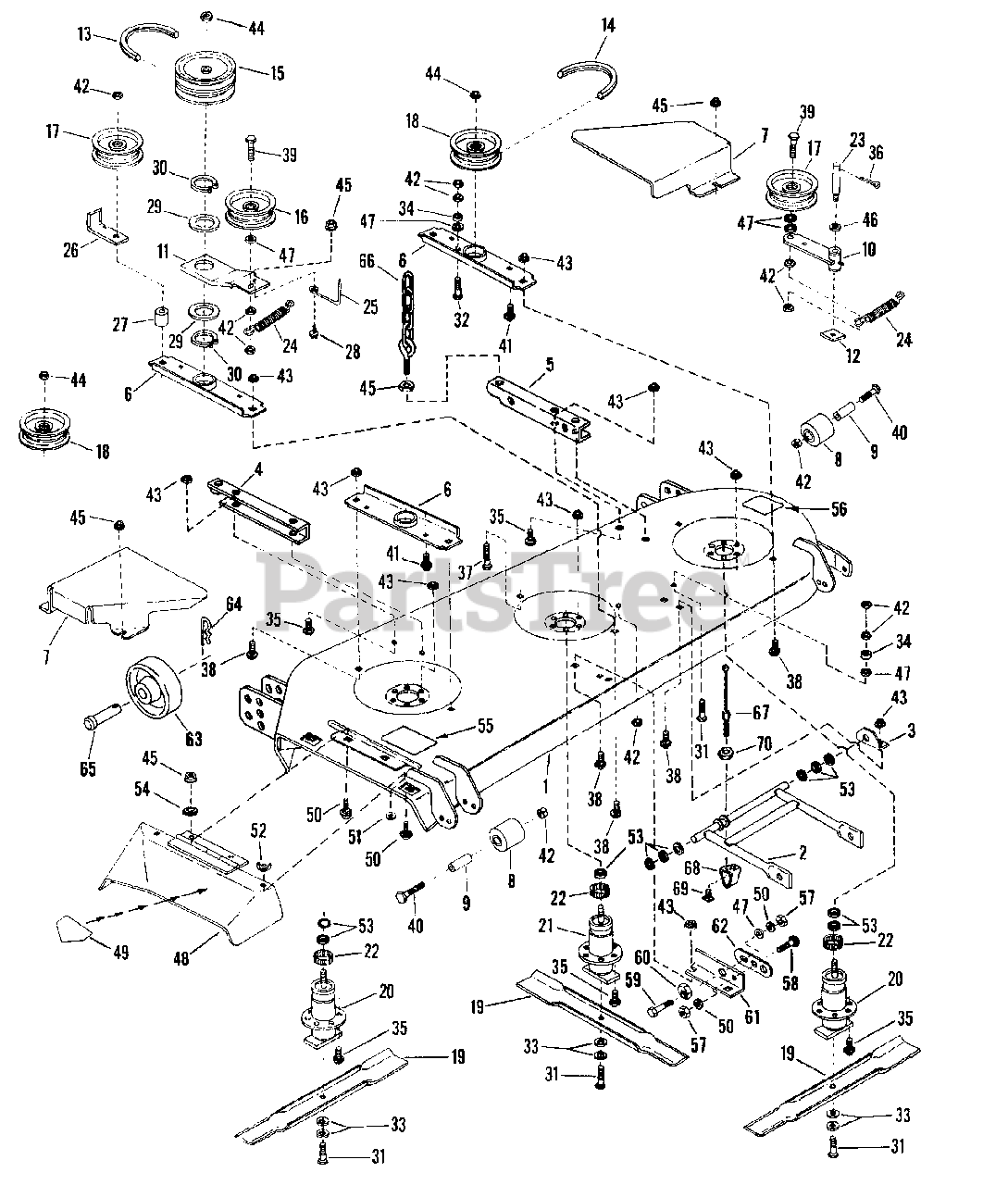

YT 16D484K (80091) - Snapper 48" Yard Tractor, 16hp Cutting Deck, Belts, Pulleys Parts Diagram

48" Yard Tractor, 16hp

Cutting Deck, Belts, Pulleys Parts Diagram

  • Title

1

Snapper 7049961

DECK STRUCTURE - 48"

$

$

Not available

2

Snapper 7049724

ARM, Front Lift

$

$

Not available

3

Snapper 7032297

BRACKET, Front Hanger

$

$

Not available

4

Snapper 7057384

SUPPORT, Rear Right (1985)

$

$

Not available

5

Snapper 7057383

SUPPORT, Rear Left (1985)
(Superseded to 7057383YP)

$46.99

$

Usually ships in 2-12 days

0

6

Snapper 7038078

BRACE, Spindle
(Superseded to 7038078YP)

$26.99

$

In Stock, only 1 left!

0

7

Snapper 7035054

GUARD, Pulley
(Superseded to 7035054YP)

$39.99

$

Usually ships in 2-12 days

0

8

Snapper 7019190

ROLLER
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper 7015272

SPACE
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

10

Snapper 7051475

ASSEMBLY, Idler Arm
(Superseded to 7051475YP)

$102.99

$

Usually ships in 2-12 days

0

11

Snapper 7038156

IDLER ARM, Center
(Superseded to 7038156YP)

$17.99

$

Usually ships in 2-12 days

0

12

Snapper 7014805

WASHER - Square

$

$

Not available

13

Snapper 7014801

V-BELT, Drive - A92
(Superseded to 7014801YP)

$65.99

$

Usually ships in 2-12 days

0

14

Snapper 7024497

BELT, Deck - AA105
(Superseded to 7024497YP)

$56.99

$

In Stock, only 1 left!

0

15

Snapper 7014545

PULLEY, Double (4-3/4")
(Superseded to 7014545YP)

$106.99

$

In Stock, only 1 left!

0

16

Snapper 7023966

PULLEY, Flat Idler (4.8 O.D.)
(Superseded to 7023966YP)

Note: Was 18585

$48.99

$

Usually ships in 2-12 days

0

17

Snapper 7018651

PULLEY, V-Idler (4-1/2" O.D.)
(Superseded to 7018651YP)

$42.99

$

In Stock, only 1 left!

0

18

Snapper 7014544

PULLEY, 4-3/4" O.D.
(Superseded to 7014544SM)

$58.99

$

In Stock, only 1 left!

0

19

Snapper 7019733

BLADE, 16.5
(Superseded to 7019733BMYP)

$

$

Not available

20

Snapper 7051473

ASSEMBLY, Spindle
(Superseded to 7051473YP)

Note: (See "Spindle Assembly (41" & 48" Outboard)" illustration & parts list for breakdown)

$162.99

$

Usually ships in 2-12 days

0

21

Snapper 7051528

ASSEMBLY, Spindle

Note: (See "Spindle Assembly (48" Center)" illustration & parts list for breakdown)

$

$

Not available

22

Snapper 7012670

TOLERANCE RING, 3/4"
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

23

Snapper 7035816

IDLER STUD
(Superseded to 7035816YP)

Note: Was 14408

$100.99

$

Usually ships in 2-12 days

0

24

Snapper 7014513

SPRING
(Superseded to 7014513YP)

$10.99

$

Usually ships in 2-12 days

0

25

Snapper 7014410

BELT GUIDE
(Superseded to 7014410YP)

$9.49

$

In Stock, only 1 left!

0

26

Snapper 7032368

BELT GUIDE

$

$

Not available

27

Snapper 7021945

SPACER

$

$

Not available

28

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Square Neck, Grade 5
(Superseded to 703185)

Note: Was 90788

$3.49

$

In Stock, Qty 12

0

29

Snapper 7014795

WASHER, Plastic

$

$

Not available

30

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 2 left!

0

31

Snapper 7090824

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

32

Snapper 7090164

SCREW, 3/8-24 x 1-1/2" Hex Head Cap, Grade 2

$

$

Not available

33

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

34

Snapper 7014527

SPACER
(Superseded to 7014527YP)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

36

Snapper 7091598

PIN, 1/8 x 1" Cotter
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

37

Snapper 7090169

SCREW, 3/8-24 x 2-1/2" Hex Head Cap

$

$

Not available

38

Snapper 7091923

BOLT, 3/8-16 x 3/4" Square Neck Carriage, Grade 2
(Superseded to 7091923SM)

Note: Was 90136

$3.49

$

Usually ships in 2-12 days

0

39

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, Grade 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

40

Snapper 7091532

SCREW, 3/8-24 x 3-3/4" Hex Head Cap, Grade 5
(Superseded to 703876)

Note: Was 90859

$6.99

$

In Stock, Qty 10

0

41

Snapper 7090799

BOLT, 5/16-18 x 5/8" Square Neck Carriage, Grade 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

42

Snapper 7090289

NUT, 3/8-24 Hex Ctr. Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

43

Snapper 7091619

NUT, 3/8-16 Hex Fl. Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

44

Snapper 7090820

NUT, 3/4-16 Lock
(Superseded to 7090820YP)

$5.99

$

In Stock, only 1 left!

0

45

Snapper 7091601

NUT, 5/16-18 Hex Fl. Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

46

Snapper 7090183

WASHER, 5/8 SAE
(Superseded to 7090183YP)

$4.49

$

In Stock, only 2 left!

0

47

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

48

Snapper 7051401

ASSEMBLY, Side Chute
(Superseded to 7051401YP)

Note: (Includes item 49)

$159.99

$

Usually ships in 2-12 days

0

49

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

50

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

51

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

52

Snapper 7090375

WING-NUT, 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

53

Snapper 7010935

WASHER, 3/4 I.D.
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

54

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

55

Snapper 7014852

DECAL, Caution
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

56

Snapper 7014853

DECAL, Caution
(Superseded to 7014853YP)

$11.99

$

Usually ships in 2-12 days

0

57

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

58

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Square Neck Carr., Gr. 2
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

59

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

60

Snapper 7015012

RING, Adjustment
(Superseded to 7015012YP)

$3.99

$

Usually ships in 2-12 days

0

61

Snapper 7038181

BRACKET, Right Front
(Superseded to 7038181YP)

$21.99

$

Usually ships in 2-12 days

0

62

Snapper 7032432

LINK, Adjustment

$

$

Not available

63

Snapper 7018445

WHEEL, 6.00" Gage
(Superseded to 7018445YP)

$29.99

$

Usually ships in 2-12 days

0

64

Snapper 7091596

PIN, Hair Cotter
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

65

Snapper 7014857

PIN, 1/2 x 3" Clevis
(Superseded to 7014857YP)

$3.49

$

Usually ships in 2-12 days

0

66

Snapper 7051749

ASSEMBLY, Bolt/Chain
(Superseded to 7053739YP)

Note: Was 51525

$14.99

$

Usually ships in 2-12 days

0

67

Snapper 7014355

CABLE, Front Lift (8")
(Superseded to 7015629YP)

$

$

Not available

?67A

Snapper 7015629

CABLE, Front Lift (8.32")
(Superseded to 7015629YP)

$

$

Not available

68

Snapper 7038043

BRACKET, Front Lift Hanger
(Superseded to 7038043YP)

$31.99

$

Usually ships in 2-12 days

0

69

Snapper 7090388

T-NUT, 5/16-18
(Superseded to 7090388YP)

$3.49

$

In Stock, only 2 left!

0

70

Snapper 7090665

NUT, 3/8-16 Hex Jam
(Superseded to 703996)

$4.99

$

In Stock, Qty 9

0
