YT 16D484B (82080) - Snapper 48" Yard Tractor, 16hp Spindle Assembly (48" Center) Parts Diagram

48" Yard Tractor, 16hp

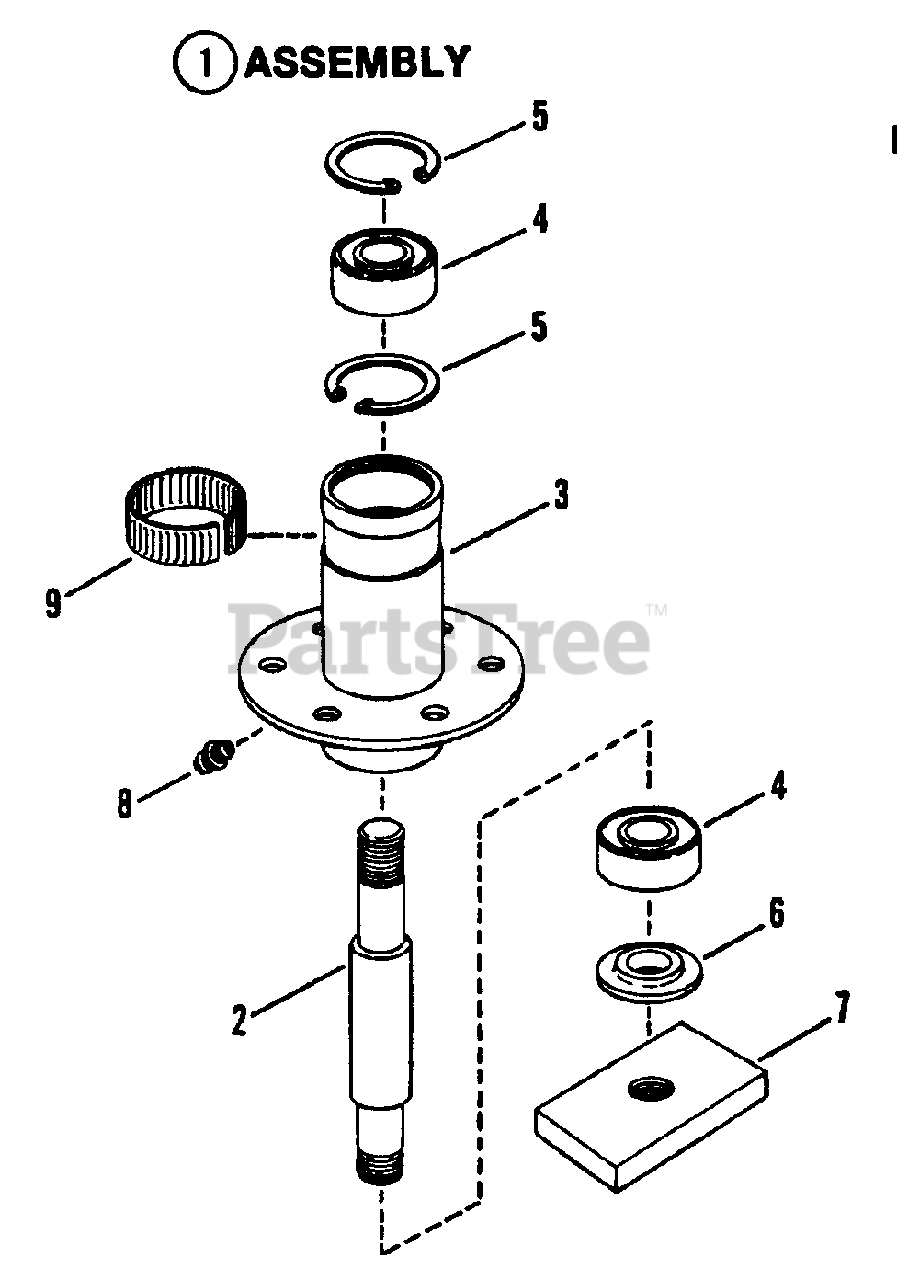

Spindle Assembly (48" Center) Parts Diagram

  • Title
1

Snapper 7051528

ASSEMBLY, Spindle

Note: (Includes Items 2 thru 8)

$

$

Not available

2

Snapper 7027641

SPINDLE, 7.25"

$

$

Not available

3

Snapper 7051527

HOUSING, Spindle
(Superseded to 7051527YP)

Note: (Incl. Item 8)

$45.99

$

Usually ships in 2-12 days

0

4

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

5

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

7

Snapper 7032294

HOLDER, Blade
(Superseded to 7032294YP)

$

$

Not available

8

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

Note: (Order Separately)

$8.49

$

In Stock, Qty 6

0
