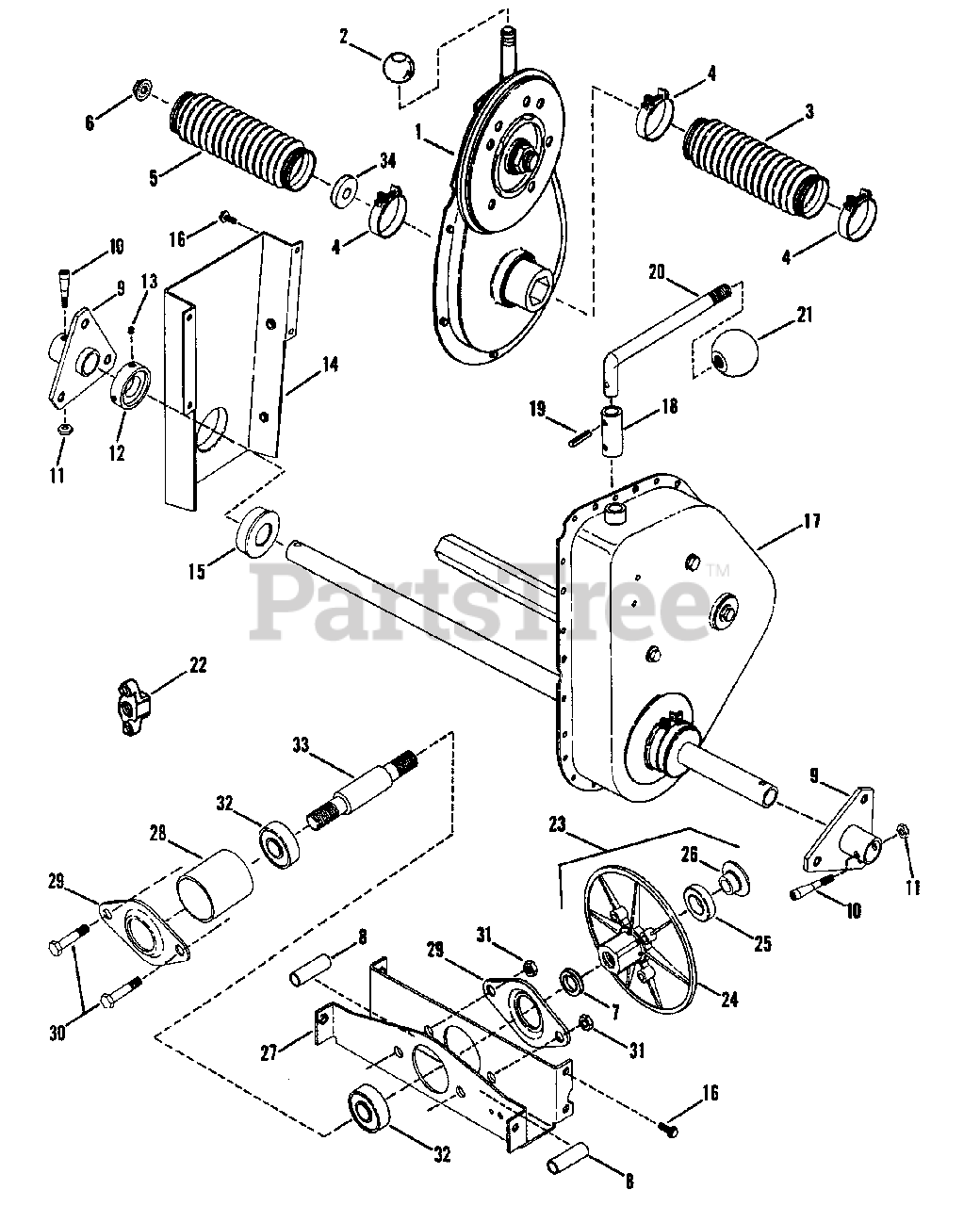

YT 16D484B (82080) - Snapper 48" Yard Tractor, 16hp Drive Disc, Rear Axle Components Parts Diagram

48" Yard Tractor, 16hp

Drive Disc, Rear Axle Components Parts Diagram

  • Title

1

Snapper 7059639

PRIMARY CASE

Note: (See "Primary Chain Case" illustration & parts list for breakdown)

$

$

Not available

2

Snapper 7014396

BUSHING, Primary Clutch
(Superseded to 7014396YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7016348

BOOT, Left Side Oil seal

Note: Was 18660

$

$

Not available

4

Snapper 7011037

CLAMP, Boot
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 20+

0

5

Snapper 7016349

BOOT, Right Side Oil Seal

Note: Was 18770

$

$

Not available

6

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7010121

WASHER, Shim
(Superseded to 7010121YP)

$4.49

$

In Stock, Qty 6

0

8

Snapper 7015264

SPACER
(Superseded to 7015264YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7040529

HUB, Rear Wheel

Note: Was 23307

$62.99

$

Usually ships in 2-12 days

0

10

Snapper 7011013

BOLT, Tapered
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

11

Snapper 7092062

NUT, 5/16-24 Hex Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7014401

LOCK-COLLAR
(Superseded to 7014401YP)

Note: (Includes item 13)

$26.99

$

Usually ships in 2-12 days

0

13

Snapper 7090201

SETSCREW, 5/16-18 x 5/16"
(Superseded to 7090201SM)

$

$

Not available

14

Snapper 7057328

ASSEMBLY, Axle Support

Note: (Includes item 15)

$

$

Not available

15

Snapper 7018822

BEARING, Ball
(Superseded to 7018822YP)

Note: Was 14400

$74.99

$

In Stock, Qty 6

0

16

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

17

Snapper 7059846

ASSEMBLY, Transmission

Note: (See "Transmission Assembly" illustration & parts list for breakdown)

$

$

Currently unavailable

18

Snapper 7021903

COUPLING, Shift Lever
(Superseded to 7021903YP)

$35.99

$

Usually ships in 2-12 days

0

19

Snapper 7090844

ROLL-PIN, 3/16 x 3/4"
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7032308

LEVER, HI-LO Shifter
(Superseded to 7032308YP)

$23.99

$

Usually ships in 2-12 days

0

21

Snapper 7014501

KNOB, Shifter Ball
(Superseded to 7014501YP)

$17.99

$

In Stock, Qty 6

0

22

Snapper 7018584

HUB, Flex Coupling
(Superseded to 7018584YP)

Note: (See "Frame, Engine & Drive Parts" illustration & parts list))

$68.99

$

Usually ships in 2-12 days

0

23

Snapper 7051418

ASSEMBLY, Drive Disc
(Superseded to 7051418YP)

Note: (Includes items 24 thru 26)

$195.99

$

Usually ships in 2-12 days

0

24

Snapper 7018567

DISC, Drive
(Superseded to 7018567YP)

$125.99

$

Usually ships in 2-12 days

0

25

Snapper 7014514

BEARING, Ball
(Superseded to 7014514YP)

$50.99

$

Usually ships in 2-12 days

0

26

Snapper 7014447

BUTTON, Center

$

$

Not available

27

Snapper 7036155

SUPPORT, BEARING
(Superseded to 7036155YP)

Note: (Latest version requires items 32 & 33)

$62.99

$

Usually ships in 2-12 days

0

28

Snapper 7021973

TUBE
(Superseded to 7021973YP)

$34.99

$

Usually ships in 2-12 days

0

29

Snapper 7032396

RETAINER
(Superseded to 7032396YP)

Note: (Use with item 27)

$29.99

$

Usually ships in 2-12 days

0

30

Snapper 7090912

SCREW, 5/16-18 x 4-1/4" Hex Head Cap

$

$

Currently unavailable

31

Snapper 7091575

NUT, 5/16-18 Hex Center Lock Grade B or 5
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7013313

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

33

Snapper 7021972

SPINDLE, Drive Disc - 6.040"
(Superseded to 7021972YP)

$34.99

$

Usually ships in 2-12 days

0

34

Snapper 7090905

WASHER, Shim
(Superseded to 7090905YP)

$4.99

$

Usually ships in 2-12 days

0
