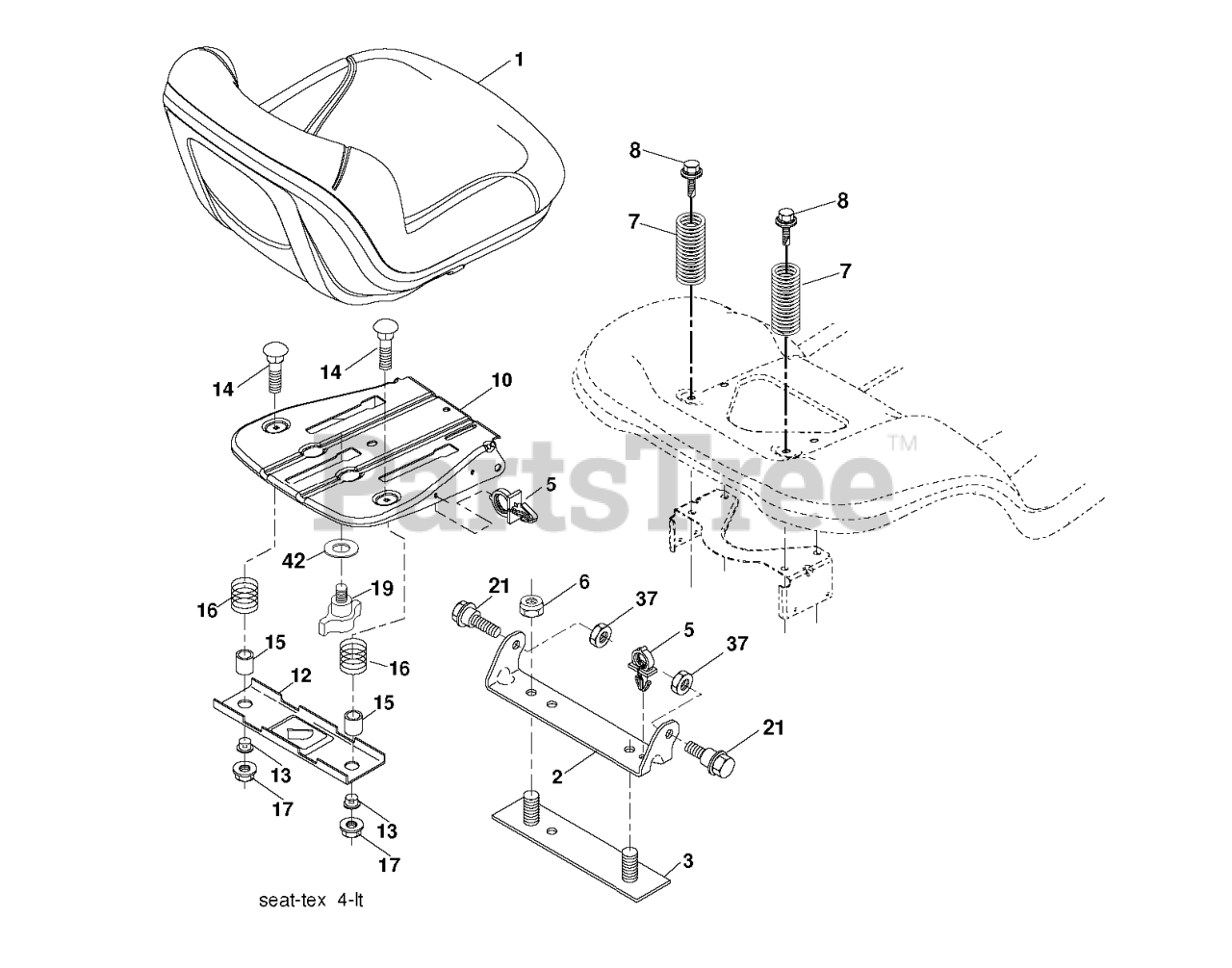

YT 16542 - Husqvarna 42" Yard Tractor (2007-02) SEAT Parts Diagram

42" Yard Tractor

SEAT Parts Diagram

  • Title

21

Husqvarna 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

16

Husqvarna 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532199180

PAN.ASM.SEAT.SHORT
(Superseded to 532441805)

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532140675

STRAP

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

NUT T
(Superseded to 873900400)

$4.99

$

In Stock, Qty 18

0

13

Husqvarna 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532199370

BRKT.MNT.OPC.SW.SEAT.

$11.99

$

Usually ships in 3-10 days

0

14

Husqvarna 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

2

Husqvarna 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

42

Husqvarna 532199371

WASHER.CUP.SEAT.

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532199372

KNOB.SEAT.ADJ.

$8.99

$

In Stock, only 1 left!

0

1

Husqvarna 532197518

SEAT.TH130.GRY.MILSCO.
(Superseded to 532439819)

$239.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532134300

SPACER SPLIT 28X.96

$7.49

$

Usually ships in 3-10 days

0
