YT 16542 (960430024-06) - Husqvarna 42" Yard Tractor (2009-04) Drive Parts Diagram

42" Yard Tractor

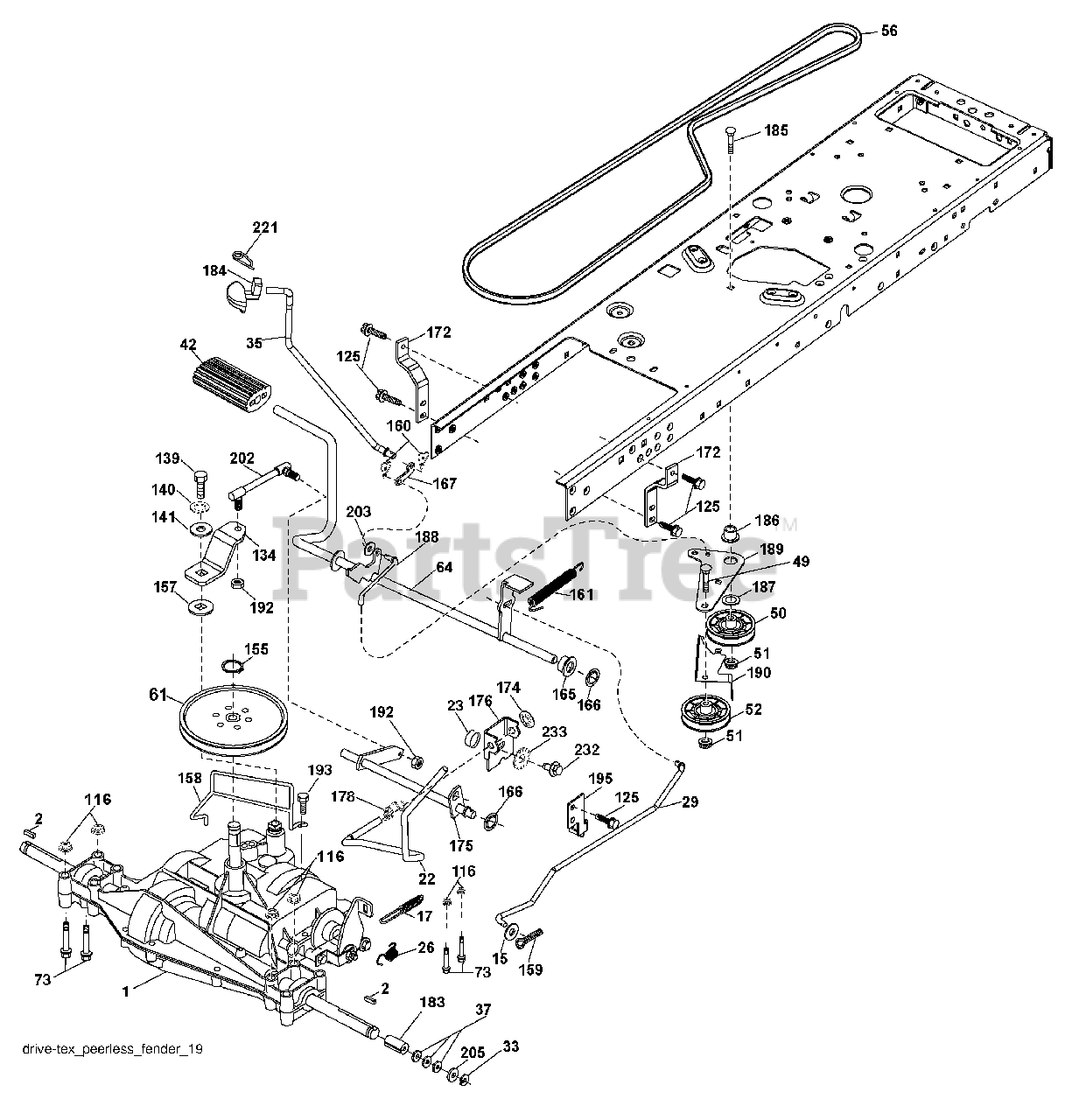

Drive Parts Diagram

  • Title
1

Transaxle, Peerless 206-565

$

$

Not available

2

Husqvarna 532123583

Key Square

$4.99

$

In Stock, only 4 left!

0

15

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532197297

Spring, Brake

$9.49

$

Usually ships in 3-10 days

0

22

$182.99

$

Usually ships in 3-10 days

0

$7.99

$

In Stock, only 1 left!

0

26

Husqvarna 532197455

Spring Brake Return

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532197267

Rod, Brake

$30.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532401031

Rod, Brake, Park

$18.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

Pulley Idler Flat

$20.99

$

In Stock, Qty 16

0

51

Husqvarna 873900600

Lock Nut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

Idler V-Groove

$22.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532194346

V-Belt, Drive

$43.99

$

In Stock, only 2 left!

0

61

Husqvarna 532123666

Pulley Transaxle

$45.99

$

In Stock, only 1 left!

0

64

Husqvarna 532196200

Shaft Asm. Pedal Brake Control

$56.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532403024

Console
(Superseded to 532411290)

$40.99

$

In Stock, only 1 left!

0

73

Husqvarna 874490544

Bolt 5/16-18 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532142432

Screw 1/4 x 1/2

$6.49

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

125

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

134

$7.99

$

Usually ships in 3-10 days

0

139

Husqvarna 874550412

Bolt 1/4-28 unf Gr. 8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

140

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

141

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

155

Husqvarna 812000028

Ring Retainer

$7.49

$

In Stock, Qty 7

0

157

Husqvarna 532105701

Washer Plate Shift

$6.49

$

Usually ships in 3-10 days

0

158

Husqvarna 532194352

Belt Keeper

$

$

Not available

159

Husqvarna 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

Retainer Clip

$

$

Not available

161

Husqvarna 532105709

Spring, Return, Clutch

$11.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532196212

Busing Shaft Brake Hand Control

$6.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532197290

Nut Push .625
(Superseded to 532429164)

$6.49

$

In Stock, only 2 left!

0

167

Husqvarna 532405257

Latch Brake Parking

$4.99

$

Usually ships in 3-10 days

0

172

Husqvarna 532197657

Strap Torque LH

$6.49

$

Usually ships in 3-10 days

0

174

$6.49

$

In Stock, only 2 left!

0

175

Husqvarna 532197858

Shaft Asm. Shift

$39.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532196214

Arm Clevis Rod Shift

$7.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532197456

Spring Shift

$6.49

$

Usually ships in 3-10 days

0

184

Husqvarna 532409747

Handle Parking
(Superseded to 532411484)

$66.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532137057

Spacer Axle

$7.49

$

In Stock, only 3 left!

0

$

$

Currently unavailable

186

Husqvarna 532194321

Spacer Retainer

$9.49

$

In Stock, Qty 9

0

187

Husqvarna 819133210

Washer
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

Link Clutch Ground Drive
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Husqvarna 532194317

Bellcrank Ground Drive

$

$

Not available

190

Husqvarna 532194318

Keeper Bellcrank Ground Drive

$8.99

$

In Stock, only 2 left!

0

192

Husqvarna 532150360

Nut Lock Center 1/4-28 Fnthd

$

$

Not available

193

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

195

Husqvarna 532197332

Bracket Brake Rod

$5.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532197859

Link Transaxle
(Superseded to 597079401)

$9.49

$

Usually ships in 3-10 days

0

203

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

205

Husqvarna 532121748

Washer 25/32 x 1-5/8 16 Ga.

$4.99

$

In Stock, Qty 20+

0

221

Husqvarna 532403187

Retainer Spring Clip Handle

$6.49

$

In Stock, only 2 left!

0

232

Husqvarna 874780716

Bolt Fin Hex 7/16-14 x 1 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

233

Husqvarna 532405296

Washer Serrated

$6.49

$

Usually ships in 3-10 days

0
