YT 1644 (1694368) (2690067) - Snapper 44" Yard Tractor, 16hp ENGINE GROUP-16HP B&S VANG Parts Diagram

44" Yard Tractor, 16hp

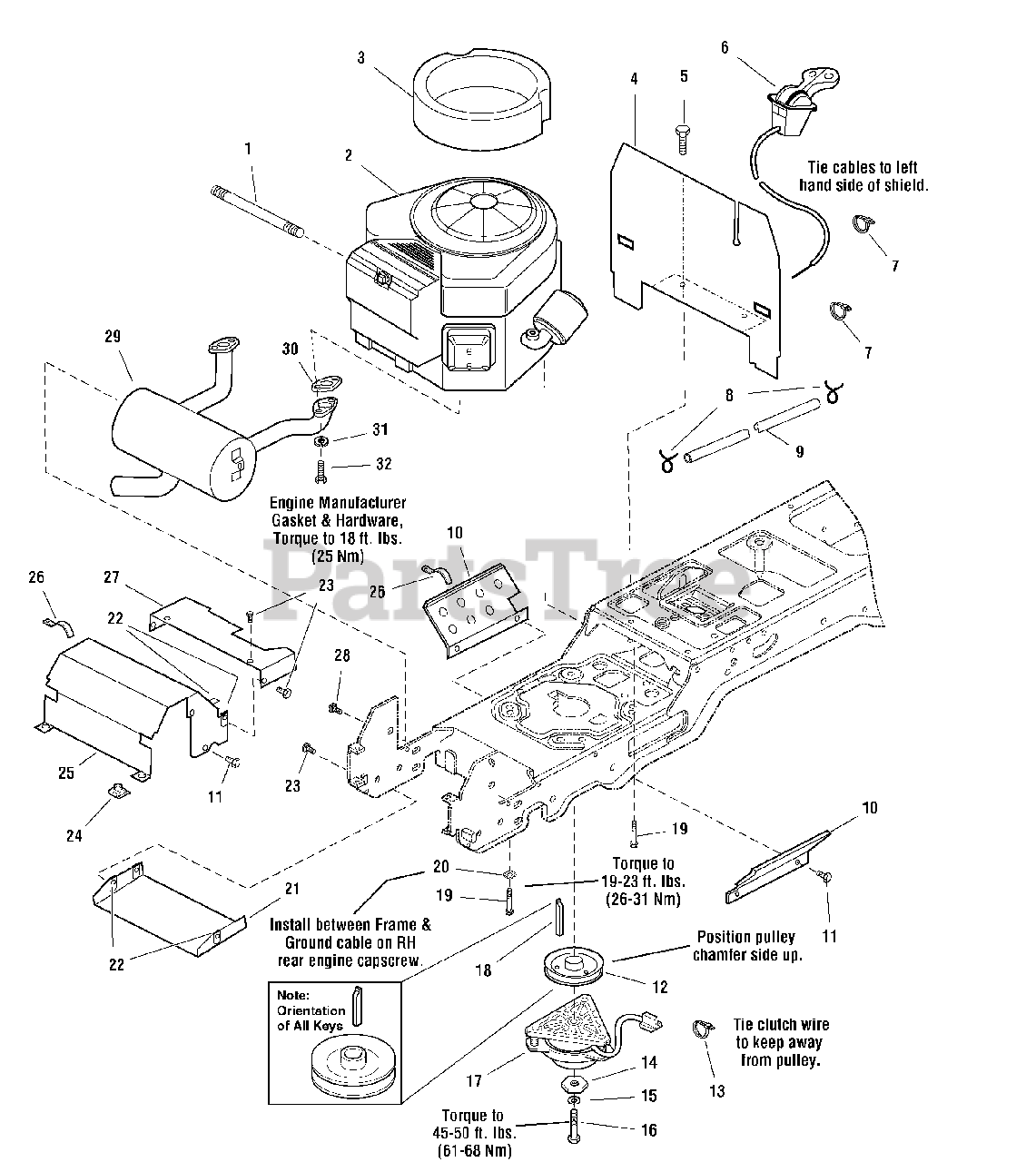

ENGINE GROUP-16HP B&S VANG Parts Diagram

  • Title

1

Snapper 1723165

HOSE, Oil Drain, 10 1/2 Long, 3/8-18 Fittings
(Superseded to 1723165SM)

$20.99

$

In Stock, Qty 8

0

2

* ENGINE, 16 HP B&S Vanguard Twin, Mod. 303777-1114-E1

$

$

Not available

3

Snapper 1722950

SEAL, Circle
(Superseded to 1722950SM)

$54.99

$

In Stock, only 2 left!

0

4

Snapper 1722388A

BULKHEAD
(Superseded to 1722388ASM)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 1925003

CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

6

Snapper 7072517

CONTROL, Throttle Double 39" Long w/Knobs
(Superseded to 7072517SM)

Note: Was 1721950

$118.99

$

In Stock, Qty 7

0

7

Snapper 1701011

TIE, Wire
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

8

Snapper 2960112

CLAMP, Hose Type E
(Superseded to 2860112SM)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 1718678

HOSE, Fuel, 58 Long

$

$

Not available

10

Snapper 1722392A

SHIELD, Side
(Superseded to 1722392ASM)

$10.99

$

Usually ships in 2-12 days

0

11

Snapper 1929000

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

12

Snapper 1722288

PULLEY & HUB ASSEMBLY
(Superseded to 1739847YP)

$42.99

$

In Stock, only 1 left!

0

13

Snapper 2932747

TIE, Self Locking, 3-5/8 Long
(Superseded to 2832747SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 1708264

WASHER, Hex, 7/16, Black
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 5

0

15

Snapper 3031319

LOCKWASHER, 7/16
(Superseded to 704007)

Note: Was 1918199

$4.49

$

In Stock, Qty 20+

0

16

Snapper 1960649

CAPSCREW, Hex Head, 7/16-20 x 3-1/2
(Superseded to 1960649SM)

$7.49

$

In Stock, only 1 left!

0

17

Snapper 1686883

CLUTCH, Electric
(Superseded to 1687296SM)

$402.99

$

In Stock, only 1 left!

0

18

Snapper 1720463

KEY, HI PRO, 1/4 x 2 1/2
(Superseded to 1720463SM)

$8.99

$

In Stock, only 1 left!

0

19

Snapper 2930598

CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

20

Snapper 2920427

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 1722414A

SHIELD, Muffler Bottom
(Superseded to 1722414ASM)

$20.99

$

Usually ships in 2-12 days

0

22

Snapper 1960368

NUT, Speed, 1/4-20, Lug
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 1960295

CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8
(Superseded to 1960295SM)

$4.49

$

In Stock, only 1 left!

0

24

Snapper 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 2 left!

0

25

Snapper 1722389A

DUCT, Muffler Top
(Superseded to 1722389ASM)

$80.99

$

Usually ships in 2-12 days

0

26

Snapper 2934683

CLIP, Wire 1/8
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 1722390A

DUCT, Muffler Extension
(Superseded to 1722390ASM)

$12.99

$

Usually ships in 2-12 days

0

28

Snapper 1924856

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2 Black
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

29

Snapper 1722625

MUFFLER, Briggs & Stratton, Vanguard Twin
(Superseded to 1722625SM)

$213.99

$

Usually ships in 2-12 days

0

30

* GASKET, Briggs & Stratton, Vanguard Twin

$

$

Not available

31

Snapper 1916964

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

32

* CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8

$

$

Not available
