YT 161 H (127589) - Husqvarna Yard Tractor (1990-11) Electrical (Part 1) Parts Diagram

Yard Tractor

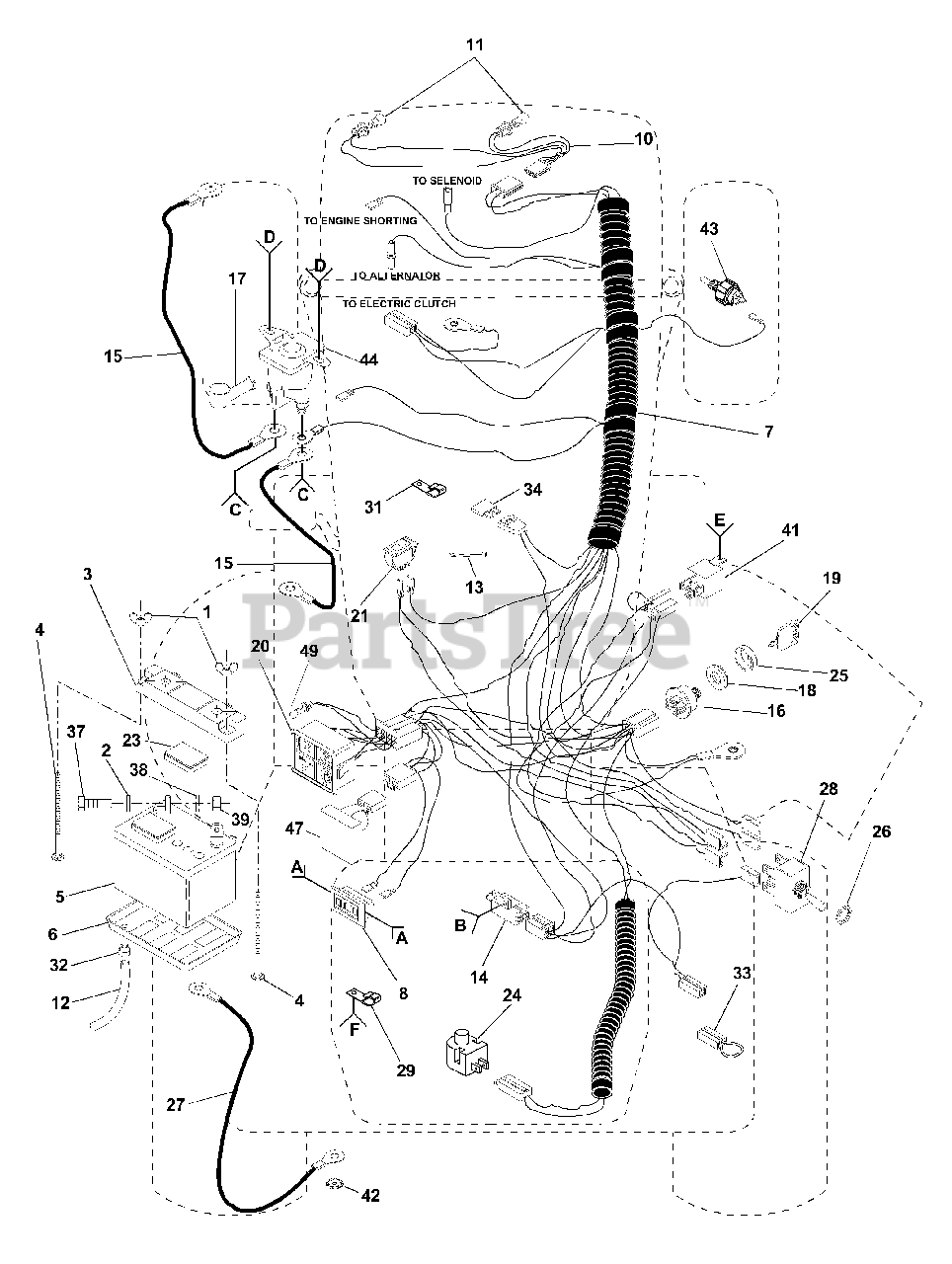

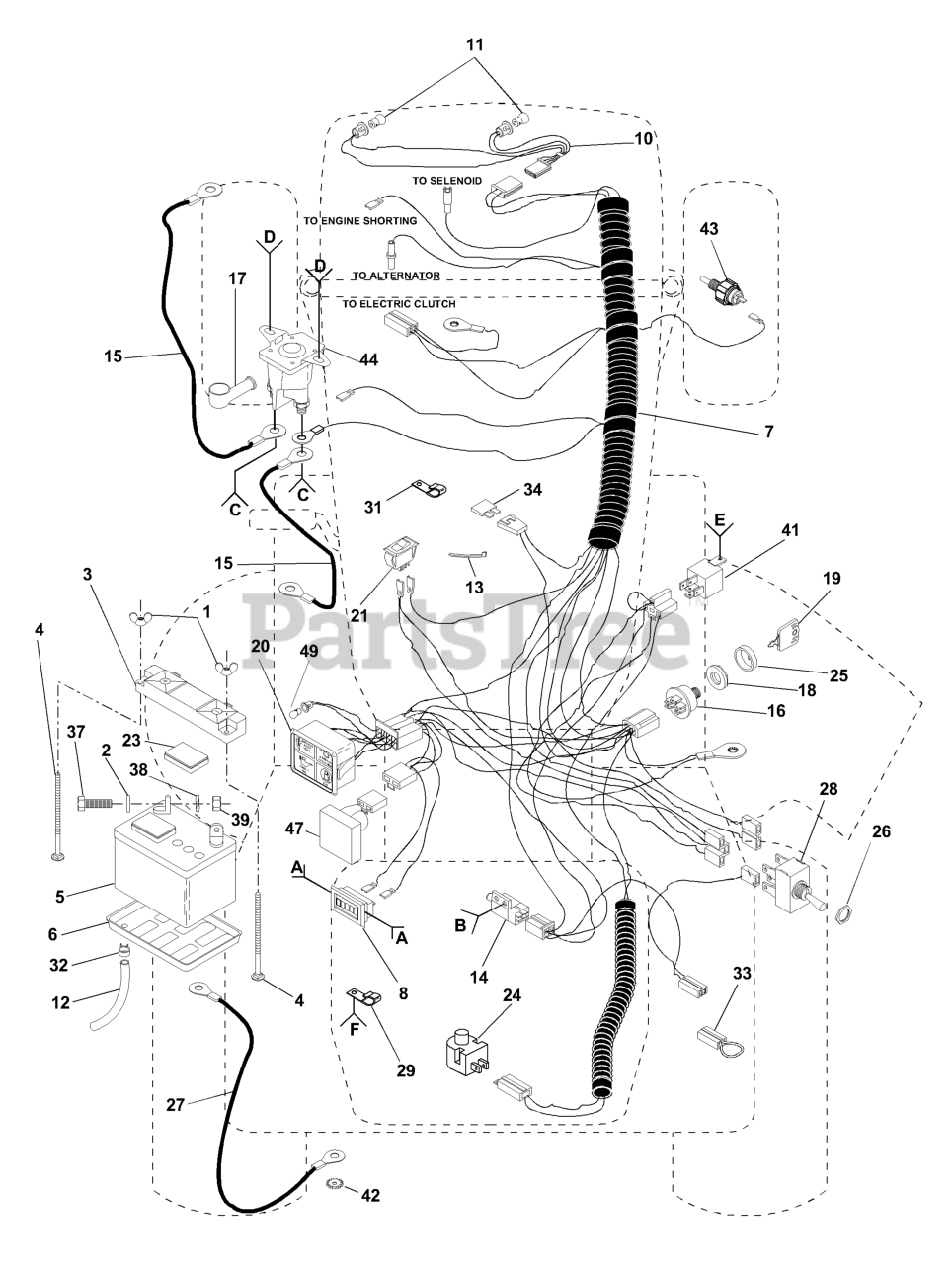

Electrical (Part 1) Parts Diagram

  • Title

1

Husqvarna 532123198

Nut, Wing 1/4-20
(Superseded to 532146525)

$

$

Not available

2

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Gauge

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532102476

Guard, Terminal
(Superseded to 532150109)

$

$

Not available

4

Husqvarna 872240460

Bolt, Carriage 1/4-20 x 7-1/2

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532121537

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

6

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532127371

Harness, Ignition

Note: (Includes Key #41)

$

$

Not available

8

Husqvarna 532110940

Meter, Hour
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

9

Husqvarna 817011008

Screw #10-24 x 1/2

$

$

Not available

10

Husqvarna 532110859

Harness, Socket Light

$

$

Not available

11

Husqvarna 532124893

Bulb, Light
(Superseded to 532007662)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532100541

Tube, Tray Battery
(Superseded to 532007697)

$

$

Not available

13

Husqvarna 532124756

Tie, Cable
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532109553

Switch, Interlock (Clutch)
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532124770

Cable, Battery
(Superseded to 532185464)

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532102972

Switch, Ignition
(Superseded to 532158913)

$66.99

$

In Stock, only 1 left!

0

17

Husqvarna 532124783

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

18

Husqvarna 532109788

Nut, Ignition
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

19

Husqvarna 532122147

Key, Molded

$

$

Not available

20

Husqvarna 532124524

Package, Light

$

$

Not available

21

Husqvarna 532110712

Switch, Light

$9.49

$

In Stock, only 4 left!

0

22

Husqvarna 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

23

Husqvarna 532121264

Caps, Battery

$

$

Not available

24

Husqvarna 532121305

Switch, Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

25

Husqvarna 532109787

Bezel, Ignition
(Superseded to 584446901)

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532124932

Nut, Hex
(Superseded to 532004022)

$

$

Not available

27

Husqvarna 532124773

Cable, Battery
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532126018

Switch, PTO

$

$

Not available

29

Husqvarna 532124995

Clip, Insulated

$

$

Not available

30

Husqvarna 817021008

Screw, Hex, Tap #10-24 UNC

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 532124996

Clip, Line Fuel
(Superseded to 532002751)

$

$

Not available

32

Husqvarna 532109596

Clamp, Hose

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532102501

Loop, Wire

$

$

Not available

34

Husqvarna 532108824

Fuse

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 874780408

Bolt, Hex 1/4-20 x 1/2 Grade 5
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 873510400

Nut, Hex, Keps 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

37

Husqvarna 874760412

Bolt, Hex 1/4-20 x 3/4

$7.49

$

In Stock, only 1 left!

0

38

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

39

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

40

Husqvarna 811050400

Washer, Lock, External Tooth 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

41

Husqvarna 532109748

Relay

$30.99

$

In Stock, only 1 left!

0

42

Husqvarna 811050600

Washer, Lock, External Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532126825

Switch, Oil Sensor

$

$

Not available

44

Husqvarna 532109081

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 3 left!

0

45

Husqvarna 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

46

Husqvarna 873350400

Nut, Hex, Jam 1/4-20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

47

Husqvarna 532127385

Sensor, Low Voltage

$

$

Not available

48

Husqvarna 817190408

Screw, Hex Washer Thrd. Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 110143X

Bulb, Light Package

$

$

Not available

Husqvarna 532101539

Sheet, Instruction, Tractor 15° Slope (English)

$

$

Not available

Husqvarna 532101572

Sheet, Instruction, Tractor 15° Slope (French)

$

$

Not available

Husqvarna 532123999

Manual, Operator's (English)

$

$

Currently unavailable

Husqvarna 532124000

Manual, Operator's (French)

$

$

Currently unavailable

Husqvarna 532121549

Decal, Battery, Caution

$

$

Not available
