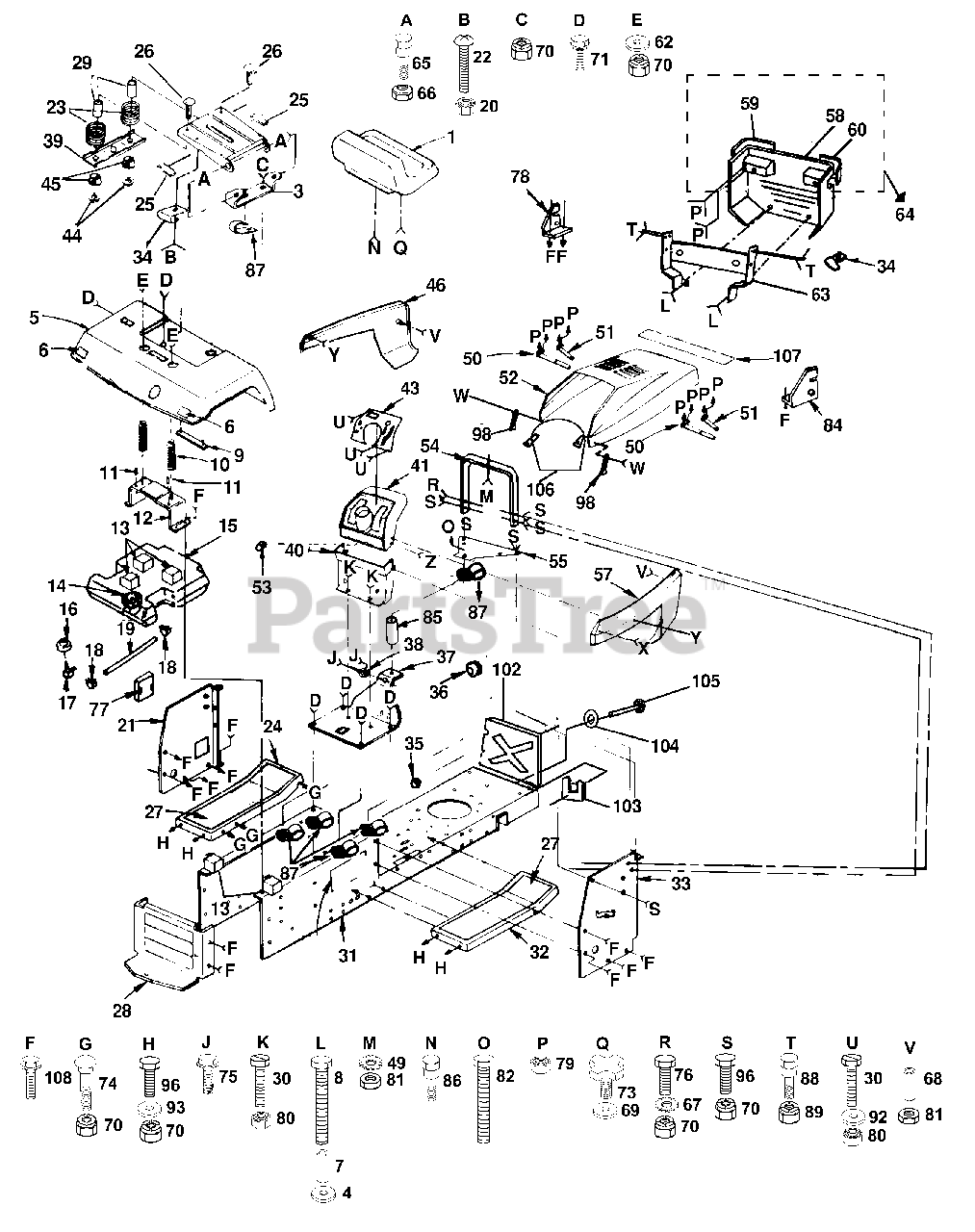

YT 161 H (127589) - Husqvarna Yard Tractor (1990-11) Chassis And Enclosures (Part 1) Parts Diagram

Yard Tractor

Chassis And Enclosures (Part 1) Parts Diagram

  • Title
1

Husqvarna 532124186

Seat
(Superseded to 532401043)

$

$

Not available

2

$

$

Not available

3

Husqvarna 532126656

Bracket, Pivot, Seat

$

$

Not available

4

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

5

Husqvarna 532124927

Fender
(Superseded to 532121642)

$

$

Not available

6

Husqvarna 532106202

Reflector, Taillight

$

$

Not available

$

$

Not available

8

Husqvarna 874760440

Bolt, Fin, Hex 1/4-20 x 2-1/2

$2.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532105511

Strap, Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532124181

Spring, Compression, Seat
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

11

$2.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532105509

Bracket, Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532006431

Pad, Spacer

$

$

Not available

14

$

$

Not available

15

Husqvarna 532106020

Tank, Fuel

$

$

Not available

16

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 532124951

Stem, Tank, Fuel
(Superseded to 532008710)

$

$

Not available

18

Husqvarna 532123487

Clamp, Hose

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532124953

Line, Fuel
(Superseded to 532008542)

$

$

Not available

20

Husqvarna 873951000

Nut, Keps #10

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532124118

Panel, Dash, L.H.

$

$

Not available

22

Husqvarna 874641008

Screw, Pan Hd. #10-32

$2.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532123740

Spring, Compression

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532124899

Footrest, L.H.

$

$

Not available

25

Husqvarna 532121251

Foam, Strip

$

$

Not available

26

Husqvarna 872170410

Bolt, Carriage 1/4-20 x 1-1/4

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532108256

Pad, Footrest

$

$

Not available

28

Husqvarna 532121306

Drawbar
(Superseded to 532145009)

$

$

Not available

29

Husqvarna 532121249

Spacer, Split

$6.49

$

In Stock, only 2 left!

0

30

Husqvarna 874180512

Screw, Mach. Cr. Thd. 5/16-18 x 3/4

$

$

Not available

31

$

$

Not available

32

Husqvarna 532124914

Footrest, R.H.
(Superseded to 532145243)

$

$

Not available

33

Husqvarna 532110828

Panel, Dash, R.H.

$

$

Not available

34

Husqvarna 532004171

Clip, Insulated
(Superseded to 532124967)

$

$

Not available

35

Husqvarna 532110436

Grommet, Split
(Superseded to 532009151)

$

$

Not available

36

$

$

Not available

37

Husqvarna 532124766

Saddle
(Superseded to 532121195)

$

$

Not available

38

Husqvarna 532124720

Bushing, Steering
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

39

Husqvarna 532121246

Bracket, Switch Mount
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532104805

Assembly, Dash, Lower

$

$

Not available

41

Husqvarna 532124182

Dash
(Superseded to 532140452)

$

$

Not available

42

Husqvarna 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 532124918

Plate, Dash

$

$

Not available

44

Husqvarna 532123976

Locknut, Flange Hex, Large
(Superseded to 873900400)

$4.99

$

In Stock, Qty 15

0

45

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532125009

Panel, Side, L.H.

$

$

Not available

49

Husqvarna 811050400

Washer, Lock, Tooth External 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

50

Husqvarna 532106784

Assembly, Strap Hinge, Rear

$

$

Not available

51

Husqvarna 532104618

Assembly, Strap Hinge, Front

$

$

Not available

52

Husqvarna 532125007

Hood
(Superseded to 532125454)

$

$

Not available

53

Husqvarna 532005479

Plug, Button

$5.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532124130

Support, Dash

$

$

Not available

55

Husqvarna 532106965

Plate, Support, Battery

$

$

Not available

57

Husqvarna 532125008

Panel, Side, R.H.
(Superseded to 532140677)

$

$

Not available

58

Husqvarna 532127325

Grill
(Superseded to 532157236)

$

$

Not available

59

Husqvarna 532124250

Lens, L.H.
(Superseded to 532157068)

$

$

Not available

60

Husqvarna 532124251

Lens, R.H.
(Superseded to 532157069)

$

$

Not available

62

Husqvarna 819131614

Washer 13/32 x 1 x 14 Gauge
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532124574

Support, Grill, Assembly

$

$

Not available

64

Husqvarna 532127320

Assembly, Grill
(Superseded to 532157236)

Note: (Inc. Key 59 & 60)

$

$

Not available

65

Husqvarna 532105529

Bolt, Shoulder 5/16-18
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

66

Husqvarna 873680500

Locknut 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

67

Husqvarna 811050600

Washer, Lock Tooth External 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

$

$

Not available

69

Husqvarna 819171912

Washer 17/32 x 1-3/16 x 12 Gauge

$7.49

$

In Stock, only 1 left!

0

70

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 817490608

Screw, Hex Washer Thread Rolling 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532120068

Knob, 1/2" Seat
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

74

Husqvarna 872140606

Bolt, Carriage 3/8-16 x 3/4

$

$

Not available

75

Husqvarna 817431008

Screw, Hex Self Tapping #10-16 x 1/2
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

77

Husqvarna 532121794

Cover, Access

$

$

Not available

78

Husqvarna 532110852

Bracket Assembly, L.H.

$

$

Not available

79

Husqvarna 873510400

Nut, Keps, Hex 1/4-20 UNC
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

80

Husqvarna 873510500

Nut, Keps, 5/16-18 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

81

Husqvarna 873220400

Nut, Fin, Hex 1/4-20 UNC
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

82

Husqvarna 874760532

Bolt, Hex 5/16-18 x 2

$2.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532110853

Bracket, Assembly R.H.

$

$

Not available

$

$

Not available

86

Husqvarna 532127018

Bolt, Shoulder 5/16-18 x .62

$7.49

$

In Stock, only 1 left!

0

87

Husqvarna 532124996

Clip
(Superseded to 532002751)

$

$

Not available

88

Husqvarna 532123481

Bolt, Shoulder 1/4-20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

89

Husqvarna 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

92

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Gauge
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

93

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

96

Husqvarna 874760612

Bolt, Hex 3/8-16 x 3/4

$4.99

$

In Stock, only 3 left!

0

98

Husqvarna 532109808

Latch, Hood

$6.99

$

In Stock, Qty 13

0

102

Husqvarna 532108105

Shield, Heat

$

$

Not available

103

Husqvarna 532105839

Receptacle, 1/4 Turn

$3.99

$

In Stock, only 1 left!

0

104

Husqvarna 532105838

Retainer, 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

105

Husqvarna 532123650

Stud, 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

106

Husqvarna 532126493

Baffle, Vertical

$

$

Not available

107

Husqvarna 532105037

Foam, Strip 18"

$

$

Not available

108

Husqvarna 817490612

Screw, Hex Washer, Thread Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

Husqvarna 532124480

Decal, Hood, L.H.

$

$

Not available

Husqvarna 532124481

Decal, Hood, R.H.

$

$

Not available

Husqvarna 532124483

Decal, Grill, Logo

$

$

Not available

Husqvarna 532127403

Decal, Side Panels

$

$

Currently unavailable

Husqvarna 532124484

Decal, Fender (Fender Rear)

$

$

Not available

Husqvarna 532120822

Decal, Caution (Fender Front)

$

$

Not available

Husqvarna 532101892

Decal, Clutch/Brake

$

$

Not available

Husqvarna 532108813

Decal, Caution (Dash)

$

$

Not available

Husqvarna 532121215

Decal, Belt Instr. (Under Footrest)

$

$

Not available
