YT 160 BR - Electrolux/AYP Lawn Tractor POWER, MECHANICAL CONTROLS Parts Diagram

Lawn Tractor

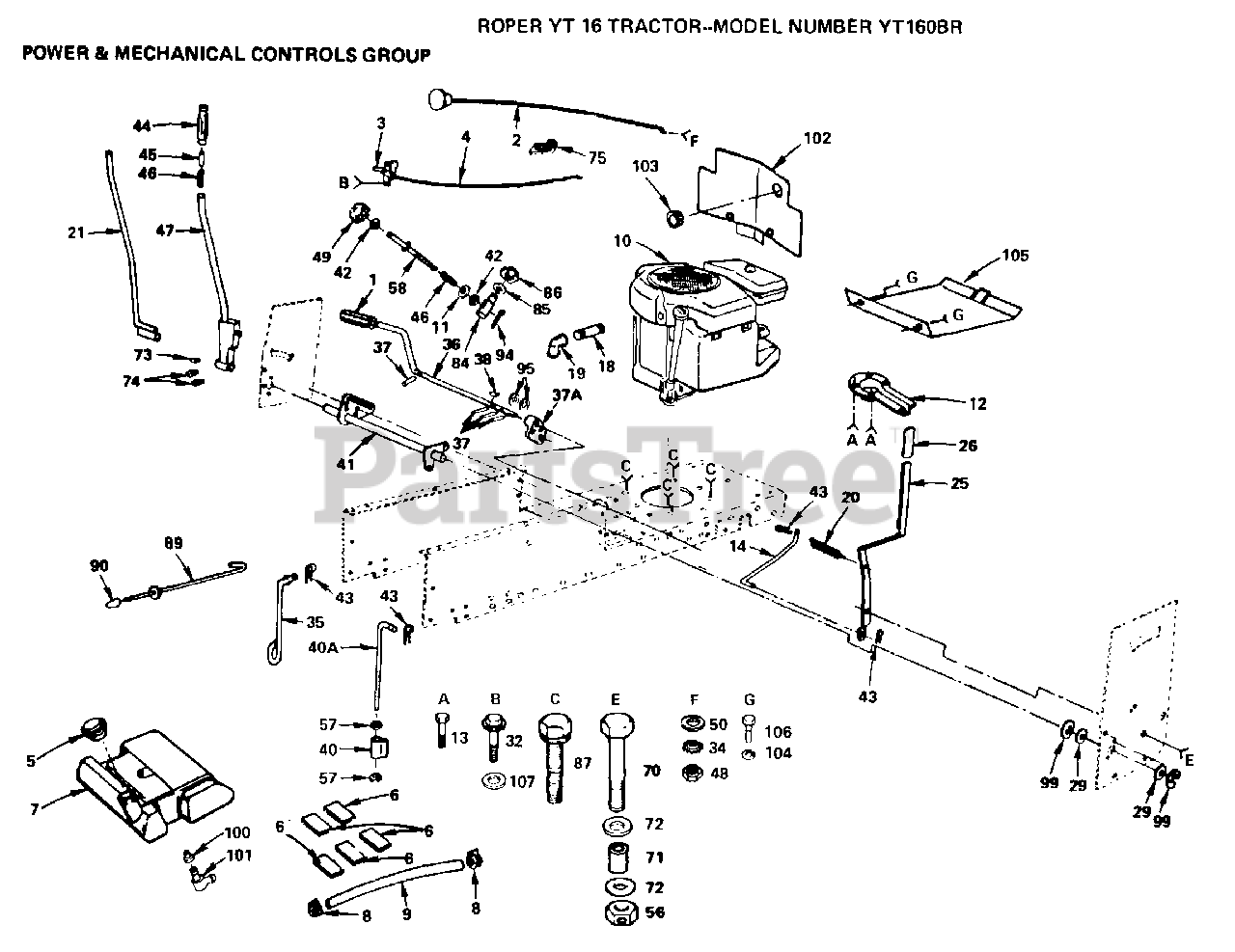

POWER, MECHANICAL CONTROLS Parts Diagram

  • Title
1

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

4

Electrolux/AYP 104870X

THROTTLE CONTROL

$

$

Not available

5

Electrolux/AYP 4609J

SUB= 158990

$

$

Not available

6

Electrolux/AYP 6431J

PAD-SPACER T
(Superseded to 532106082)

$

$

Not available

7

Electrolux/AYP 3616J

SUB= 151346

$

$

Not available

8

Electrolux/AYP 6999R

SUB= 123487X

$

$

Not available

9

$

$

Not available

10

Electrolux/AYP 402707

ENGINE, B&S

$

$

Not available

11

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

12

Electrolux/AYP 677A690

SUB= 108767X

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

$

$

Not available

18

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

19

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

20

Electrolux/AYP 102727X

"SPRING.EXT.8.5"""
(Superseded to 532102727)

$

$

Not available

21

Electrolux/AYP 104598X

ROD ASSY-LEVER LT

$

$

Not available

25

Electrolux/AYP 104790X

HANDLE-CLUTCH L

$

$

Not available

26

Electrolux/AYP 4617J

SUB= 532131861
(Superseded to 532131861)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

34

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 102911X

SUB= 106660X

$

$

Not available

36

$

$

Not available

37

Murray 1572H

SUB= 2882J

$

$

Not available

$

$

Not available

38

Murray 2228M

SUB= 2228M1

$

$

Not available

$

$

Not available

40A

$

$

Not available

41

Electrolux/AYP 102507X

SHAFT ASSY YTV

$

$

Not available

42

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

43

Murray 4939M

SUB= 85902

$

$

Not available

44

Electrolux/AYP 2895H

HANDLE GRIP T
(Superseded to 583731301)

$2.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 8016J

SUB= 125925X

$

$

Not available

46

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 104597X

LEVER ASSY LT

$

$

Not available

48

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

49

$

$

Not available

50

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

58

Electrolux/AYP 100735K

ROD ADJUST LT

$

$

Not available

70

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 100644K

BUSHING LT
(Superseded to 532100644)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

84

$

$

Not available

85

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

86

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

$

$

Not available

90

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

95

$

$

Not available

99

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 8710J

FUEL TANK STEM GT

$

$

Not available

102

$

$

Not available

103

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

104

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

105

$

$

Not available

106

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

107

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0
