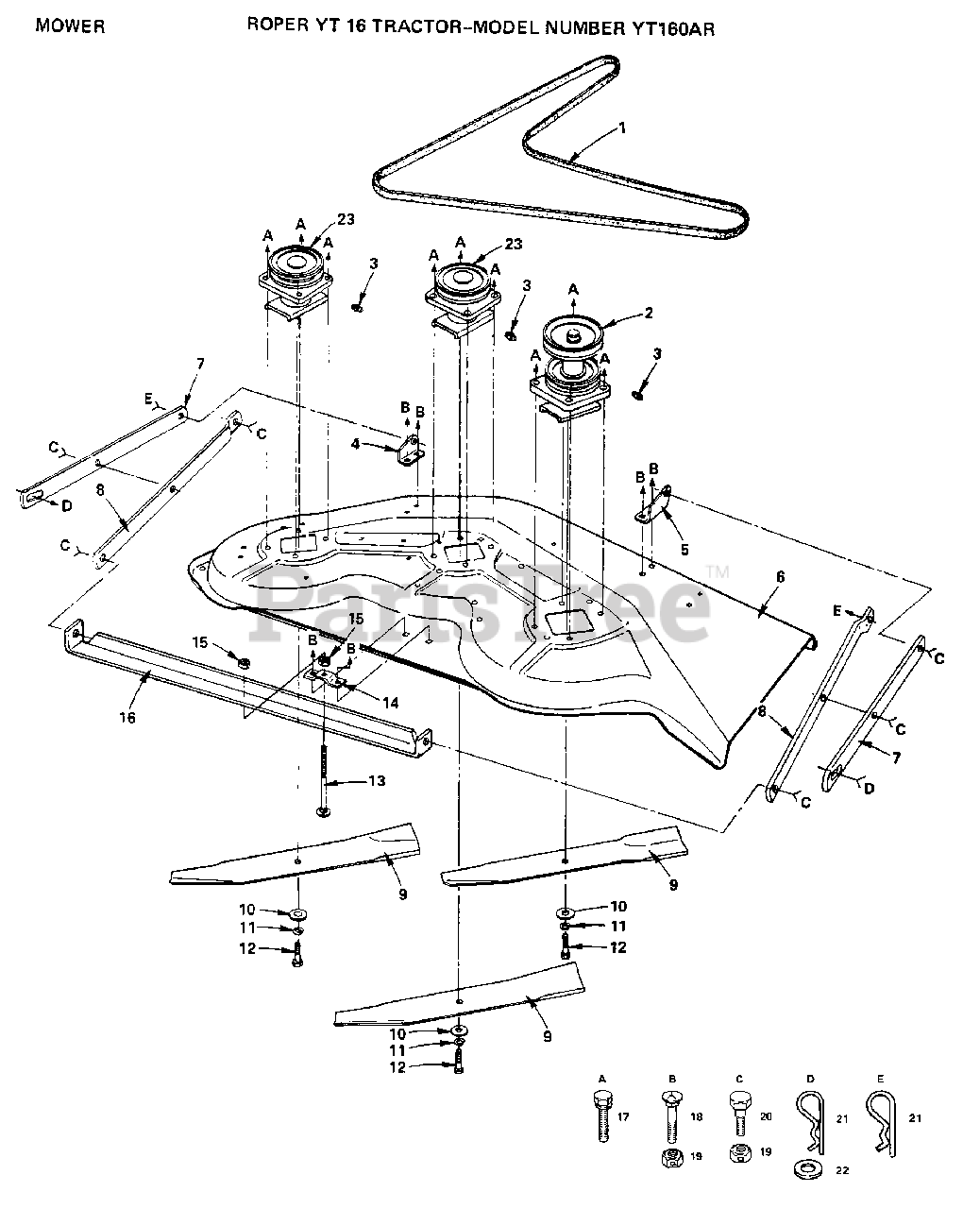

YT 160 AR - Electrolux/AYP Lawn Tractor MOWER DECK, BLADES, BELT Parts Diagram

Lawn Tractor

MOWER DECK, BLADES, BELT Parts Diagram

  • Title

1

Electrolux/AYP 100670N

SUB= 106085X

$

$

Not available

2

Electrolux/AYP 102920X

SUB= 105195X

$

$

Not available

3

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 102918X

BRACKET LH YTV

$

$

Not available

5

Electrolux/AYP 102917X

BRACKET RH YTV

$

$

Not available

6

Electrolux/AYP 102891X

SUB= 135745

$

$

Not available

7

Electrolux/AYP 100661L

ARM SUSPENS. LTV

$

$

Not available

8

Electrolux/AYP 100660L

ARM SUSPENS. LTV

$

$

Not available

9

Electrolux/AYP 100140M

SUB= 25034

$

$

Not available

10

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 72160640

BOLT

$

$

Not available

14

Electrolux/AYP 100836K

BRACKET GTV

$2.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 102919X

CROSSBAR YTV

$

$

Not available

17

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

19

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 100662K

BOLT SHOULDER LTV
(Superseded to 583637601)

$9.49

$

Usually ships in 3-10 days

0

21

Murray 4939M

SUB= 85902

$

$

Not available

22

Electrolux/AYP 19171616

WASHER

$2.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 100135L

SUB= 105194X

$

$

Not available

Electrolux/AYP 2557R

SUB= 25651

$

$

Not available
