YT 160 (954000582-A) - Husqvarna Yard Tractor (1993-01) Drive Parts Diagram

Yard Tractor

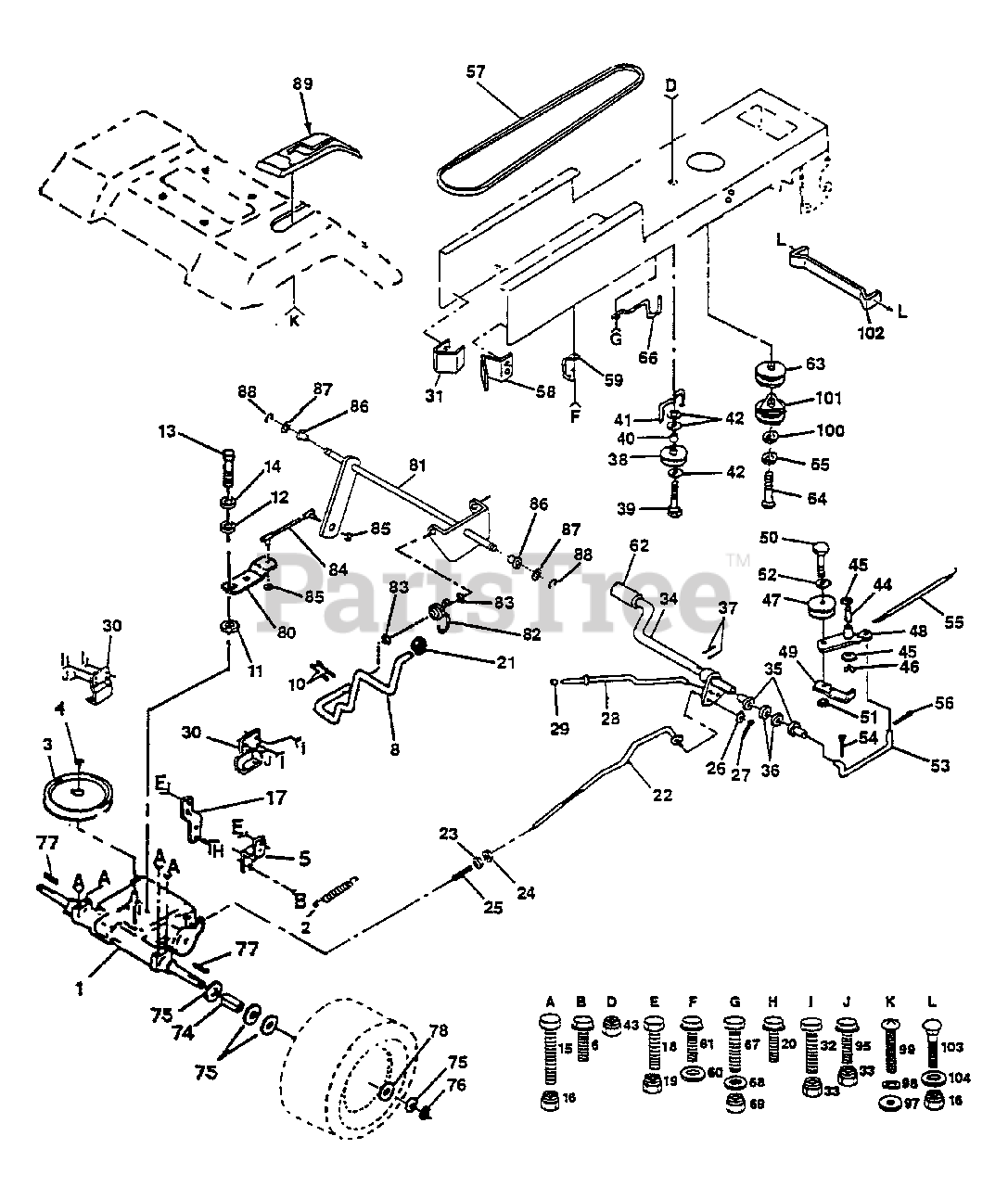

Drive Parts Diagram

  • Title
1

Transaxle 6sp Dana LT Model # 4360-52

$

$

Not available

2

Husqvarna 532110422

Spring Return Brake T/a Zinc
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

3

Husqvarna 532123667

Pulley Transaxle 20" tires

$

$

Not available

4

Husqvarna 812000028

Ring Retainer # 5100-62

$7.49

$

In Stock, Qty 8

0

5

Husqvarna 532121520

Strap Torque 30 Degrees

$7.99

$

In Stock, only 3 left!

0

6

Husqvarna 817490512

Screw Thdrol 5/16-18 X 3/4 TYT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532127288

Rod Shifter
(Superseded to 532141002)

$

$

Not available

10

Husqvarna 876020416

Pin Cotter 1/8 X 1 Cad

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532105701

Washer Plate Shf 388 Sq Hole

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 819151216

Washer 15/32 X 3/4 X 16 Ga

$

$

Not available

13

Husqvarna 871040412

Bolt Fin Hex 1/4-28unf x 3/4 Gr8

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 874760540

Bolt Fin Hex 5/16-18unc x 2 1/2

$2.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873680500

Nut Crown Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532121520

Strap Torque LT

$7.99

$

In Stock, only 3 left!

0

18

Husqvarna 874760612

Bolt Fin Hex 3/8-16unc X 3/4

$4.99

$

In Stock, only 3 left!

0

19

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 817490512

Screw Thdrol 5/16-18 X 3/4 TYT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532121274

Knob Duckhead 3/8-16unc Blk

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532130804

Rod Brake Blk Zinc 27 326

$31.99

$

Usually ships in 3-10 days

0

23

Husqvarna 873800600

Nut Lock Hex W/wsh 3/8-16unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

Spring Rod Brake 2 00 Zinc
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 819131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532133261

Rod Brake Parking 14 500

$

$

Not available

29

Husqvarna 532071673

Cap Brake Parking Black

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532130807

Bracket Mtg Transaxle

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532127289

Keeper Belt LH LT 14 Ga

$

$

Not available

32

Husqvarna 874760512

Bolt Hex Hd 5/16-18unc X 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 873680500

Nut Crown Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532122424

Shaft Asm Pedal Foot 1 930

$

$

Not available

35

Husqvarna 532120183

Bearing Nylon Blk 629 Id

$6.99

$

In Stock, only 4 left!

0

36

Husqvarna 819211616

Washer 21/32 X 1 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

Pin Roll 3/16 X 1"
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

38

Husqvarna 532123674

Pulley Idler Flat

$31.99

$

In Stock, only 1 left!

0

39

Husqvarna 874760644

Bolt Fin Hex 3/8-16unc X 2-3/4

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532124965

Spacer Split 395 X 59 Bzp

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532109070

Keeper Belt Retainer

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 873680600

Nut Crowniock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532105706

Bearing Nyl 503 X 628 X 1 25

$7.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532110812

Washer Hardened

$

$

Not available

46

Husqvarna 812000039

Ring Klip #t5304-50

$6.49

$

In Stock, Qty 7

0

47

Husqvarna 532127783

Pulley Idler V Groove Plastic
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

48

Husqvarna 532123789

Bellcrank Asm Clutch

$

$

Not available

49

Husqvarna 532123205

Retainer Belt Style Spring

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

Bolt Hex Hd 3/8-16unc X 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873680600

Nut Crowniock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 532105710

Link Clutch 7 66
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

54

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

55

Husqvarna 532105709

Spring Return Clutch 6 75

$11.99

$

In Stock, only 2 left!

0

56

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

57

Husqvarna 532131006

V-Belt Ground Drive 95 25 42"

$

$

Not available

58

Husqvarna 532127290

Keeper Belt RH LT Pnt/zinc 16g

$2.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532136715

Keeper Belt Chassis Span Ctr

$

$

Not available

60

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt.
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Husqvarna 532123533

Cover Pedal Premuim

$6.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532136905

Engine Pulley LT/YT
(Superseded to 532140189)

$42.99

$

Usually ships in 3-10 days

0

64

Husqvarna 871170768

Bolt, Hex 7/16-20 x 4-1/4
(Superseded to 532150280)

$4.99

$

In Stock, only 1 left!

0

65

Husqvarna 810040700

Washer Lock Hvy Hlcl Spr 7/16
(Superseded to 539990247)

$

$

Not available

66

Husqvarna 532129921

Keeper Belt Engine LH LT

$

$

Not available

67

Husqvarna 874760616

Bolt Fin Hex 3/8-16unc X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

69

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532109502

Spacer Split

$

$

Not available

75

Husqvarna 532121749

Washer 25/32 X 1 1/4 X 16 Ga

$3.49

$

Usually ships in 3-10 days

0

76

Husqvarna 812000001

E-ring #5133-75

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

Key Square 2 0 X 184511865

$4.99

$

In Stock, Qty 7

0

78

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

80

Husqvarna 532131487

Arm Shift Transaxle

$

$

Not available

81

Husqvarna 532136933

Shaft Asm Cross 20"t 42" deck
(Superseded to 532161077)

$

$

Not available

82

Husqvarna 532123782

Spring Torsion T/a

$

$

Not available

83

Husqvarna 819171216

Washer 17/32 X 3/4 X 16 Ga
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

84

Husqvarna 532132183

Rod Tie Shift Adj Ball

$60.99

$

Usually ships in 3-10 days

0

85

Husqvarna 873530400

Nut Nylock 1/4-28
(Superseded to 873610400)

$

$

Not available

86

Husqvarna 532071208

Bushing Rod Strg 629/632 Id

$3.99

$

Usually ships in 3-10 days

0

87

Husqvarna 819212016

Washer 21/32 X 1-1/4 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

88

Husqvarna 812000008

Ring Klip #5304-62

$6.49

$

Usually ships in 3-10 days

0

89

Husqvarna 532127287

Console Shift 6sp W/ign LT

$

$

Not available

95

Husqvarna 817490612

Screw Thdrol 3/8-16 x 314
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

97

Husqvarna 819060718

Washer 3/16 X 7/16 X 18 Ga

$2.99

$

Usually ships in 3-10 days

0

98

Husqvarna 810100800

Washer Lock #8

$3.99

$

Usually ships in 3-10 days

0

99

Husqvarna 874640808

Screw #8x1/2

$3.99

$

Usually ships in 3-10 days

0

100

Husqvarna 532126197

Washer 1-1/2 OD X 15/32 ID X .250

$8.99

$

In Stock, only 3 left!

0

101

Husqvarna 532137140

Clutch Electric
(Superseded to 532142600)

$

$

Not available

102

Husqvarna 532137141

Bracket Asm. Clutch

$

$

Not available

103

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

104

Husqvarna 819111012

Washer 11/32 x 5/8 x 12 Ga.

$6.49

$

Usually ships in 3-10 days

0
