YT 160 (954000582-A) - Husqvarna Yard Tractor (1993-01) Chassis And Enclosures Parts Diagram

Yard Tractor

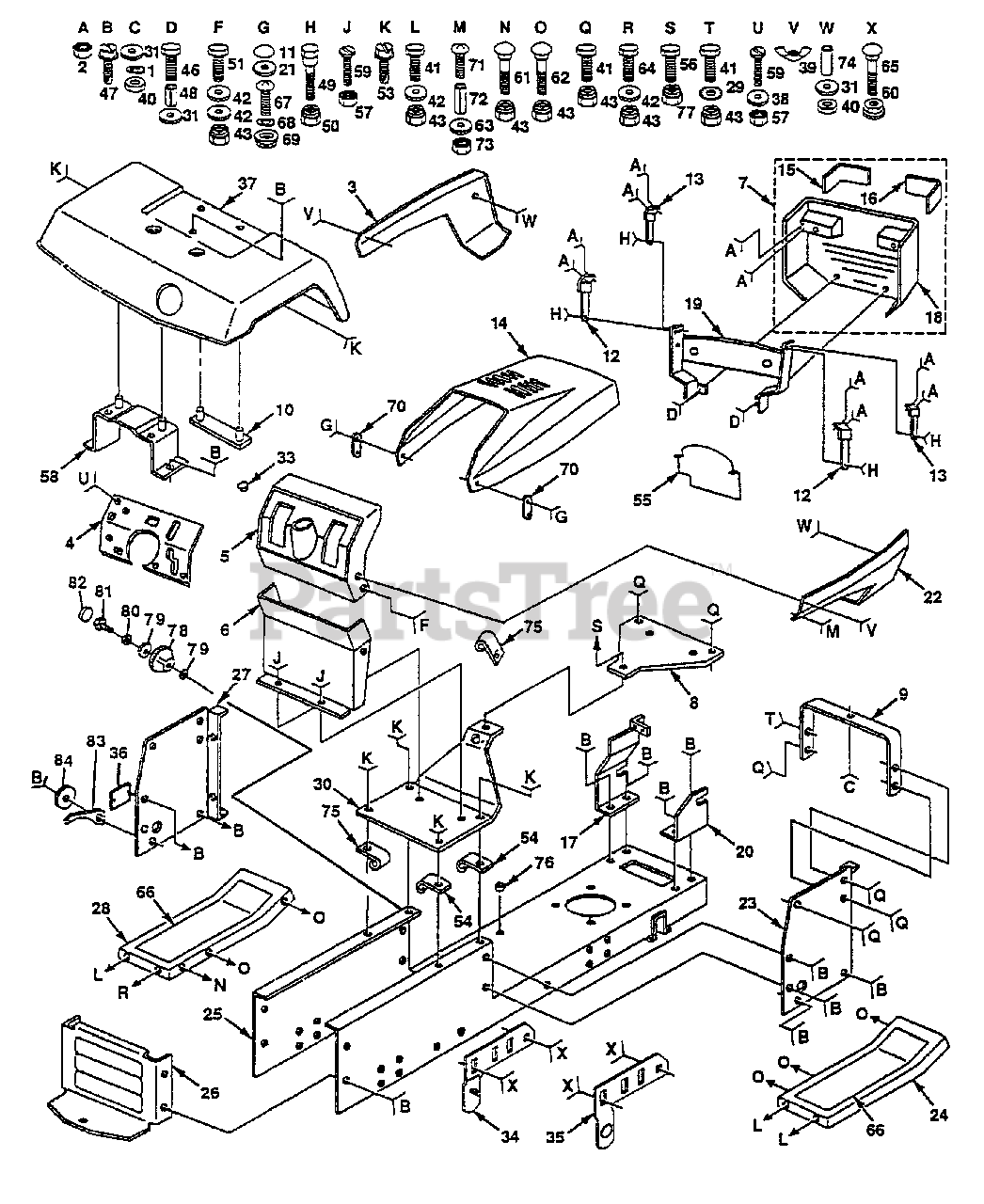

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 810040400

Washer, Lock, Hvy Hlcl 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 873510400

Nut, Hex, Keps 1/4-20 UNC
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

3

Husqvarna 532125389

Side Panel, LH
(Superseded to 532140676)

$

$

Not available

4

Husqvarna 532138334

Plate, Dash

$

$

Not available

5

Husqvarna 532124182

Dashboard
(Superseded to 532140452)

$

$

Not available

6

Husqvarna 532104805

Dash, Lower

$

$

Not available

7

Husqvarna 532127320

Grill Assembly
(Superseded to 532157236)

$

$

Not available

8

Husqvarna 532137654

Plate, Battery Support
(Superseded to 532140181)

$

$

Not available

9

Husqvarna 532124130

Support, Dash

$

$

Not available

10

Husqvarna 532105511

Strap, Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532110356

Cap, Black

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532106784

Strap Assembly, Hinge, Rear

$

$

Not available

13

Husqvarna 532104618

Strap Assembly, Hinge, Front

$

$

Not available

14

Husqvarna 532125007

Hood
(Superseded to 532125454)

$

$

Not available

15

Husqvarna 532124250

Lens, Headlight, LH, Smoked
(Superseded to 532157068)

$

$

Not available

16

Husqvarna 532124251

Lens, Headlight, RH, Smoked
(Superseded to 532157069)

$

$

Not available

17

Husqvarna 532110853

Pivot Bracket Assembly, LH

$

$

Not available

18

Husqvarna 532127325

Grille
(Superseded to 532157236)

$

$

Not available

19

Husqvarna 532124574

Support Assembly, Grille

$

$

Not available

20

Husqvarna 532110852

Pivot Bracket Assembly, RH

$

$

Not available

21

Husqvarna 532110357

Washer, Cap

$

$

Not available

22

Husqvarna 532125390

Side Panel, RH

$

$

Not available

23

Husqvarna 532136970

Dash Panel, RH

$

$

Not available

24

Husqvarna 532124914

Footrest, RH
(Superseded to 532145243)

$

$

Not available

25

Husqvarna 532135034

Chassis

$

$

Not available

26

Husqvarna 532137275

Drawbar
(Superseded to 532145009)

$

$

Not available

27

Husqvarna 532136967

Dash Panel, LH

$

$

Not available

28

Husqvarna 532124899

Footrest, LH

$

$

Not available

29

Husqvarna 811050600

Washer, Lock, External Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

30

Husqvarna 532138884

Saddle

$

$

Not available

31

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Gauge

$

$

Not available

33

Husqvarna 532125085

Plug, Button

$

$

Not available

34

Husqvarna 532134774

Pivot Bracket Assembly, Rear, LH

$

$

Not available

35

Husqvarna 532134775

Pivot Bracket Assembly, Rear, RH

$

$

Not available

36

Husqvarna 532121794

Cover Access

$

$

Not available

37

Husqvarna 532124929

Fender

$

$

Not available

38

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Gauge
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 532123198

Wing Nut, Plastic 1/4-20
(Superseded to 532146525)

$

$

Not available

40

Husqvarna 873220400

Nut, Hex, Fin. 1/4-20 UNC
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 874760612

Bolt, Hex, Fin. 3/8-16 UNC x 3/4

$4.99

$

In Stock, only 3 left!

0

42

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 874760440

Bolt, Hex 1/4-20 x 2-1/2

$2.99

$

Usually ships in 3-10 days

0

47

Husqvarna 817490612

Screw, Thd., Roll. 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

48

Husqvarna 532121235

Spacer, Split

$

$

Not available

49

Husqvarna 532123481

Bolt, Shoulder 1/4-20 UNC
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 873680400

Nut, Crownlock 1/4-20 UNC
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

51

Husqvarna 874760620

Bolt, Hex, Fin. 3/8-16 UNC x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 817490608

Screw, Thd., Roll. 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532126471

Clip, Insulator

$4.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532126493

Baffle, Vertical

$

$

Not available

56

Husqvarna 874760512

Bolt, Hex, Fin. 5/16-18 UNC x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 873510500

Nut, Hex, Keps 5/16-18 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532137113

Bracket Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

59

Husqvarna 874180512

Screw, Machine 5/16-18 UNC x 3/4

$

$

Not available

60

Husqvarna 873800600

Locknut, Hex, with Washer Insert 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 872140608

Bolt, Carriage 3/8-16 UNC x 1
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

62

Husqvarna 872110606

Bolt, Carriage 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

63

Husqvarna 819070818

Washer 7/32 x 1/2 x 18 Gauge

$6.99

$

Usually ships in 3-10 days

0

64

Husqvarna 874760614

Bolt, Hex, Fin. 3/8-16 UNC x 7/8
(Superseded to 874760616)

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 872140608

Bolt, Carriage 3/8-16 UNC x 1
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

66

Husqvarna 532108256

Pad, Footrest

$

$

Not available

67

Husqvarna 874191008

Screw, Machine, Cross Pan Head #10-24 x 1/2
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 810071000

Washer, Lock #10

$4.99

$

In Stock, Qty 11

0

69

Husqvarna 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 532109808

Latch, Chute

$6.99

$

In Stock, Qty 14

0

71

Husqvarna 874981020

Screw, Machine, Cross Pan Head #10-24 x 1-1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

72

Husqvarna 532007206

Spacer, Split #10 x 3/4

$7.49

$

In Stock, Qty 6

0

73

Husqvarna 873731000

Nut, Hex, Keps #10-24 UNC
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532001260

Spacer 17/64 x 1/2 x 3/8

$

$

Not available

75

Husqvarna 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

76

Husqvarna 532110436

Bushing, Snap Split
(Superseded to 532009151)

$

$

Not available

77

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532123934

Scale Ind. Height

$

$

Not available

79

Husqvarna 819112410

Washer 11/32 x 1-1/2 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 810040500

Washer Lock Hvy Hlcl Spr. 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

81

Husqvarna 874780516

Bolt Hex 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532123935

Plug Hole

$5.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532138346

Pointer Pnt Height Ind.
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532120529

Washer Nylon

$2.99

$

Usually ships in 3-10 days

0
