YT 150 (954840021-B) - Husqvarna Yard Tractor (1996-04) Dana Transaxle Model # 4360-96 Parts Diagram

Yard Tractor

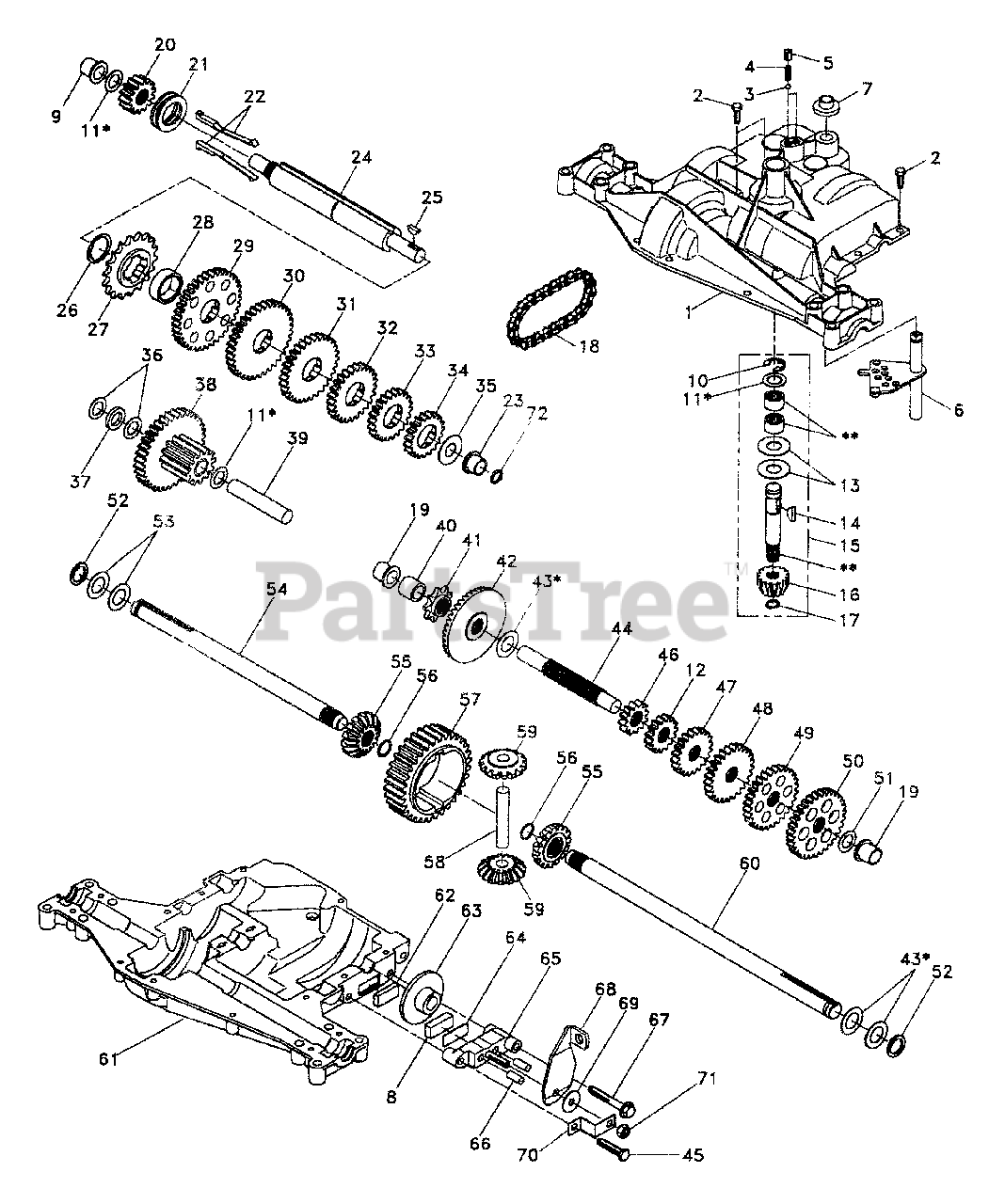

Dana Transaxle Model # 4360-96 Parts Diagram

  • Title

1

Husqvarna 532132671

Housing, Upper

$169.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532002274

Screw, Tapping, Large 1/4-20 x .734

$

$

Not available

3

Husqvarna 532134400

Ball, Detent
(Superseded to 532068003)

$

$

Not available

4

Husqvarna 532105904

Spring, Detent

$

$

Not available

5

Husqvarna 532105905

Screw, Set

$

$

Not available

6

Husqvarna 532138235

Kit, Shifter Assembly
(Superseded to 532134788)

$

$

Not available

7

Husqvarna 532134399

Boot, Shifter

$

$

Not available

8

Husqvarna 532120951

Puck, Friction

$

$

Not available

9

Husqvarna 532148266

Bearing, Flange

$

$

Not available

10

Husqvarna 532002225

Ring, Retaining

$

$

Not available

11

Husqvarna 532134793

Assembly, Kit, Shim, .625 Shaft

$

$

Not available

12

Husqvarna 532143679

Gear, Spur, 15 Teeth (2nd)

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532120415

Washer, Plain .632 x 1.38 x .046

$2.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532142674

Key, Woodruff, #9

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532106846

Assembly, Kit, Input Shaft

$

$

Not available

16

Husqvarna 532106095

Pinion, Bevel, 14 Teeth
(Superseded to 532167148)

$

$

Not available

17

Husqvarna 532105909

Ring, Retaining

$

$

Not available

18

Husqvarna 532105910

Chain, 24 Pitches

$

$

Not available

19

Husqvarna 532105911

Bearing, Flange

$

$

Not available

20

Husqvarna 532142675

Gear, Spur, 14 Teeth

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532148267

Collar, Clutch

$

$

Not available

22

Husqvarna 532138237

Assembly, Kit, Clutch Keys
(Superseded to 532138236)

$

$

Not available

23

Husqvarna 532148268

Bearing, Flange

$

$

Not available

24

Husqvarna 532142676

Shaft, Intermediate
(Superseded to 532143673)

$207.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532002244

Key, Woodruff, #61

$

$

Not available

26

Husqvarna 532105916

Ring, Retaining

$2.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532120470

Sprocket, 18 Teeth (Reverse)

$

$

Not available

28

Husqvarna 532110070

Spacer

$

$

Not available

29

Husqvarna 532142677

Gear, Spur, 37 Teeth (1st)

$

$

Not available

30

Husqvarna 532142681

Gear, Spur, 35 Teeth (2nd)

$

$

Not available

31

Husqvarna 532124644

Gear, Spur, 30 Teeth (3rd)
(Superseded to 583670301)

$66.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532108980

Gear, Spur, 25 Teeth (4th)

$

$

Not available

33

Husqvarna 532120406

Gear, Spur, 22 Teeth (5th)

$

$

Not available

34

Husqvarna 532134796

Gear, Spur, 19 Teeth (6th)

$87.69

$

Usually ships in 3-10 days

0

35

Husqvarna 532105925

Washer, Plain .640 x 1.37 x .061

$

$

Not available

36

Husqvarna 532002232

Washer, Plain .632 x 1.00 x .026

$

$

Not available

37

Husqvarna 532108978

Spacer .630 x 1.00 x .169

$

$

Not available

38

Husqvarna 532110079

Assembly, Gear, Combination, 12 Teeth and 35 Teeth

$

$

Not available

39

Husqvarna 532124639

Shaft, Idler

$36.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532120472

Spacer .633 x .87 x .755

$

$

Not available

41

Husqvarna 532105928

Sprocket, 9 Teeth (Reverse)

$

$

Not available

42

Husqvarna 532106605

Gear, Bevel, 42 Teeth

$

$

Not available

43

Husqvarna 532134394

Assembly, Kit, Shim, .750 Shaft

$

$

Not available

44

Husqvarna 532120473

Shaft, Drive

$

$

Not available

45

Husqvarna 532106596

Screw, Tapping, Large 5/16-18 x 1.44

$

$

Not available

46

Husqvarna 532142678

Gear, Spur, 12 Teeth (1st)

$

$

Not available

47

Husqvarna 532120407

Gear, Spur, 20 Teeth (3rd)

$

$

Not available

48

Husqvarna 532106589

Gear, Spur, 25 Teeth (4th)

$

$

Not available

49

Husqvarna 532120408

Gear, Spur, 28 Teeth (5th)

$

$

Not available

50

Husqvarna 532105937

Gear, Spur, 31 Teeth (6th)

$

$

Not available

51

Husqvarna 532002226

Washer, Plain .632 x 1.00 x .060

$

$

Not available

52

Husqvarna 532134401

Washer, Neoprene

$

$

Not available

53

Husqvarna 532002264

Washer, Plain .758 x 1.25 x .031

$

$

Not available

54

Husqvarna 532120474

Axle, L.H.
(Superseded to 532154658)

$132.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532110081

Gear, Miter, 15 Teeth
(Superseded to 532169651)

$

$

Not available

56

Husqvarna 532105941

Ring, Retaining

$

$

Not available

57

Husqvarna 532110071

Gear, Spur, 32 Teeth

$151.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532120952

Shaft, Cross

$

$

Not available

59

Husqvarna 532110082

Gear, Miter, 15 Teeth
(Superseded to 532169651)

$

$

Not available

60

Husqvarna 532120475

Axle, R.H.

$

$

Not available

61

Husqvarna 532142680

Housing, Lower

$

$

Not available

62

Husqvarna 532120961

Puck, Friction

$

$

Not available

63

Husqvarna 532007294

Disc, Brake

$

$

Not available

64

Husqvarna 532108989

Spacer

$

$

Not available

65

Husqvarna 532120953

Jaw, Brake
(Superseded to 532164670)

$

$

Not available

66

Husqvarna 532120954

Pin, Dowel

$

$

Not available

67

Husqvarna 532134799

Screw, Tapping 5/16-18 x 2.25

$

$

Not available

68

Husqvarna 532138244

Lever, Actuating
(Superseded to 532108992)

$

$

Not available

69

Husqvarna 532108996

Washer, Plain .321 x 1.00 x .055

$

$

Not available

70

Husqvarna 532120956

Bracket, Anti-Rotation

$

$

Not available

71

Husqvarna 873810500

Locknut 5/16-24
(Superseded to 873610500)

$

$

Not available

72

Husqvarna 532148269

Seal, Oil

$

$

Not available

73

Husqvarna 532120416

Grease
(Superseded to 532126976)

$47.99

$

Usually ships in 3-10 days

0
