YT 150 (954840021-A) - Husqvarna Yard Tractor (1996-01) Chassis And Enclosures Parts Diagram

Yard Tractor

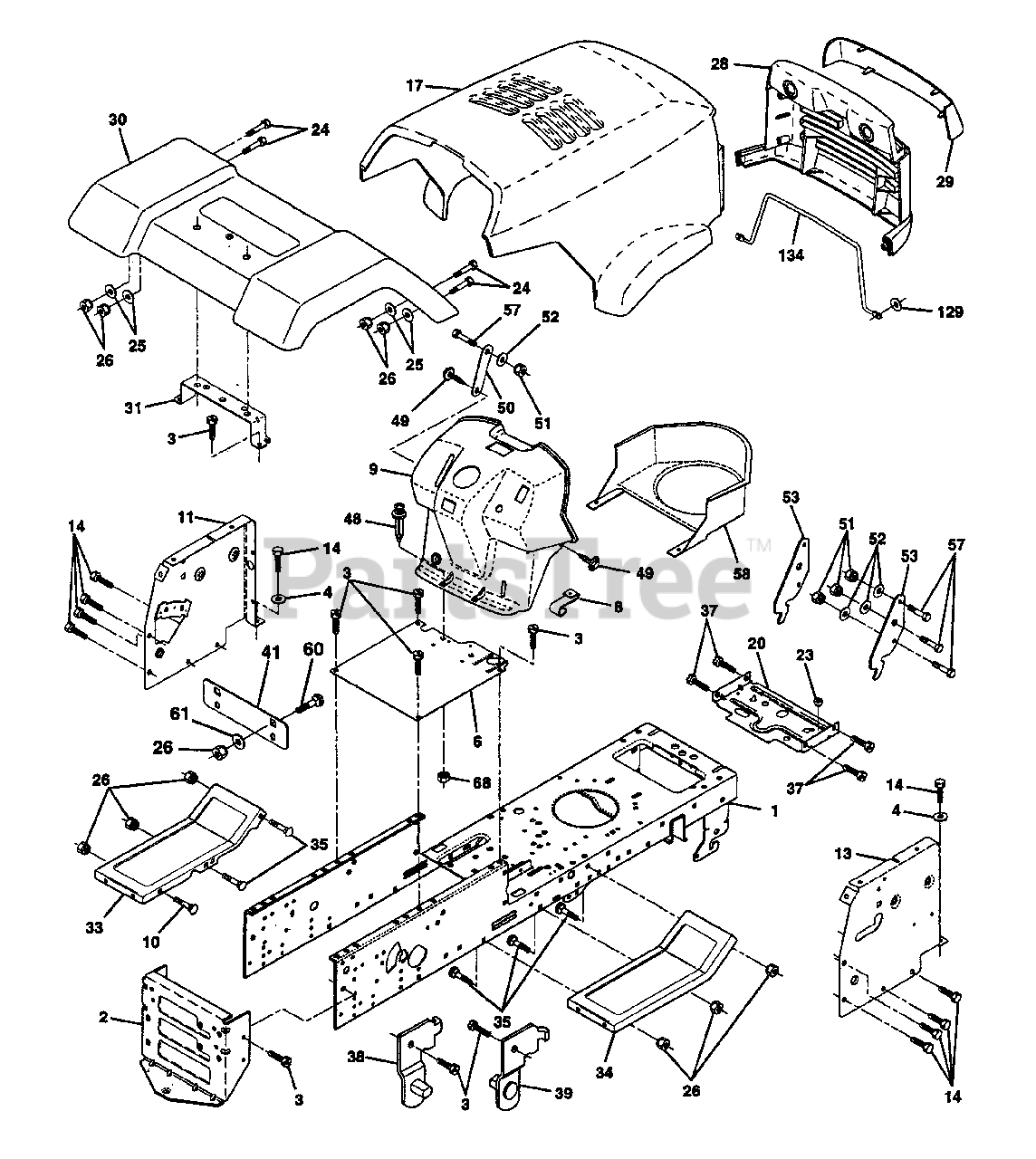

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532145501

Chassis Weldment 11 ga

$

$

Not available

2

Husqvarna 532140356

Drawbar, Stretch
(Superseded to 532145009)

$

$

Not available

3

Husqvarna 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 819131216

Washer 13/32 x 3/4 x 16 Ga.

$

$

Not available

6

Husqvarna 532145206

Saddle LT Fender Shift

$

$

Not available

8

Husqvarna 532126471

Clip insulator .406 Mtg Hole

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532151013

Dash Private Label

$

$

Not available

10

Husqvarna 872140608

Bolt Carriage 3/8-16 x 1
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 532146958

Panel Pnt Dash Lh

$

$

Currently unavailable

12

Husqvarna 532145660

Clip Tinnerman P/L

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 532146959

Panel Dash Rh

$

$

Not available

14

Husqvarna 817490608

Screw Thdrol 3/8-16x1/2 Ty-tt

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532149775

Hood Private Label LT Husq
(Superseded to 532156051)

$519.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532145210

Plate Pnt Mtg Btry/FL
(Superseded to 532180679)

$11.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532124028

Bushing

$5.99

$

In Stock, only 3 left!

0

24

Husqvarna 874780616

Bolt Fin Hex 3/8-16unc X 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

Nut Lock Hex W/Ins 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532149776

Grille Private Label/LT
(Superseded to 532156880)

$

$

Not available

29

Husqvarna 532149777

Lens Grille Private Label

$

$

Not available

30

Husqvarna 532143050

Fender Pnt
(Superseded to 532166886)

$

$

Not available

31

Husqvarna 532139976

Bracket Pnt Support Fender

$17.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532147203

Footrest Pnt Lh

$

$

Not available

34

Husqvarna 532147202

Footrest Pnt Rh
(Superseded to 532145243)

$

$

Not available

35

Husqvarna 872110606

Bolt Rdhd Sht Sqnk 3/8-16 X3/4

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 5/16-18 X 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532139886

Bracket, Asm. Pivot, L.H., Mower Rear

$8.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532139887

Bracket, Asm. Pivot, R.H., Mower Rear

$

$

Not available

40

Husqvarna 532139977

Spacer Fender Lt

$

$

Not available

41

Husqvarna 532139978

Pate Extension Fender Lt
(Superseded to 532153764)

$12.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532138096

Rivet Push Plate D Plastic Blk

$

$

Not available

49

Husqvarna 817490412

Screw Hexwsh. Thdrol 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

50

Husqvarna 532142779

Brace

$

$

Not available

51

Husqvarna 873800400

Nut Lock Hex W/Ins 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

52

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532150067

Bracket Pnt. Pick Off LT/PL Husq

$

$

Not available

57

Husqvarna 874780412

Screw Hex 1/4-20 x 3/4
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

Air Duct P/L

$

$

Not available

60

Husqvarna 872140606

Bolt Carriage 3/8-16 x 3/4

$

$

Not available

61

Husqvarna 819171416

Washer 17/32 x 7/8 x 16 Ga.

$4.99

$

In Stock, Qty 8

0

68

UNKNOWN

$

$

Not available

129

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Ga.

$4.99

$

Usually ships in 3-10 days

0

134

Husqvarna 532150132

Rod Support Hood LT/PL Husq.

$7.99

$

Usually ships in 3-10 days

0

Husqvarna 532005479

Plug Button

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 532134014

Plug, Dome Black

$

$

Not available
