YT 150 (954820031-A) - Husqvarna Yard Tractor (1996-01) STEERING Parts Diagram

Yard Tractor

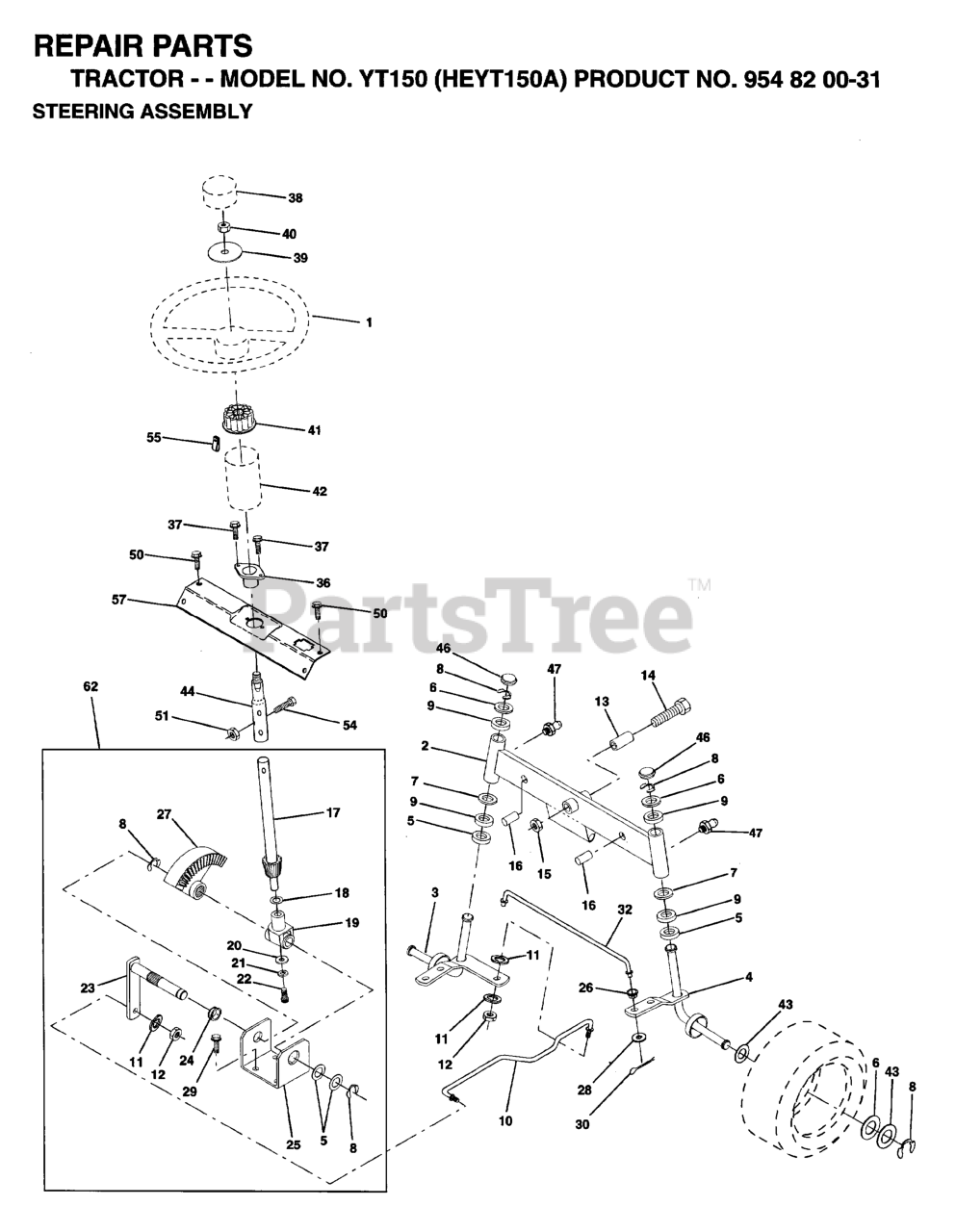

STEERING Parts Diagram

  • Title

40

Husqvarna 532124701

GRIPCO NUT
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532127501

SHAFT PITMAN
(Superseded to 532156365)

$

$

Not available

32

Husqvarna 532130465

TIE ROD
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

19

Husqvarna 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

6

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

4

Husqvarna 532135228

SPINDLE RH

$

$

Not available

44

Husqvarna 532146690

STEERING SHAFT
(Superseded to 532154307)

$42.99

$

Usually ships in 3-10 days

0

21

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

27

Husqvarna 532136874

GEAR.SECTOR

$80.99

$

In Stock, only 1 left!

0

13

Husqvarna 532110438

BEARING
(Superseded to 532155134)

$

$

Not available

1

Husqvarna 532124415

STEERING WHEEL

$

$

Not available

3

Husqvarna 532135227

SPINDLE LH

$

$

Not available

50

Husqvarna 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

20

Husqvarna 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

43

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 10

0

11

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

9

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

2

Husqvarna 532142033

AXLE ASSY

$

$

Not available

42

Husqvarna 532150390

BOOT, STEERING SHAFT

$

$

Not available

16

Husqvarna 532132624

AXLE PIN

$

$

Not available

37

Husqvarna 817431008

SCREW LT
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 8

0

25

Husqvarna 532124036

BRKT,STEERING

$

$

Not available

7

Husqvarna 819272016

WASHER

$6.49

$

In Stock, only 2 left!

0

51

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532140176

SHAFT STEERING
(Superseded to 532156546)

$49.99

$

In Stock, only 3 left!

0

55

Husqvarna 532140285

CLIP

$2.99

$

Usually ships in 3-10 days

0

14

Husqvarna 874011056

Bolt, Hex Head 5/8-11 x 3-1/2

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532149686

KIT, STEERING ASSEMBLY
(Superseded to 584371701)

$136.99

$

In Stock, only 1 left!

0

36

Husqvarna 532102803

BUSHING-STRG LT
(Superseded to 532155107)

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532130468

LINK.DRAG.SOL.BALL JT.20.064

$93.99

$

In Stock, only 1 left!

0

41

Husqvarna 532104820

ADAPTER-WHEEL LT

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532126847

BUSHING.DRAGLINK (2 2)

$5.99

$

In Stock, only 2 left!

0

57

Husqvarna 532140172

SUPPORT STEERING SHAFT

$

$

Not available

38

Husqvarna 532124416

INSERT,STR WHEEL

$

$

Not available

39

Husqvarna 819133808

WASHER T
(Superseded to 819133812)

$

$

Not available

54

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 871100410

SCREW
(Superseded to 871070410)

$6.49

$

In Stock, only 3 left!

0

12

Husqvarna 873610600

NUT
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 819131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

15

Husqvarna 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532109816

NYLINER T (7283A)

$6.49

$

In Stock, only 2 left!

0
