YT 150 (954170011-B) - Husqvarna Yard Tractor (1998-12) MOWER LIFT / DECK LIFT Parts Diagram

Yard Tractor

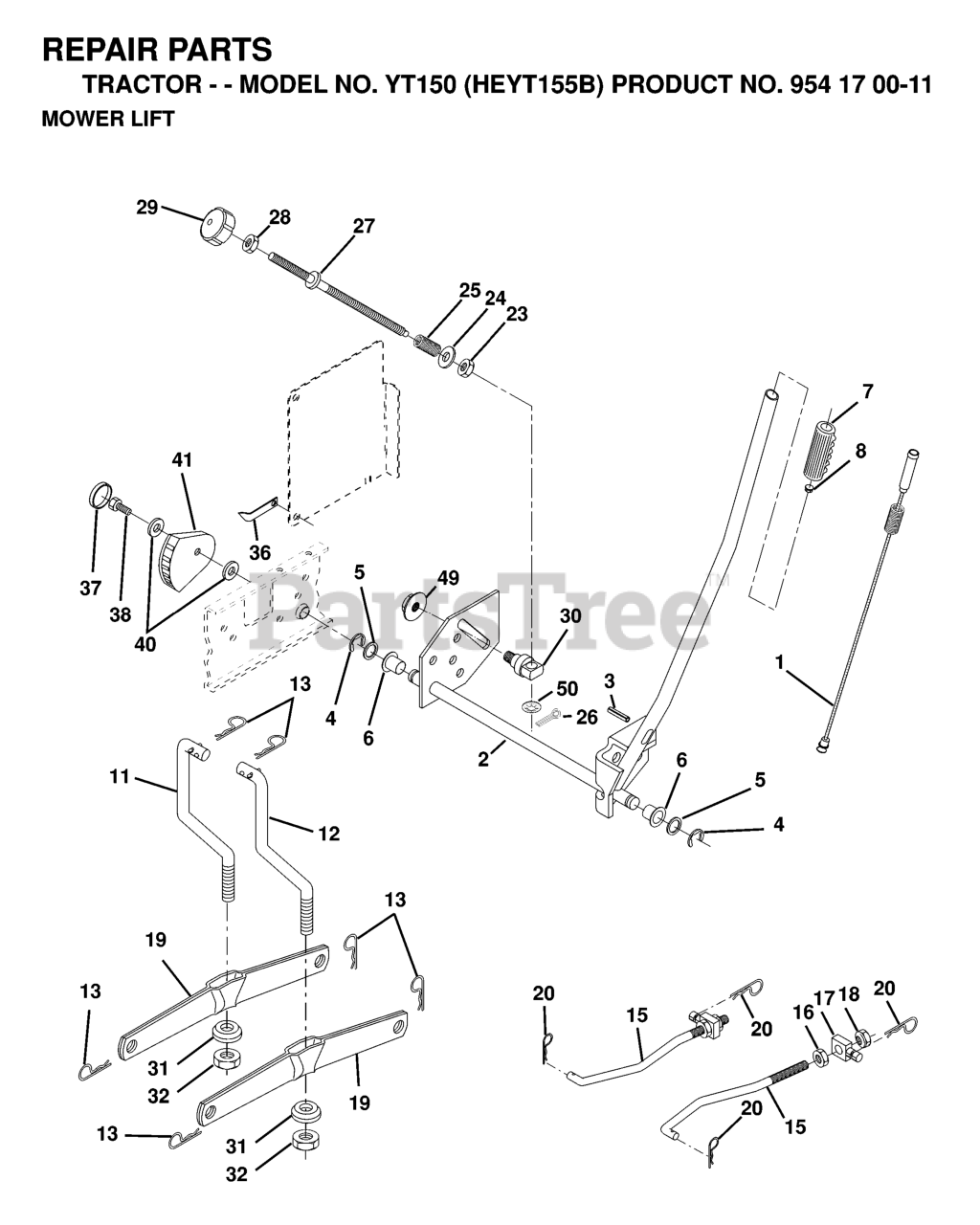

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
36

Husqvarna 532155097

POINTER, HEIGHT INDICATOR(2 2)

$

$

Not available

26

Husqvarna 876020308

COTTER PIN
(Superseded to 532003145)

$

$

Not available

16

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available

41

Husqvarna 532155098

IND. HEIGHT STLT

$6.49

$

Usually ships in 3-10 days

0

30

$12.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532159460

WIRE ASM INNER W/ PLUNGER LT

$26.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532127218

FRONT LINK

$17.99

$

In Stock, only 4 left!

0

2

Husqvarna 532159471

SHAFT ASM R HANDLE

$54.99

$

Usually ships in 3-10 days

0

32

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 2 left!

0

31

Husqvarna 532140302

BEARING PIVOT
(Superseded to 532169865)

$

$

Not available

20

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532126971

ROD ADJ LIFT

$

$

Not available

50

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

$6.49

$

In Stock, Qty 5

0

12

Husqvarna 532139866

LINK LIFT RH
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

4

Husqvarna 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

37

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532125631

GRIP HANDLE

$7.99

$

In Stock, only 1 left!

0

6

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

11

Husqvarna 532139865

LINK LIFT LH
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

17

Husqvarna 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

29

Husqvarna 532138057

KNOB INF 3/8-16

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532105767

PIN GROOVE.

$6.49

$

In Stock, only 3 left!

0

13

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available
