YT 150 (954170011-B) - Husqvarna Yard Tractor (1998-12) DRIVE Parts Diagram

Yard Tractor

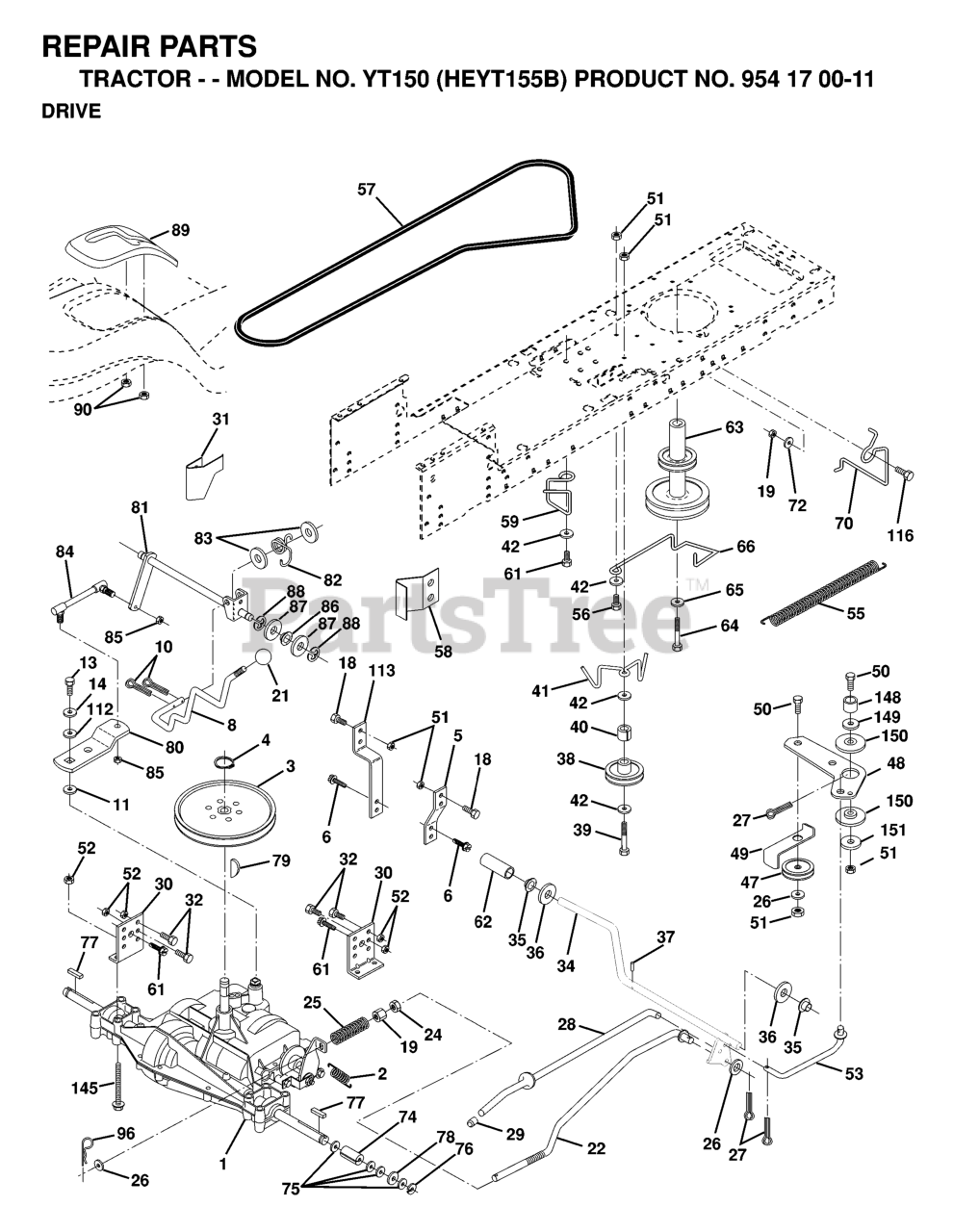

DRIVE Parts Diagram

  • Title
19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532150360

NUT LOCK CENTER 1/4 -28 FNTHD

$

$

Not available

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

22

$31.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532154777

KEEPER, BELT IDLER
(Superseded to 532165838)

$

$

Not available

6

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 2 left!

0

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

79

Husqvarna 532125096

KEY STD (1373) DANA

$9.49

$

In Stock, only 1 left!

0

13

Husqvarna 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532123666

PULLEY TRANS

$45.99

$

In Stock, only 1 left!

0

4

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 8

0

38

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 1 left!

0

36

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 871170764

BOLT
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

87

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532121520

STRAP TORQUE

$7.99

$

In Stock, only 3 left!

0

86

$3.99

$

Usually ships in 3-10 days

0

80

$7.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532145204

ROD BRAKE PARK LT

$

$

Not available

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

61

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

88

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

$

$

Not available

70

Husqvarna 532134683

KEEPER BELT ENG

$

$

Not available

89

$42.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532155071

SHAFT, FOOT PEDAL

$

$

Not available

63

Husqvarna 532140186

PULLEY.ENG.CL.MECH.SLVR.LT/YT

$113.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

$31.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532145643

ROD TIE 20"

$

$

Not available

72

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 2 left!

0

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

30

Husqvarna 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

116

Husqvarna 872110610

BOLT
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

149

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

51

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532124346

NUT.PUSH.3/16

$7.99

$

In Stock, only 1 left!

0

113

Husqvarna 532127285

STRAP TORQUE LH LT

$

$

Not available

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

112

$6.99

$

Usually ships in 3-10 days

0

$

$

Not available

$4.99

$

In Stock, Qty 20+

0

150

Husqvarna 532150935

BUSHING NYLON COLLERED

$

$

Not available

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

82

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

8

Husqvarna 532154792

ROD SHIFT FENDER

$12.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

$4.99

$

Usually ships in 3-10 days

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

59

Husqvarna 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

40

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

31

Husqvarna 532127275

KEEPER BELT LH

$

$

Not available

76

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0
