YT 140 H (954000151-B) - Husqvarna Yard Tractor (1991-01) Steering And Front Axle (Part 1) Parts Diagram

Yard Tractor

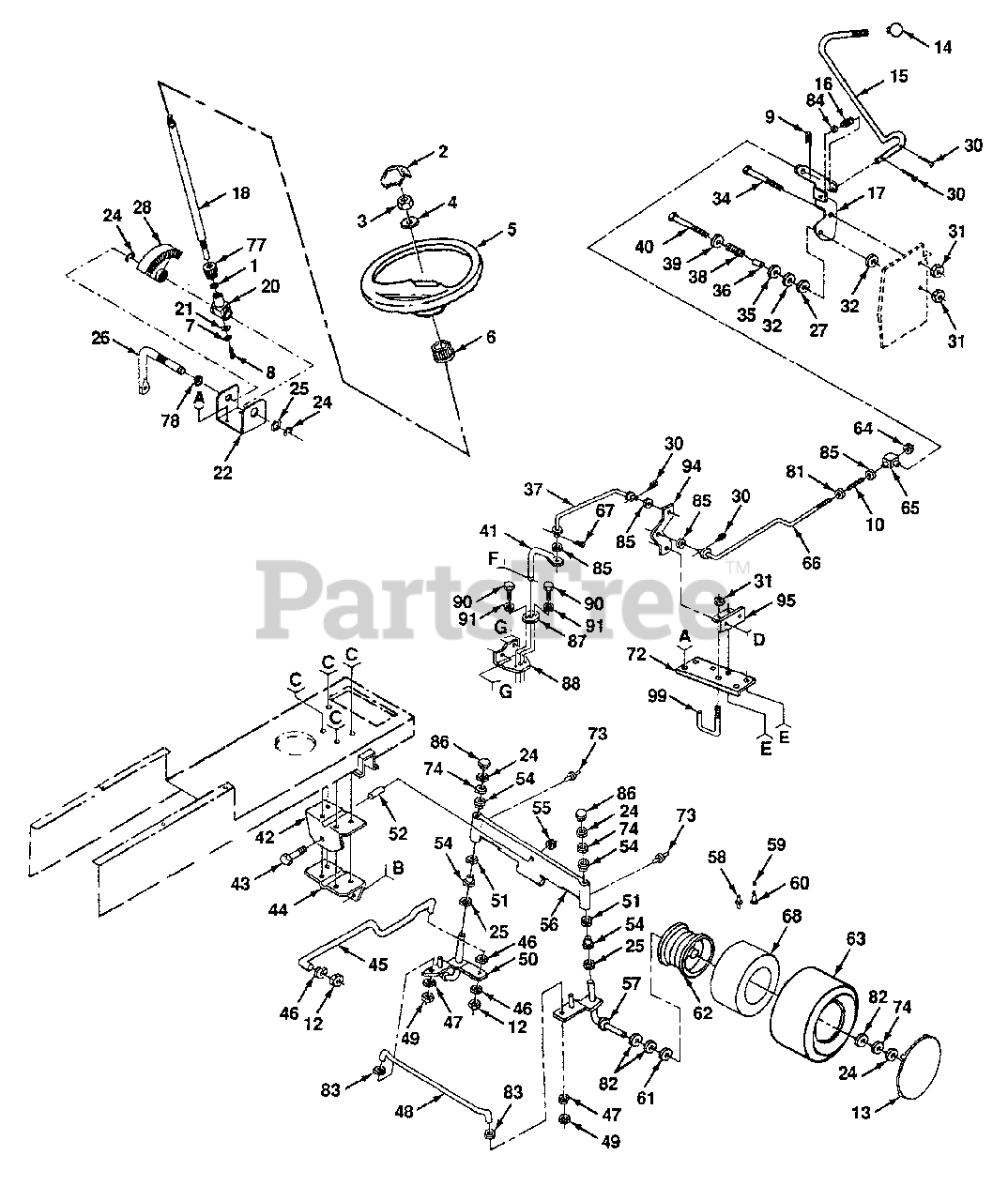

Steering And Front Axle (Part 1) Parts Diagram

  • Title

1

Husqvarna 532057079

Washer

$6.49

$

In Stock, Qty 10

0

2

Husqvarna 532124416

Insert, Steering Wheel

$

$

Not available

3

Husqvarna 873940800

Nut, Jam, Toplock 1/2 - 20

$7.49

$

In Stock, only 4 left!

0

4

Husqvarna 532100712

Washer

$

$

Not available

5

Husqvarna 532124415

Wheel, Steering

$

$

Not available

6

Husqvarna 532100711

Adapter, Steering Wheel
(Superseded to 587738905)

$9.49

$

In Stock, Qty 6

0

7

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 871070410

Screw, Socket, Hex 1/4 - 20 x 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 3 left!

0

9

Husqvarna 532004921

Spring, Retainer

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 532102670

Spring, Compression

$

$

Not available

12

Husqvarna 873610600

Nut, Fin, Hex 3/8 - 24 UNF
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532124577

Cover, Wheel

$

$

Not available

14

Husqvarna 532121274

Knob, Gearshift

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110845

Rod, Control

$8.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532121631

Spring, Torsion

$

$

Not available

17

Husqvarna 532108196

Bracket, Control Rod

$

$

Not available

18

Husqvarna 532124043

Shaft, Steering
(Superseded to 532156544)

$91.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532124035

Support, Shaft
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

21

Husqvarna 532126684

Washer, Shim 1/4 x 5/8 x .062
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532124036

Bracket, Steering

$

$

Not available

24

Husqvarna 812000029

Klip Ring

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

26

Husqvarna 532124033

Shaft, Pitman
(Superseded to 532156365)

$

$

Not available

27

Husqvarna 532108972

Washer, Phenolic

$

$

Not available

28

Husqvarna 532124034

Gear, Sector
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

30

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

31

Husqvarna 873680600

Nut, Crownlock 3/8 - 16

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532108200

Washer, Friction

$

$

Not available

34

Husqvarna 532108518

Bolt, Hex, Shoulder 3/8 - 16 x 1-3/8

$

$

Not available

35

Husqvarna 819212016

Washer 21/32 x 1-1/4 x 16 Gauge

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532108201

Spacer

$

$

Not available

37

Husqvarna 532121202

Link, Control, Pump

$

$

Not available

38

Husqvarna 532108844

Spring, Compression

$

$

Not available

39

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Gauge
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 874760648

Bolt, Hex 3/8 - 16 x 3
(Superseded to 874780648)

$

$

Not available

41

Husqvarna 532121209

Lever, Pump Control

$

$

Not available

42

Husqvarna 532105663

Support, Saddle, Rear

$

$

Not available

43

Husqvarna 874761060

Bolt, Hex 5/8 - 11 x 3-3/4

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532105664

Support, Saddle, Front

$9.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532124032

Link, Drag
(Superseded to 532130468)

$93.99

$

In Stock, only 1 left!

0

46

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

47

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

48

Husqvarna 532121334

Rod, Tie
(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

49

Husqvarna 873810500

Nut, Hex 5/16 - 24 UNF
(Superseded to 873610500)

$

$

Not available

50

Husqvarna 532105656

Spindle, L.H.
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

51

Husqvarna 819272016

Washer 27/32 x 1-1/4 x 16 Gauge

$6.49

$

In Stock, only 2 left!

0

52

Husqvarna 532110438

Spacer, Bearing
(Superseded to 532155134)

$

$

Not available

54

Husqvarna 532003366

Bearing

$4.99

$

In Stock, Qty 19

0

55

Husqvarna 873901000

Locknut, Flange 5/8 - 11
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532108075

Axle, Front

$

$

Not available

57

Husqvarna 532105654

Spindle, R.H.
(Superseded to 532130524)

$

$

Not available

58

Husqvarna 532000278

Fitting, Grease

$6.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532065139

Stem, Valve

$9.99

$

In Stock, only 1 left!

0

60

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

61

Husqvarna 532009040

Bearing

$7.99

$

In Stock, Qty 20+

0

62

Husqvarna 532124801

Rim, Front, 6"
(Superseded to 532106732)

$91.99

$

In Stock, only 4 left!

0

63

Husqvarna 532106222

Tire, Front
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

64

Husqvarna 873800600

Locknut, Hex w/Washer Insert 3/8 - 16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532108212

Trunnion

$18.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532121750

Rod, Control, Adjustable

$47.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

68

Husqvarna 532059904

Tube

Note: (Not furnished with tractor)

$37.99

$

In Stock, Qty 7

0

72

Husqvarna 532123186

Bracket, Chassis, Reinforcement, Hydro

$

$

Not available

73

Husqvarna 532124836

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

74

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Gauge

$4.99

$

In Stock, Qty 20+

0

77

Husqvarna 532124037

Gear, Pinion

$

$

Not available

78

Husqvarna 532109816

Nyliner, Snap-In

$6.49

$

In Stock, only 2 left!

0

81

Husqvarna 819131212

Washer 13/32 x 3/4 x 12 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

Usually ships in 3-10 days

0

83

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Gauge
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

84

Husqvarna 819151516

Washer 15/32 x 15/16 x 16 Gauge

$

$

Not available

85

Husqvarna 532110739

Washer, Spring

$4.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 8

0

87

Husqvarna 532121217

Guide, Control

$

$

Not available

88

Husqvarna 532121216

Bracket, Control Guide

$

$

Not available

90

Husqvarna 817021008

Screw, Tap, Hex #10-24 UNC x 1/2

$4.99

$

In Stock, Qty 14

0

91

Husqvarna 819070816

Washer 7/32 x 1/2 x 16 Gauge

$6.99

$

In Stock, only 1 left!

0

94

Husqvarna 532121204

Bellcrank

$

$

Not available

95

Husqvarna 532121206

Bracket, Bellcrank Pivot

$

$

Not available

99

Husqvarna 532121190

Keeper, Centerspan

$

$

Not available
