YT 140 H (954000151-B) - Husqvarna Yard Tractor (1991-01) Drive (Part 1) Parts Diagram

Yard Tractor

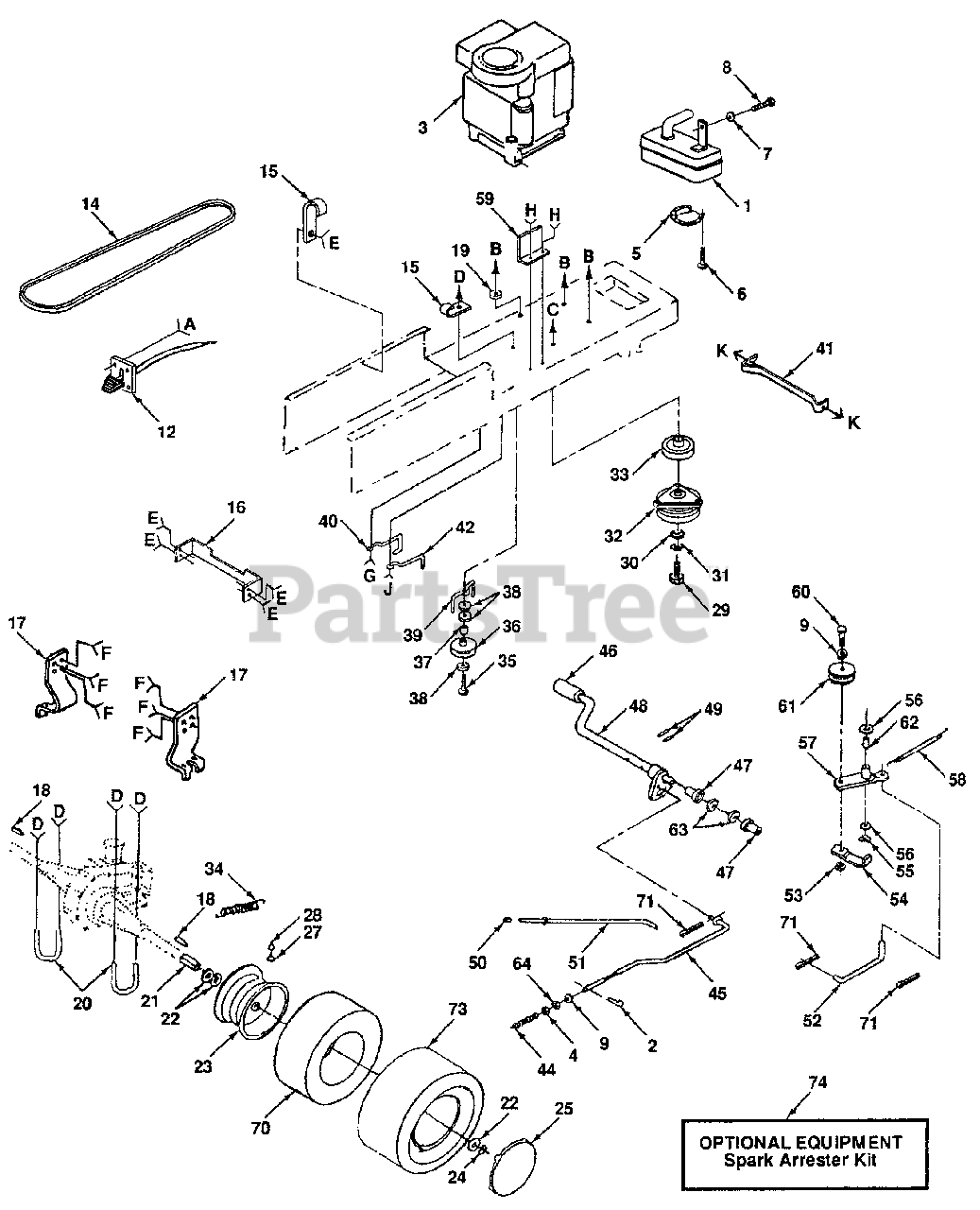

Drive (Part 1) Parts Diagram

  • Title

1

Husqvarna 532123816

Muffler
(Superseded to 532125799)

$

$

Not available

2

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

3

Husqvarna 532123818

Engine, 14 H.P. Kawasaki

Note: Model Number FC420V-AS08

$

$

Currently unavailable

4

Husqvarna 873350600

Nut, Jam, Hex 3/8 - 16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

5

Husqvarna 532101326

Deflector, Exhaust

$

$

Not available

6

Husqvarna 817030808

Screw, Spider Lock #8 x 1 /2
(Superseded to 817030814)

$

$

Not available

7

Husqvarna 819090816

Washer 9/32 x 1/2 x 16 Gauge
(Superseded to 734115301)

$2.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124128

Bolt, Hex M6 x 1 x 12mm

$

$

Not available

9

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532121527

Control, Throttle/Choke
(Superseded to 532132765)

$

$

Not available

14

Husqvarna 532123461

V-Belt, Drive

$

$

Not available

15

Husqvarna 532124996

Clip, Insulated
(Superseded to 532002751)

$

$

Not available

16

Husqvarna 532121187

Bracket, Mounting, Hydro T/A

$

$

Not available

17

Husqvarna 532126649

Bracket, Transaxle

$

$

Not available

18

Husqvarna 532123583

Key, Square 1 /4 x 2

$4.99

$

In Stock, only 4 left!

0

19

Husqvarna 810040500

Washer, Lock, Hvy. Helical Spring
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 532121189

U-Bolt 3/8 - 16 x 2.83

$

$

Not available

21

Husqvarna 532121199

Spacer, Split

$

$

Not available

22

Husqvarna 532121748

Washer 1-1/32 x 1-5/8 x 16 Gauge

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532124723

Rim, Rear 8"
(Superseded to 532106108)

$145.99

$

Usually ships in 3-10 days

0

24

Husqvarna 812000001

E-Ring

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532124578

Cover, Wheel 8"

$

$

Not available

27

Husqvarna 532065139

Stem, Valve

$9.99

$

In Stock, only 1 left!

0

28

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

29

Husqvarna 532125005

Bolt, Fin M10 x 1.5 x 100mm
(Superseded to 747810100)

$

$

Not available

30

Husqvarna 532126197

Washer 15/32 ID x 1-1/2 OD x .250

$8.99

$

In Stock, only 3 left!

0

31

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

32

Husqvarna 532108218

Clutch, Electric
(Superseded to 532142600)

$

$

Not available

33

Husqvarna 532109841

Pulley, Engine
(Superseded to 532140189)

$42.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532110422

Spring, Brake Return
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

35

Husqvarna 874760644

Bolt, Hex 3/8 - 16 x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532004859

Idler, Flat
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

37

Husqvarna 532004470

Spacer
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532109070

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532121218

Keeper, Belt, Engine, L.H.

$

$

Not available

41

Husqvarna 532109169

Retainer, Clutch Assembly
(Superseded to 532109172)

$

$

Not available

42

Husqvarna 532105730

Keeper, Belt, Engine, R.H.

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532106888

Spring, Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

45

Husqvarna 532121200

Rod, Brake
(Superseded to 532132654)

$

$

Not available

46

Husqvarna 532123533

Cover, Pedal

$6.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, only 3 left!

0

48

Husqvarna 532122424

Shaft, Assembly, Foot Pedal

$

$

Not available

49

Husqvarna 532001572

Pin, Roll 3/16 x 1

$4.99

$

In Stock, Qty 7

0

50

Husqvarna 532124236

Cap, Plunger
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532125637

Rod, Brake, Park
(Superseded to 532133261)

$

$

Not available

52

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

53

Husqvarna 873680600

Nut, Crownlock 3/8 - 16

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 812000039

Klip Ring

$6.49

$

In Stock, Qty 7

0

56

Husqvarna 532110812

Washer, Hardened

$

$

Not available

57

Husqvarna 532123789

Arm Assembly, Idler

$

$

Not available

58

Husqvarna 532105709

Spring, Return, Clutch

$11.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532108236

Bracket, Switch

$2.99

$

Usually ships in 3-10 days

0

60

Husqvarna 874760624

Bolt, Hex 3/8 - 16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532106298

Pulley, Idler
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

62

Husqvarna 532105706

Bearing

$7.49

$

Usually ships in 3-10 days

0

63

Husqvarna 819211616

Washer 21/32 x 1 x 16 Gauge

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 873800600

Locknut, Hex w/Washer Insert 3/8 - 16 UNC ZN
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532124926

Tube
(Superseded to 532007152)

Note: (Not furnished with tractor)

$74.99

$

Usually ships in 3-10 days

0

71

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

73

Husqvarna 532106268

Tire, Rear
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532121851

Spark Arrester Kit

$

$

Not available
