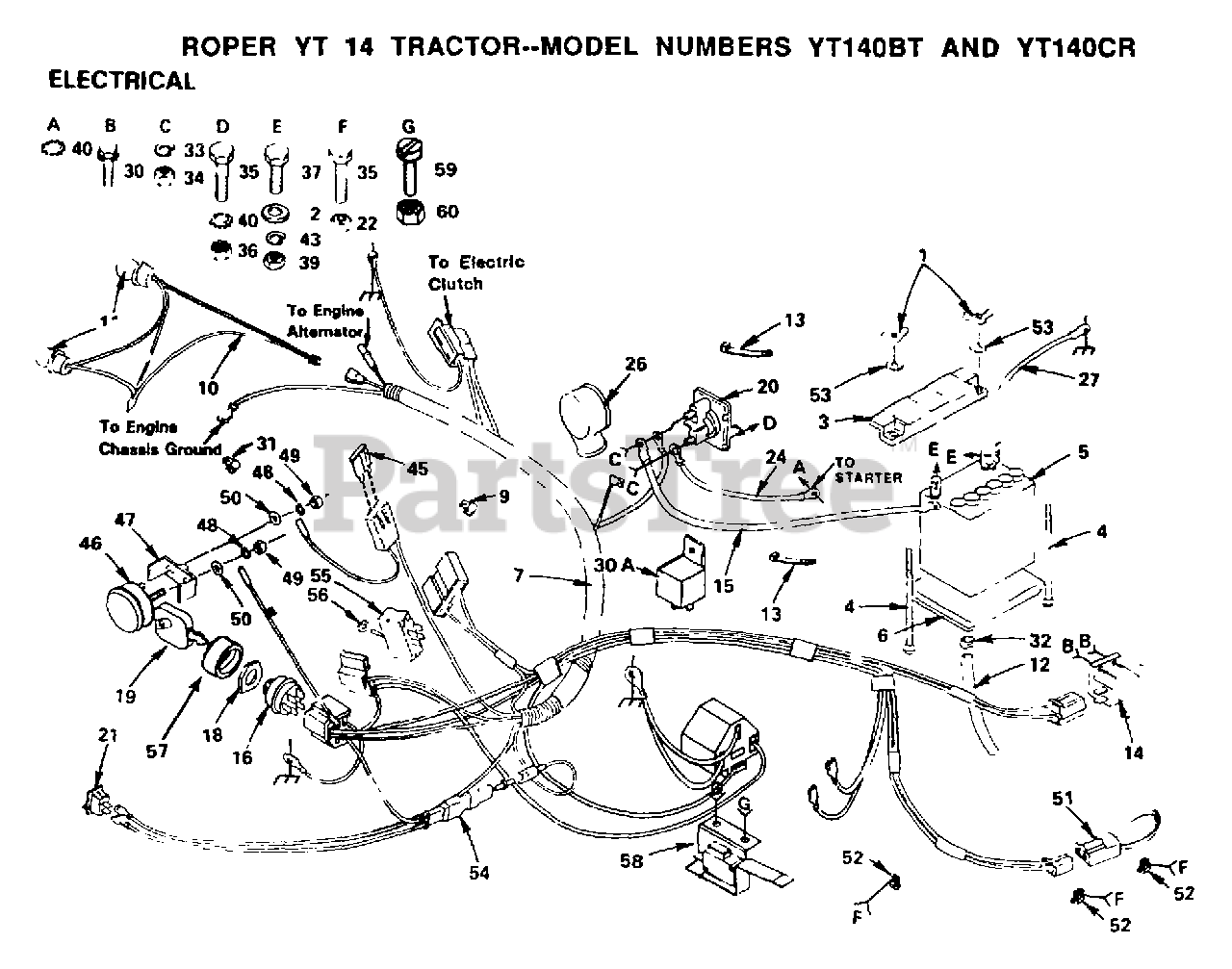

YT 140 CR - Electrolux/AYP Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

$

$

Not available

2

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 102476X

SUB= 150109
(Superseded to 532102476)

$

$

Not available

4

Electrolux/AYP 72240460

BOLT
(Superseded to 872240460)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 227J

SUB= 123899X

$

$

Not available

5

Electrolux/AYP 227J

SUB= 123899X

$

$

Not available

6

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

7

$

$

Not available

$

$

Not available

10

Electrolux/AYP 110859X

HARNESS T
(Superseded to 532110859)

$

$

Not available

11

Electrolux/AYP 7662J

SUB= 4152J
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

12

$

$

Not available

13

Electrolux/AYP 7192J

WIRE TIE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 104445X

SWITCH-INTER. GT
(Superseded to 532104445)

$17.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 4206J

CABLE-BATTERY T
(Superseded to 185464)

$

$

Not available

16

Electrolux/AYP 4406R

SUB= STD365402

$

$

Not available

18

Electrolux/AYP 109788X

SUB= 124211X

$

$

Not available

19

$

$

Not available

20

$

$

Not available

21

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, only 3 left!

0

22

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

24

$

$

Not available

26

Electrolux/AYP 719J

SUB= 154336

$

$

Not available

27

Electrolux/AYP 4207J

CABLE T
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

30A

Electrolux/AYP 109748X

RELAY ASSY T
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

32

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

34

Electrolux/AYP 73350400

NUT
(Superseded to 873350400)

$

$

Not available

35

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

36

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

37

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

39

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

40

$2.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

45

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 9433R

AMMETER T
(Superseded to 532124900)

$45.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 6009J

SUB= 532131708
(Superseded to 532124901)

$

$

Not available

48

Electrolux/AYP 10101000

SUB= 10071000

$

$

Not available

$

$

Not available

50

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 102501X

SUB= 141940
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 235R

CLIPT
(Superseded to 583730001)

$2.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 11030400

LOCKWASHER GT

$2.49

$

Usually ships in 3-10 days

0

54

$

$

Not available

55

Electrolux/AYP 4021J

SWITCH.PTO.T
(Superseded to 532407863)

$43.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 4022J

HEX NUT T
(Superseded to 532004022)

$

$

Not available

57

$

$

Not available

$

$

Not available

59

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

60

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 101539X

SHEET INSTR LT
(Superseded to 532101539)

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 120225X

OWNER'S MANUAL (FRENCH)

$3.49

$

Usually ships in 3-10 days

0
