YT 140 BR - Electrolux/AYP Lawn Tractor TRANSAXLE Parts Diagram

Lawn Tractor

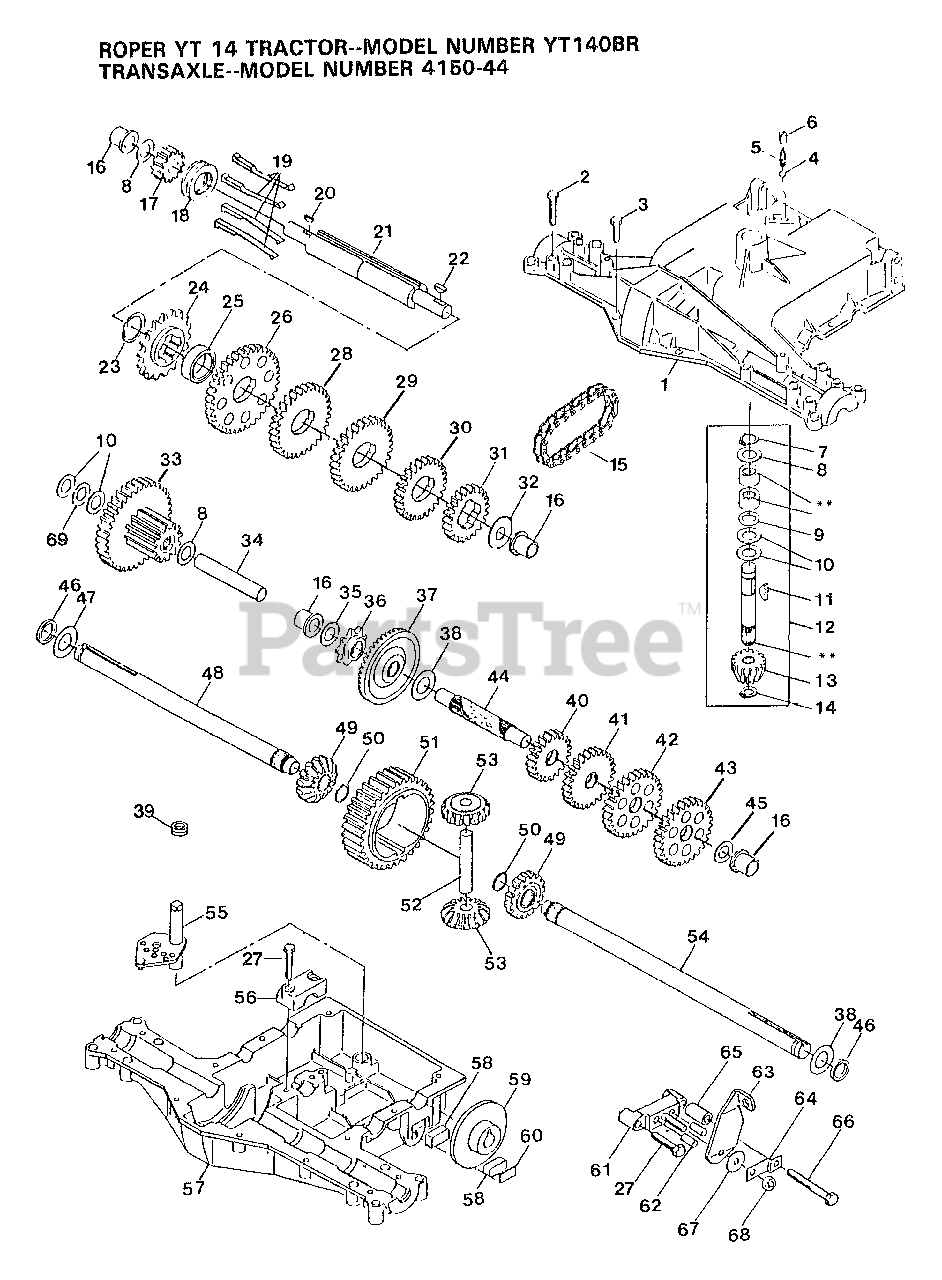

TRANSAXLE Parts Diagram

  • Title

1

Electrolux/AYP 3655-B

HOUSING, UPPER

$

$

Not available

2

Electrolux/AYP 1360

SCREW 1/4-20 X 1.31

$

$

Not available

3

Electrolux/AYP 3396

SCREW 1/4-20 X .875

$

$

Not available

4

Electrolux/AYP 1151

BALL DETENT

$

$

Not available

5

Electrolux/AYP 3626

SPRING, DETENT

$

$

Not available

6

Electrolux/AYP 3623

SCREW, SET

$

$

Not available

7

Electrolux/AYP 1099

RING RETAINING

$

$

Not available

8

Electrolux/AYP 1441

WASHER PLAIN

$

$

Not available

8

Electrolux/AYP 1423

WASHER, PLAIN .632 X 1.00 X .026

$

$

Not available

8

Electrolux/AYP 1082

WASHER PLAIN

$

$

Not available

8

Electrolux/AYP 1424

WASHER PLAIN

$

$

Not available

8

Electrolux/AYP 1068

WASHER PLAIN

$

$

Not available

8

Electrolux/AYP 1425

WASHER PLAIN

$

$

Not available

8

Electrolux/AYP 1358

WASHER PLAIN

$

$

Not available

8

Electrolux/AYP 1145

WASHER, PLAIN .632 X 1.00 X .060

$

$

Not available

8

Electrolux/AYP 1319

WASHER PLAIN

$

$

Not available

9

Electrolux/AYP 3312

O-RING

$

$

Not available

10

Electrolux/AYP 1425

WASHER PLAIN

$

$

Not available

11

Electrolux/AYP 1374

KEY WOODRUFF #9

$

$

Not available

12

Electrolux/AYP 4171

ASSY KIT INPUT SHAFT

$

$

Not available

13

Electrolux/AYP 3725

PINION BEVEL 14 TEETH

$

$

Not available

14

Electrolux/AYP 3624

RING, RETAINING

$

$

Not available

15

Electrolux/AYP 3625

CHAIN, 24 PITCHES

$

$

Not available

16

Electrolux/AYP 1542

BEARING, FLANGE

$

$

Not available

17

Electrolux/AYP 3709

GEAR, SPUR 14T

$

$

Not available

18

Electrolux/AYP 3631

COLLAR CLUTCH

$

$

Not available

19

Electrolux/AYP 3676

KEY, CLUTCH

$

$

Not available

20

Electrolux/AYP 1369

KEY WOODRUFF #3

$

$

Not available

21

Electrolux/AYP 3739

SHAFT, INTERMEDIATE

$

$

Not available

22

Electrolux/AYP 1375

KEY, WOODRUFF, #61

$

$

Not available

23

Electrolux/AYP 3627

RING, RETAINING

$

$

Not available

24

Electrolux/AYP 3640

SPROCKET, 18T

$

$

Not available

25

Electrolux/AYP 3841

SPACER

$

$

Not available

26

Electrolux/AYP 3787

GEAR, SPUR 40T

$

$

Not available

27

Electrolux/AYP 3724

SCREW TAPPING

$

$

Not available

28

Electrolux/AYP 3785

GEAR, SPUR, 35 TEETH

$

$

Not available

29

Electrolux/AYP 3784

GEAR, SPUR 30T

$

$

Not available

30

Electrolux/AYP 3783

GEAR, SPUR, 25 TEETH

$

$

Not available

31

Electrolux/AYP 3741

GEAR SPUR

$

$

Not available

32

Electrolux/AYP 3628

WASHER, PLAIN .640 X 1.37 X .061

$

$

Not available

33

Electrolux/AYP 4193

ASSY, GEAR, COMB., 12T & 35T

$

$

Not available

34

Electrolux/AYP 3658

SHAFT, IDLER

$

$

Not available

35

Electrolux/AYP 1959

WASHER PLAIN

$

$

Not available

36

Electrolux/AYP 3645

SPROCKET, 9 TEETH

$

$

Not available

37

CHECK WITH SUPPLIER

$

$

Not available

38

Electrolux/AYP 3749

WASHER PLAIN

$

$

Not available

38

Electrolux/AYP 3652

WASHER PLAIN

$

$

Not available

38

Electrolux/AYP 3693

WASHER PLAIN

$

$

Not available

38

Electrolux/AYP 3653

WASHER PLAIN

$

$

Not available

38

Electrolux/AYP 3408

WASHER PLAIN

$

$

Not available

38

Electrolux/AYP 3732

WASHER PLAIN

$

$

Not available

38

Electrolux/AYP 3184

WASHER, PLAIN .758 X 1.25 X .031

$

$

Not available

38

Electrolux/AYP 3733

WASHER PLAIN

$

$

Not available

38

Electrolux/AYP 3198

WASHER PLAIN

$

$

Not available

38

Electrolux/AYP 3734

WASHER PLAIN

$

$

Not available

38

Electrolux/AYP 3735

WASHER PLAIN

$

$

Not available

38

Electrolux/AYP 3736

WASHER PLAIN

$

$

Not available

38

Electrolux/AYP 3180

WASHER PLAIN

$

$

Not available

39

Electrolux/AYP 3789

V-RING

$

$

Not available

40

Electrolux/AYP 3707

GEAR SPUR, 15 TEETH

$

$

Not available

41

Electrolux/AYP 3637

GEAR, SPUR 20T

$

$

Not available

42

Electrolux/AYP 3719

GEAR, SPUR, 25 TEETH

$

$

Not available

43

Electrolux/AYP 3683

GEAR, SPUR, 31 TEETH

$

$

Not available

44

Electrolux/AYP 3713

SHAFT, DRIVE

$

$

Not available

45

Electrolux/AYP 1145

WASHER, PLAIN .632 X 1.00 X .060

$

$

Not available

46

Electrolux/AYP 3191

SEAL FELT

$

$

Not available

47

Electrolux/AYP 3184

WASHER, PLAIN .758 X 1.25 X .031

$

$

Not available

48

Electrolux/AYP 3666

AXLE

$

$

Not available

49

Electrolux/AYP 3727

GEAR, MITER 15T

$

$

Not available

50

Electrolux/AYP 3656

RING, RETAINING

$

$

Not available

51

Electrolux/AYP 3839

GEAR, SPUR, 32 TEETH

$

$

Not available

52

Electrolux/AYP 3840

SHAFT, CROSS

$

$

Not available

53

Electrolux/AYP 3726

GEAR, MITER, 15 TEETH

$

$

Not available

54

Electrolux/AYP 3667

AXLE

$

$

Not available

55

Electrolux/AYP 4216

ASSY, SHIFTER & SEAL

$

$

Not available

56

Electrolux/AYP 3775

CAP, SUPPORT

$

$

Not available

57

Electrolux/AYP 3654-B

HOUSING, LOWER

$

$

Not available

58

Electrolux/AYP 3757

PUCK, FRICTION

$

$

Not available

59

Electrolux/AYP 3276

DISC, BRAKE

$

$

Not available

60

Electrolux/AYP 3758

SPACER

$

$

Not available

61

Electrolux/AYP 4282

ASSY, JAW, BRAKE

$

$

Not available

62

Electrolux/AYP 3754

PIN, DOWEL

$

$

Not available

63

Electrolux/AYP 3768

LEVER, ACTUATING

$

$

Not available

64

Electrolux/AYP 3842

BRKT, ANTI-ROTATION

$

$

Not available

65

Electrolux/AYP 3752

SPACER

$

$

Not available

66

Electrolux/AYP 3771

SCREW 5/16-18 X 2.50

$

$

Not available

67

Electrolux/AYP 3760

WASHER, PLAIN .321 X 1.00 X .055

$

$

Not available

68

Electrolux/AYP 3847

LOCKNUT 5/16-24

$

$

Not available

69

Electrolux/AYP 3422

SPACER .630 X 1.00 X .169

$

$

Not available
